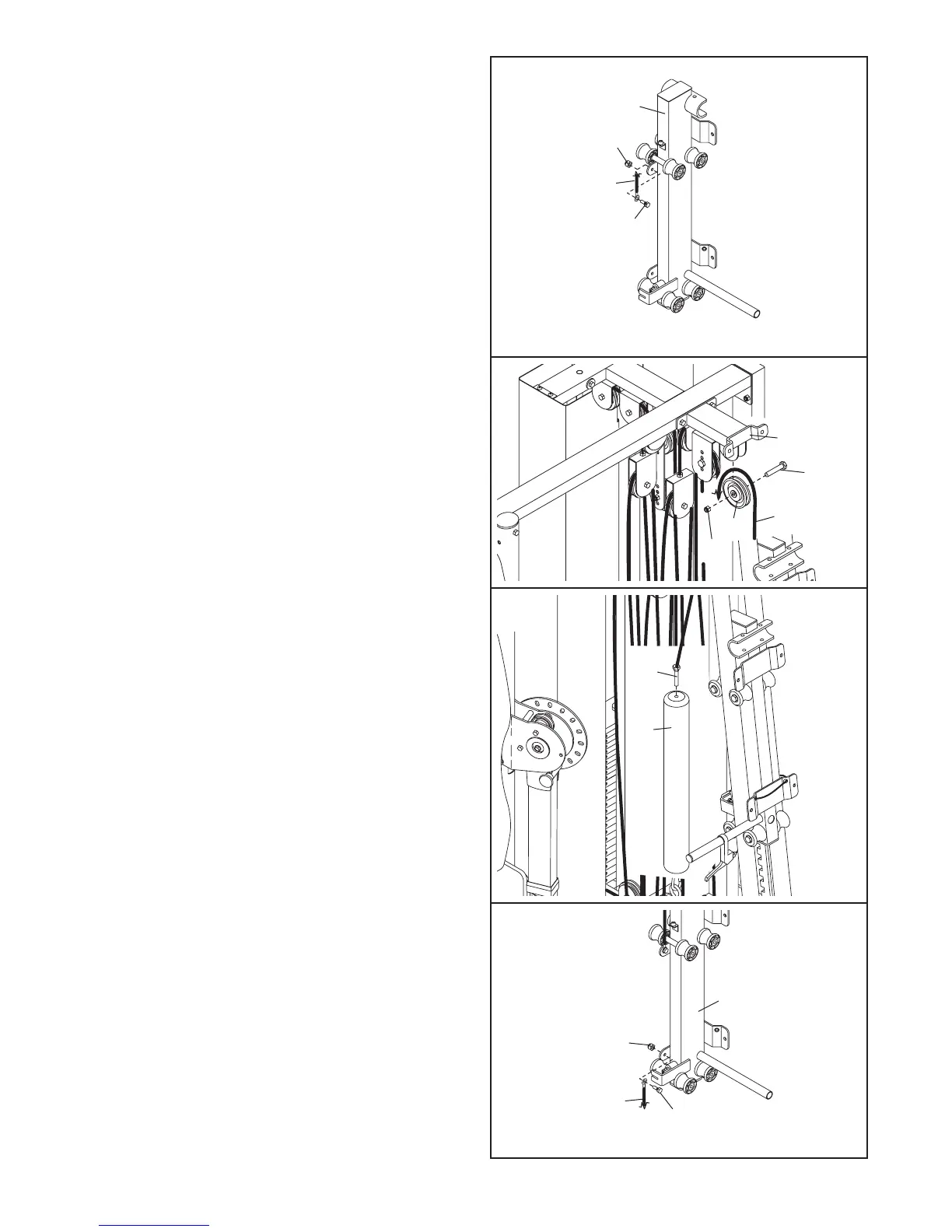

12. For clarity, the Hack Squat Backrest Frame (8)
is shown from the rear and separate.
Locate the Short Cable (31). Attach the Cable to
the Hack Squat Backrest Frame (8) with an M8 x
19mm Shoulder Bolt (46) and an M8 Nylon
Locknut (52).
15. For clarity, the Hack Squat Backrest Frame (8)
is shown from the rear and separate.
Locate the Medium Cable (30). Attach the Cable
to the Hack Squat Backrest Frame (8) with an M8
x 19mm Shoulder Bolt (46) and an M8 Nylon
Locknut (52).
12
13. Wrap the Short Cable (31) over a 3 1/2” Pulley
(27). Attach the Pulley to the indicated bracket on
the Hack Squat Top Frame (6) with an M10 x
46mm Button Head Bolt (40) and an M10 Nylon
Locknut (51).
13
14. Have a second person hold the Counterweight
(10). Thread the Short Cable (31) halfway into
one end of the Counterweight.
14
15
31
52
46
8
51
6
31
27
40
31
10
30
52
46
8
