16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
onthetreadmilldecals,removetheplastic.Toprotecttheoororcarpet,placeamatunderthetreadmill.
Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used to
adjust the walking belt (see pages 26 and 27).

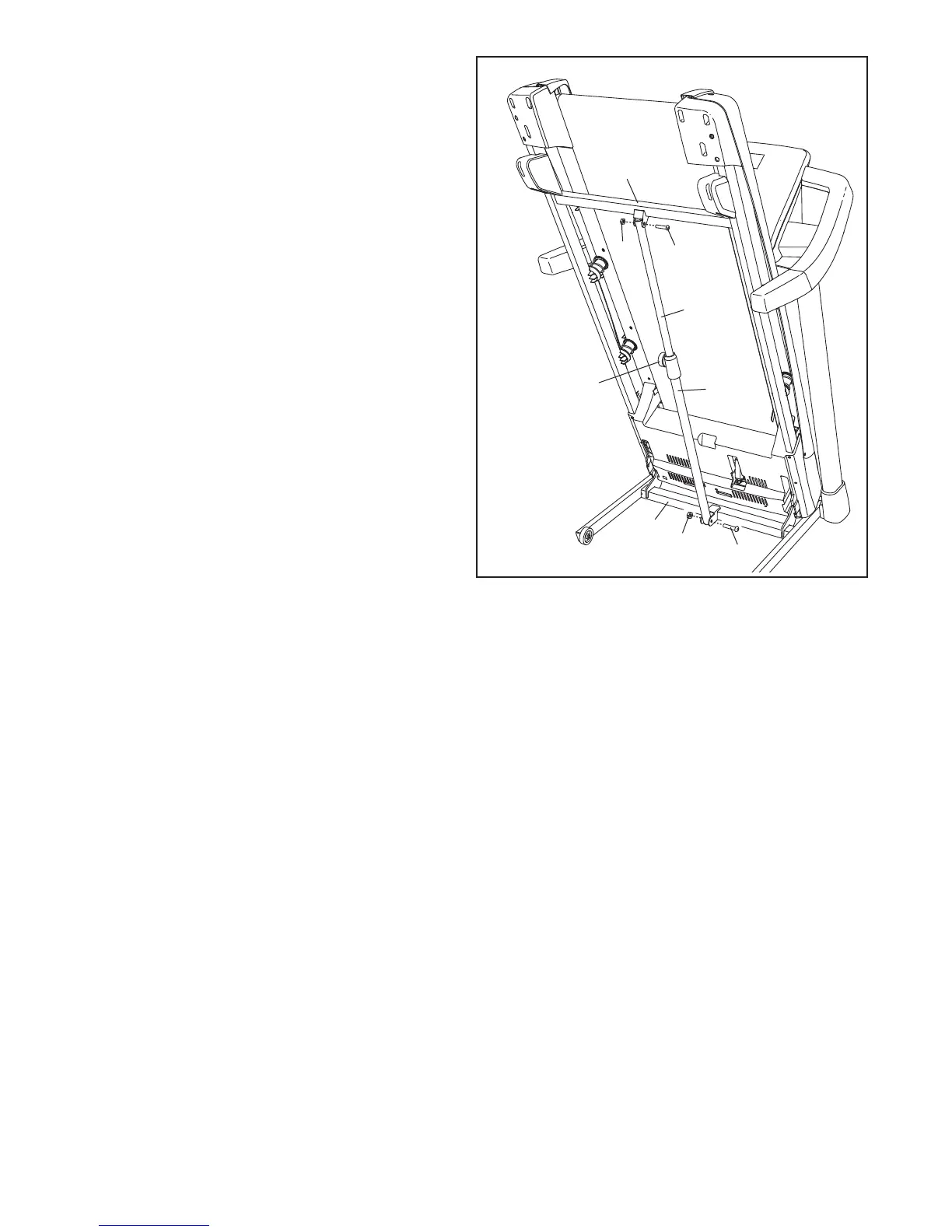

15. Raise the Frame (57) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (54) so that the large
barrel and the latch knob are oriented as shown.
Remove any ties from the end of the Storage
Latch (54). Attach the lower end of the Storage
Latch to the Base (29) with a 3/8" x 2" Bolt (2)
and a 3/8" Nut (9).
Attach the upper end of the Storage Latch (54)
to the Frame (57) with a 3/8" x 2" Bolt (2) and a
3/8" Nut (9).
15
57
54
9
2
Large
Barrel
Latch
Knob
2
9
29
To Next Page
