• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materialsuntilyounishallassemblysteps.
• The underside of the walking belt is coated with
high-performance lubricant. After shipping, there
may be some lubricant on top of the walking belt
or on the shipping carton. This is normal. If there
is lubricant on top of the walking belt, wipe it off
with a soft cloth and a mild, non-abrasive cleaner.
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one adjustable wrench
one Phillips screwdriver
scissors
needlenose pliers
To avoid damaging parts, do not use power tools.

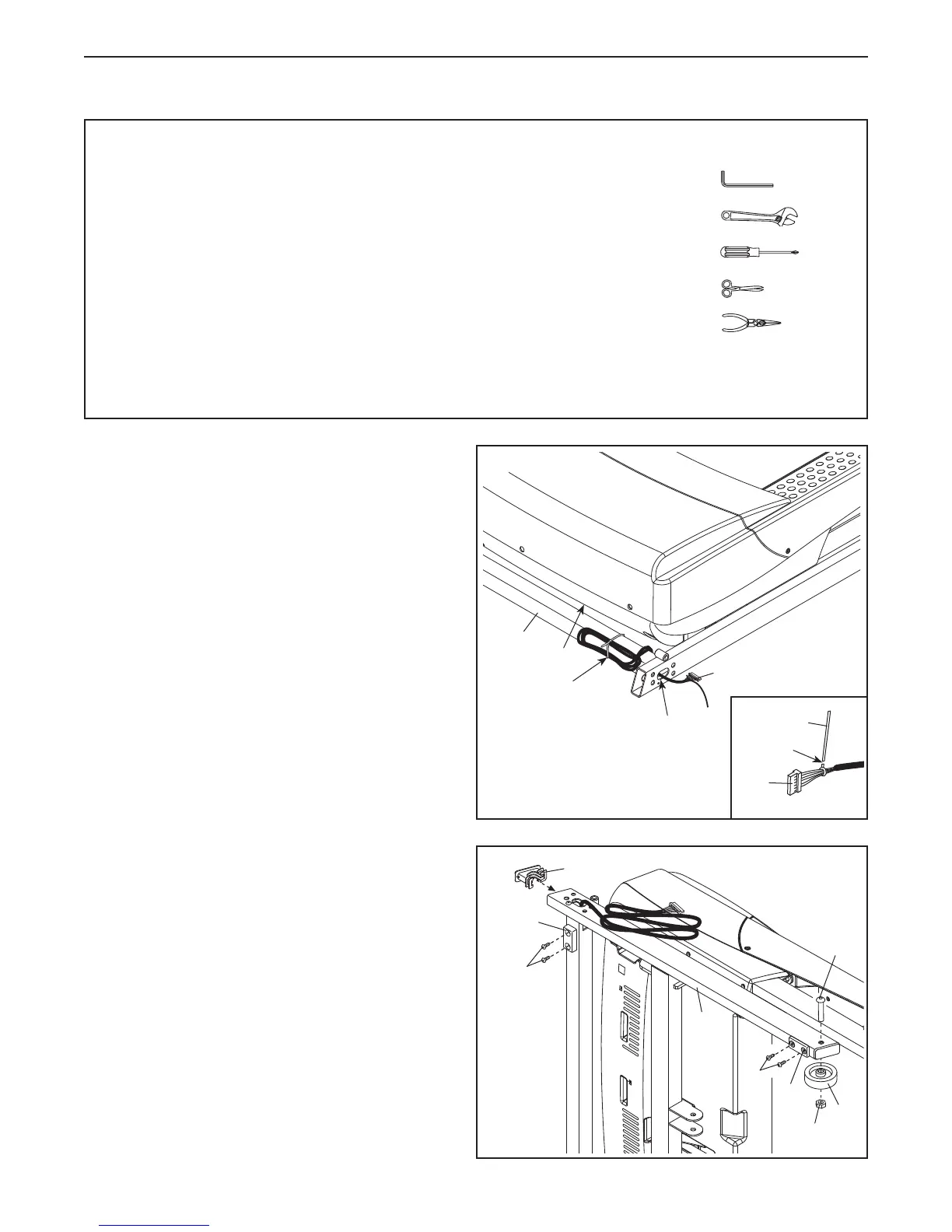

ASSEMBLY
2. With the help of a second person, tip the tread-
mill onto its right side.
Attach a Wheel (93) to the Base (29) with a 3/8"
x 2 1/2" Bolt (7) and a 3/8" Nut (9). Do not over-
tighten the Nut; the Wheel must turn freely.
Attach a Thick Base Pad (37) and a Thin Base
Pad (92) to the Base (29) in the locations shown
with four #8 x 3/4" Tek Screws (13). Be careful
not to overtighten the Screws.
Press a Base Cap (87) into the Base (29).
2
29
7
93
13
13
37
87
92
9
1. Make sure that the power cord is unplugged.
Locate the Upright Wire (91) bundled around
the front of the Base (29) beneath the Belly Pan
(76). Cut the plastic tie securing the Upright
Wire. Route the Upright Wire into the Base and
out of the indicated hole.
See the inset drawing. Cut the plastic tie near
the Upright Wire (91). Be careful not to dam-
age the Upright Wire.
91
76
29
Hole
Cut
91
Tie
Cut
1
