9

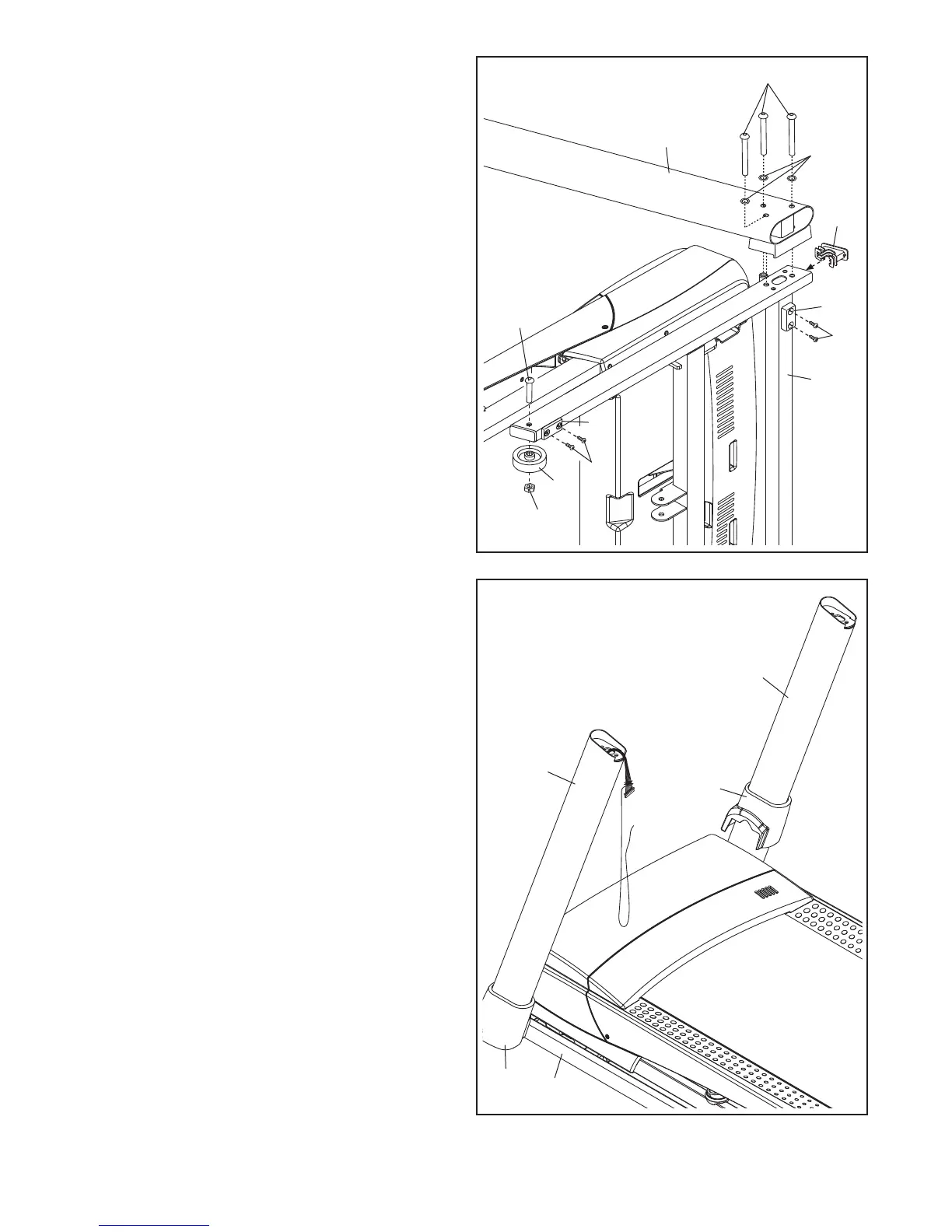

5. With the help of a second person, tip the tread-
mill onto its left side. Next, press in a Base Cap
(87).
Attach a Wheel (93) to the Base (29) with a 3/8"
x 2 1/2" Bolt (7) and a 3/8" Nut (9). Do not over-
tighten the Nut; the Wheel must turn freely.
Attach a Thick Base Pad (37) and a Thin Base
Pad (92) to the Base (29) in the locations shown
with four #8 x 3/4" Tek Screws (13). Be careful
not to overtighten the Screws.
Hold the Right Upright (85) against the Base
(29). Partially tighten three 3/8" x 4" Screws (3)
with three 3/8" Star Washers (10) into the Right
Upright and the Base; do not fully tighten the
Screws yet.
85
5
3
10
9
93
13
13
92
37
87
29
7
6. With the help of a second person, position the
treadmill so that the Base (29) is flat on the floor
as shown.
Identify the Left and Right Base Covers (88, 89),
which are marked “Left” and “Right.” Slide the
Left and Right Base Covers onto the Left and
Right Uprights (84, 85) as shown.
89
85
84
88
29
6
To Next Page
