HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted. Before adjusting the

reed switch, unplug the power adapter.

Next, remove the

Seat Post Knob

(27), remove the

Knob Shield (9),

and slide the

Shield Cover (7)

upward.

Next, remove all of the Screws (not shown) from the

Right and Left Shields (10, 11).

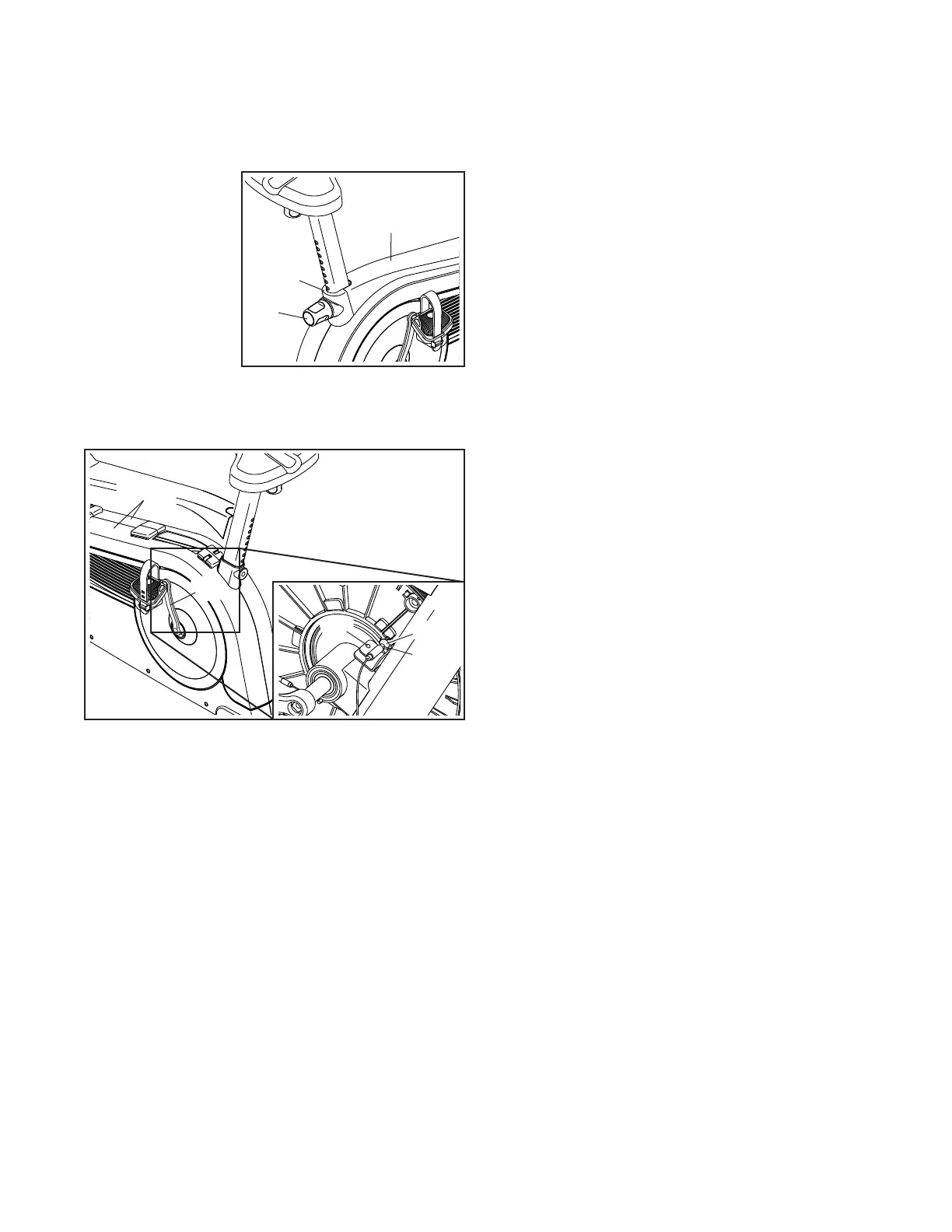

See the lower drawing at the left. Carefully pull the

tops of the Shields (10, 11) apart and locate the Reed

Switch (57). Rotate the Left Crank Arm (20) until a

Magnet (55) is aligned with the Reed Switch. Then,

slightly loosen the #8 x 18mm Screw (34), slide the

Reed Switch slightly toward or away from the Magnet,

and then retighten the Screw.

Plug in the power adapter and rotate the Left Crank

Arm (20) for a moment. Repeat these actions until the

console displays correct feedback. When the reed

switch is correctly adjusted, reattach the parts that you

removed.

10, 11

NordicTrack VU19 User Manual
