Nordson DuraBlue D16L - Electrical Component Service Kits; Circuit Boards

Parts
7-3
Part 1032059B
E 2003 Nordson Corporation
Manual 41-DURABLUE-MA-02
Electrical Component Service Kits
Electrical components include circuit boards, fuses, thermostats, heaters,
RTDs, and ribbon cables.
Circuit Boards

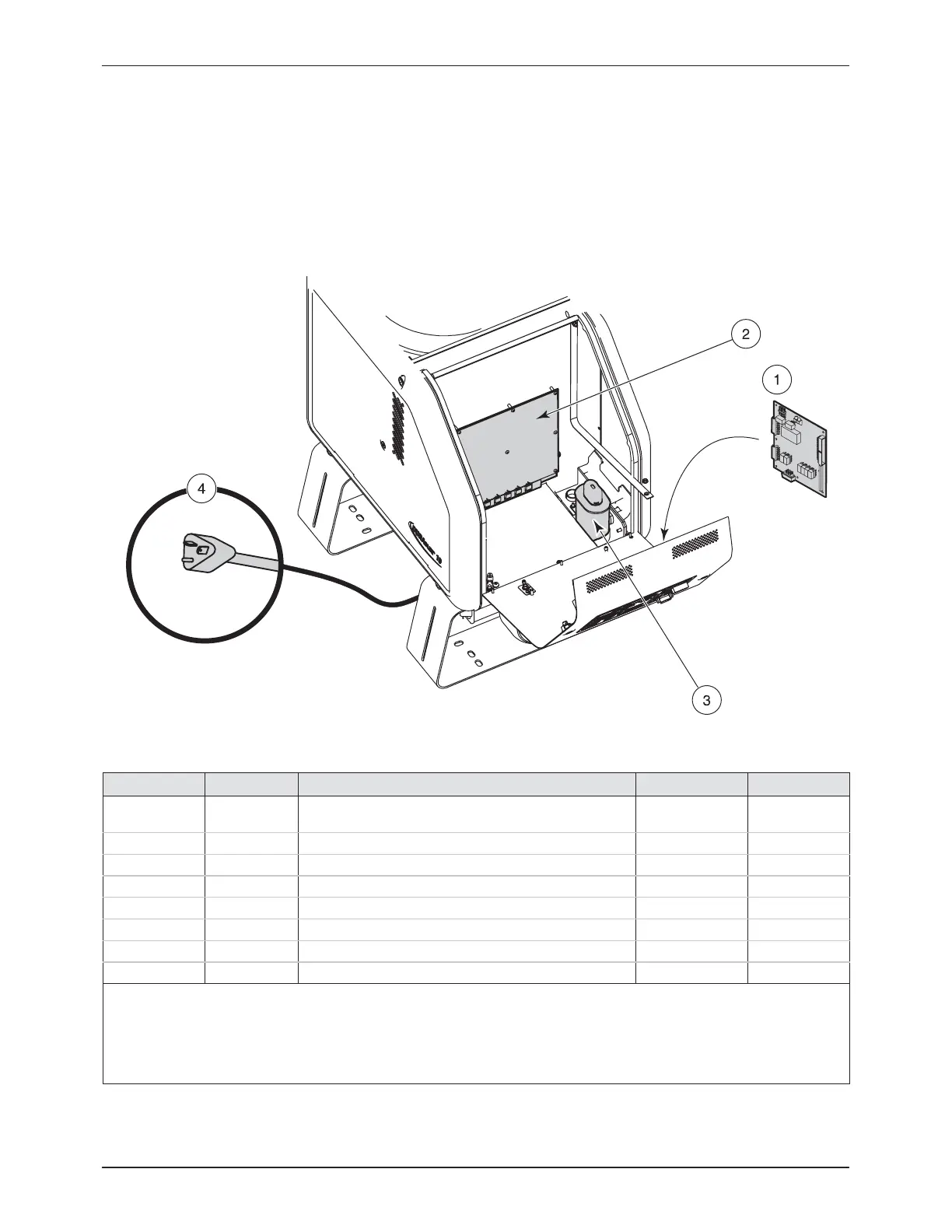

Figure 7-2 Circuit board service kit parts
Item Part Description Quantity Note
— 1028325 Service kit, board, display/central processing unit
(CPU)
— A
1 - - - - - -
S PCA, display/CPU
1
NS - - - - - -
S Stand-off, hex, M3 x 8 mm
6
NS - - - - - -
S Washer, lock, M3
6
— 1031200 Board, main, with heat sink — A, B
2
S Board, with heat-sink
1
3 - - - - - - Capacitor 1 C
4 1033632 Cord, power, 120 V melter 1 D
NOTE A: Circuit board service kits include an anti-static wrist strap.
B: For fuses, see Figure 7-3.
C: A capacitor is provided in each motor service kit Refer to Motor, in Drive Assembly Service Kits later in
this section.
D: Available only for 120-volt melters.
