Parts
7-12
Part 1032059B
E 2003 Nordson Corporation
Manual 41-DURABLUE-MA-02
Motor
WHITE
ORANGE
YELLOW
BROWN
1
3
2
GRN/YEL
6
RED
WHITE
BLACK
RED
BLUE
7
4
BLACK

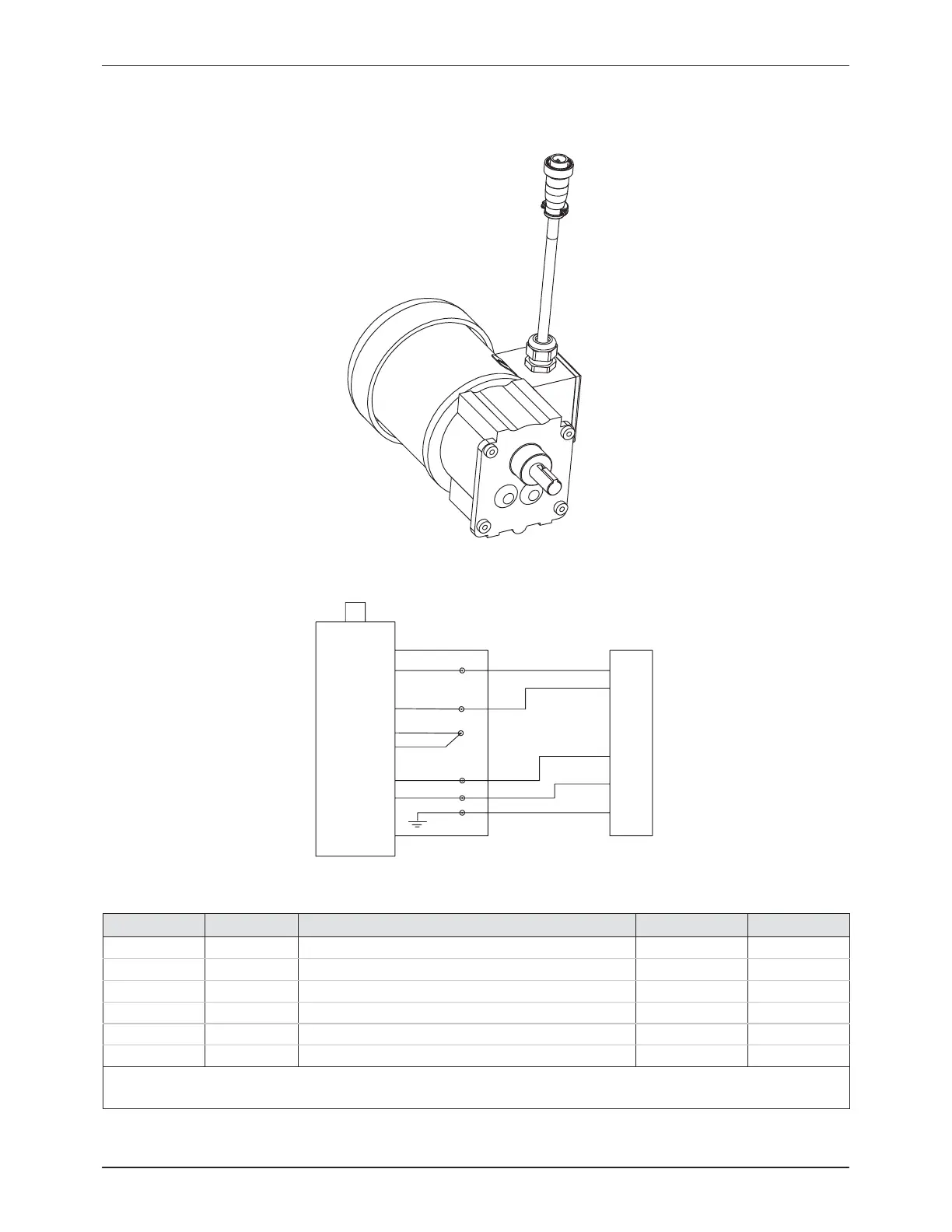

Figure 7-7
1
/
6
and
1
/4
hp motor service kit parts
Item Part Description Quantity Note
1 1031211 Motor,
1
/
6
hp, with pigtail, 86 rpm 1
NS 208276
S Capacitor, 10 µ F, 370 VAC
1 A
1 1031213 Motor,
1
/
4
hp, with pigtail, 131 rpm 1
NS - - - - - -
S Capacitor, 25 µ F, 440 VAC
1 A
1 1031212 Motor,
1
/
4
hp, with pigtail, 89 rpm 1
NS - - - - - -
S Capacitor, 25 µ F, 440 VAC
1 A
NOTE A: For the location of the capacitor, see Figure 7-2.
NS: Not Shown
