Encore Manual Spray Gun Upgrade Kit
3
Part 1102654A
E 2010 Nordson Corporation
15. See Figure 4. Remove the two M3 x 20 screws (12) securing the handle
base (22) to the handle assembly.
16. Pull the base away from the handle assembly about 25−50 mm
(1−2 in.).
17. Pull the clear 4-mm tubing (4A, part of filter assembly) off the barbed
fitting (20).
1222
4A 20

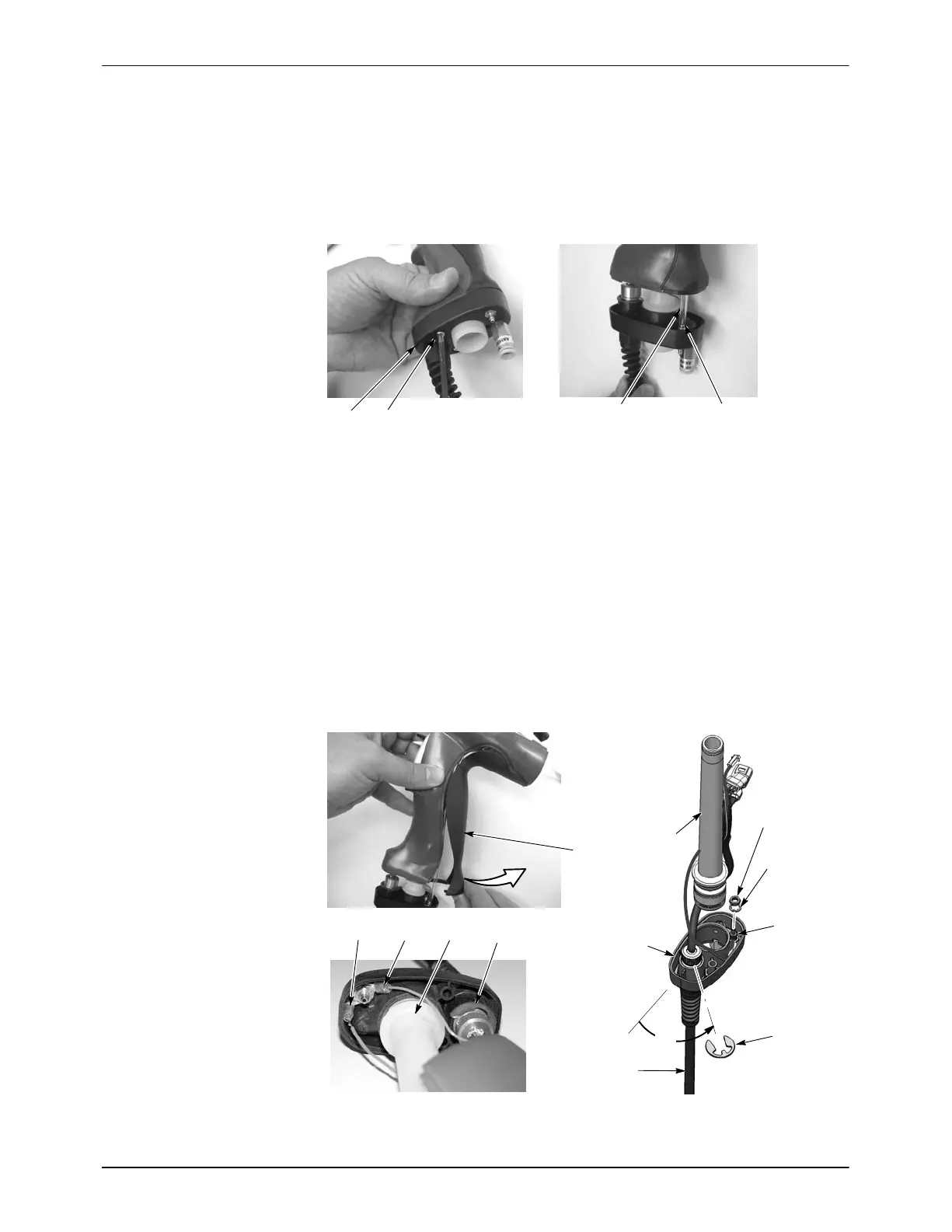

Figure 4 Removing Bulkhead and Body Screw
18. See Figure 5. Gently pull the ground pad (27) away from the handle,
starting with the bottom and rotating it up and away.
19. Separate the right and left handle halves. Leave the triggers on the right
handle half.
20. Use a deep
1
/
4
-in. socket to remove the nut and lockwasher from the
barbed fitting (20) and disconnect the gun cable ground wire (28A) and
display module ground wire (B) from the fitting (guns that have not had
the display module upgraded previously will not have a display module
ground wire). Discard the display module ground wire.
21. Remove the retaining ring (19) from the cable, then remove the
cable (28) from the base.
27
20
19
23
28
22
55_
Lockwasher
Nut
28A
19
23
B
Figure 5 Removing Bulkhead and Body Screw
