Encore Manual Spray Gun Upgrade Kit
4
Part 1102654A
E 2010 Nordson Corporation
Re-assembly with New Parts
1. See Figures 5 and 6. Re-install the lockwasher and nut on the barbed
fitting and tighten the nut with a deep
1
/
4
-in. socket.
2. Feed the new cable included with the upgrade kit (28) through the
handle base (22) and secure it to the base with the retaining ring (19).
Position the retaining ring at the angle shown.
3. Install the inlet tube with O-rings installed (23) into the handle base (22),
if removed.
4. Align the right and left handle hex pins with their mating sockets and
press the handles together.
5. Feed the cable connectors and ground wire into the front of the handle,
then slide the inlet tube through the tube guides into the handle
assembly while routing the cable through the handle as shown. Stop
when the base is about 1.5−2 inches from the bottom of the handle
assembly.
6. Connect the 4-mm clear tubing (part of filter assembly, item 4) to the
barbed fitting (20) in the handle base.
28
Clear tubing
23
Tube Guides
2220

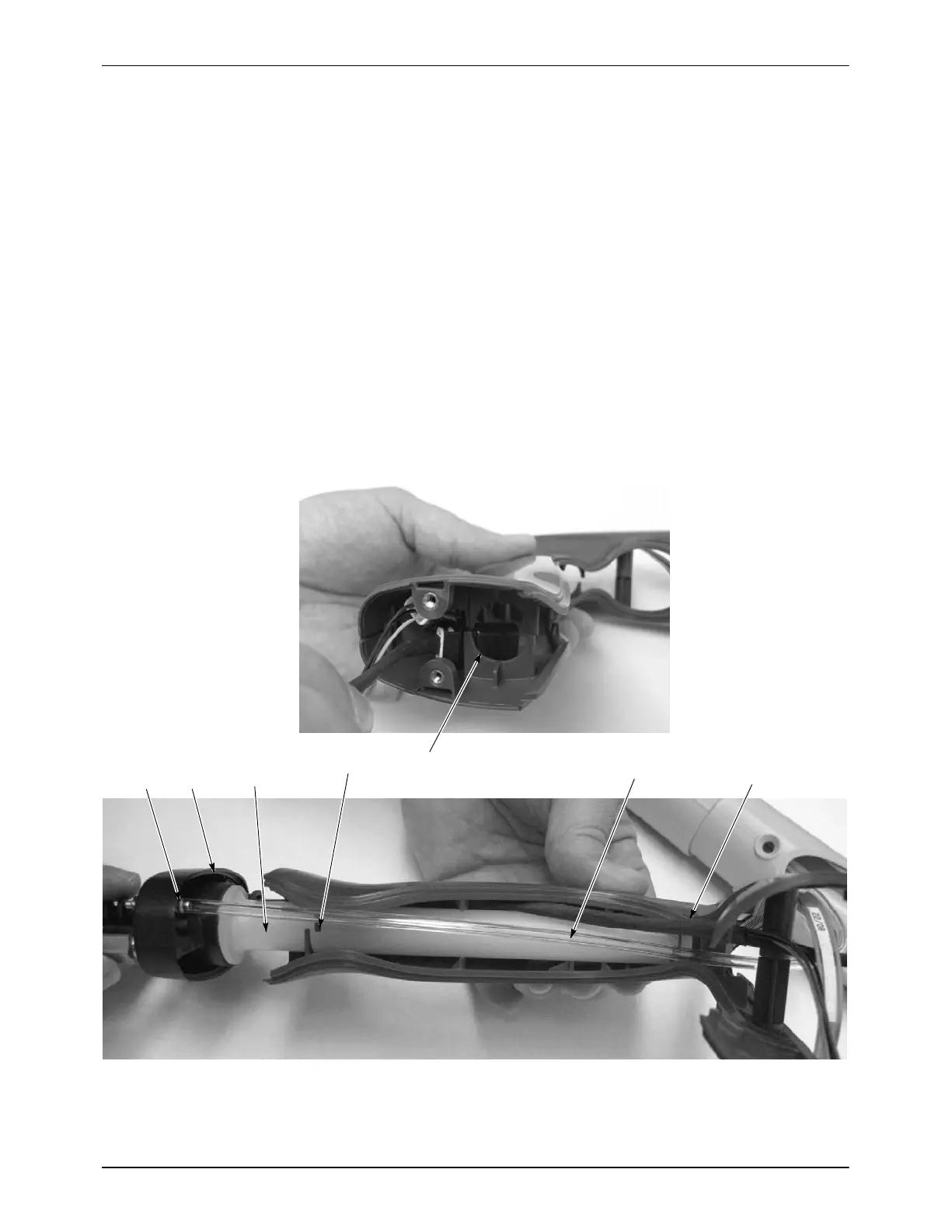

Figure 6 Assembling Handle
To Next Page
