Encore Manual Spray Gun Upgrade Kit
5
Part 1102654A
E 2010 Nordson Corporation

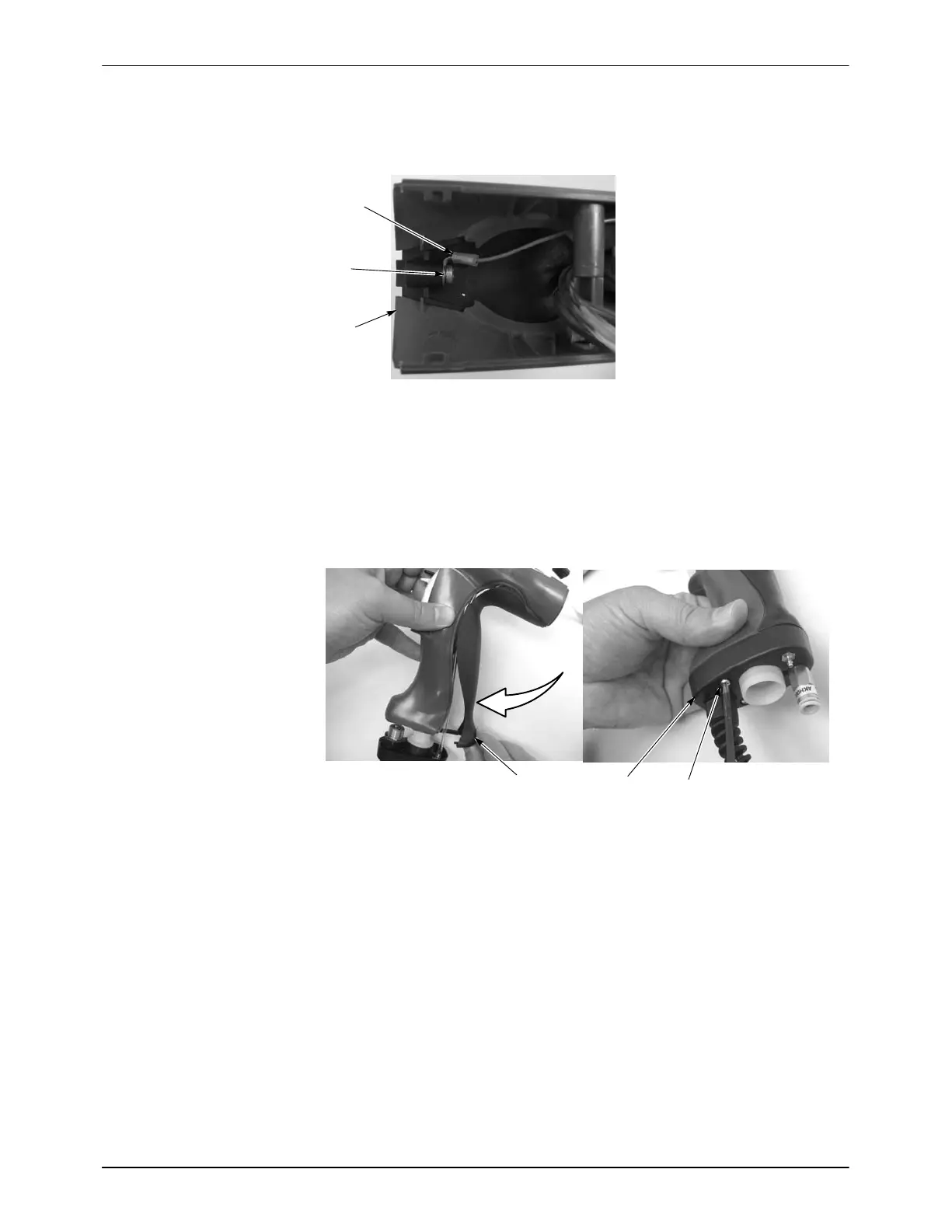

7. See Figure 7. Bend the cable ground terminal (28) 90 degrees and
connect it to the inside boss of the ground pad (27) with the lockwasher
and screw (27A, 27B) included with the upgrade kit.
27
27A
27B
28
Figure 7 Installing Ground Wire
8. See Figure 8. Hook the ground pad (27) behind the locator tabs on the
rear of the handles and rotate the ground pad into position against the
handle assembly.
9. Push up on the handle base (22) to seat it in the handle, then secure the
handle base to the handle assembly with the two M3 x 20 screws (12).
Hand tighten the screws only.
22
12
27
Figure 8 Installing Ground Pad and Handle Base
10. See Figures 9 and 10. Position the bulkhead (8) included with the
upgrade kit behind the locator tabs and rotate the top of the bulkhead
forward until it snaps into place on the handle and gun body.
11. Route the trigger switch header and the J2 and J3 cable connectors
through the bottom opening in the bulkhead.
12. Press on the rear end of the power supply to ensure that the brass
contact inside the forward end is seated against the contact tip at the
forward end of the gun body.
13. Insert the outlet tube (14) with O-rings installed through the front of the
gun body until the tube end is even with the end of the gun body.
14. Make sure the O-ring is installed in the groove on the inlet powder tube.
Install the elbow (13) onto the end of the inlet tube.
