Encore Manual Spray Gun Upgrade Kit
6
Part 1102654A
E 2010 Nordson Corporation
15. Feed the power supply J2 connector through the top opening in the
bulkhead.
16. Align the gun body assembly with the handle and slide them together,
engaging the internal ribs of the gun body with the handle tabs.
Locator Tabs
Trigger
Switch
Header
Gun
Cable
Connectors
Power
Supply
Connector
Bulkhead

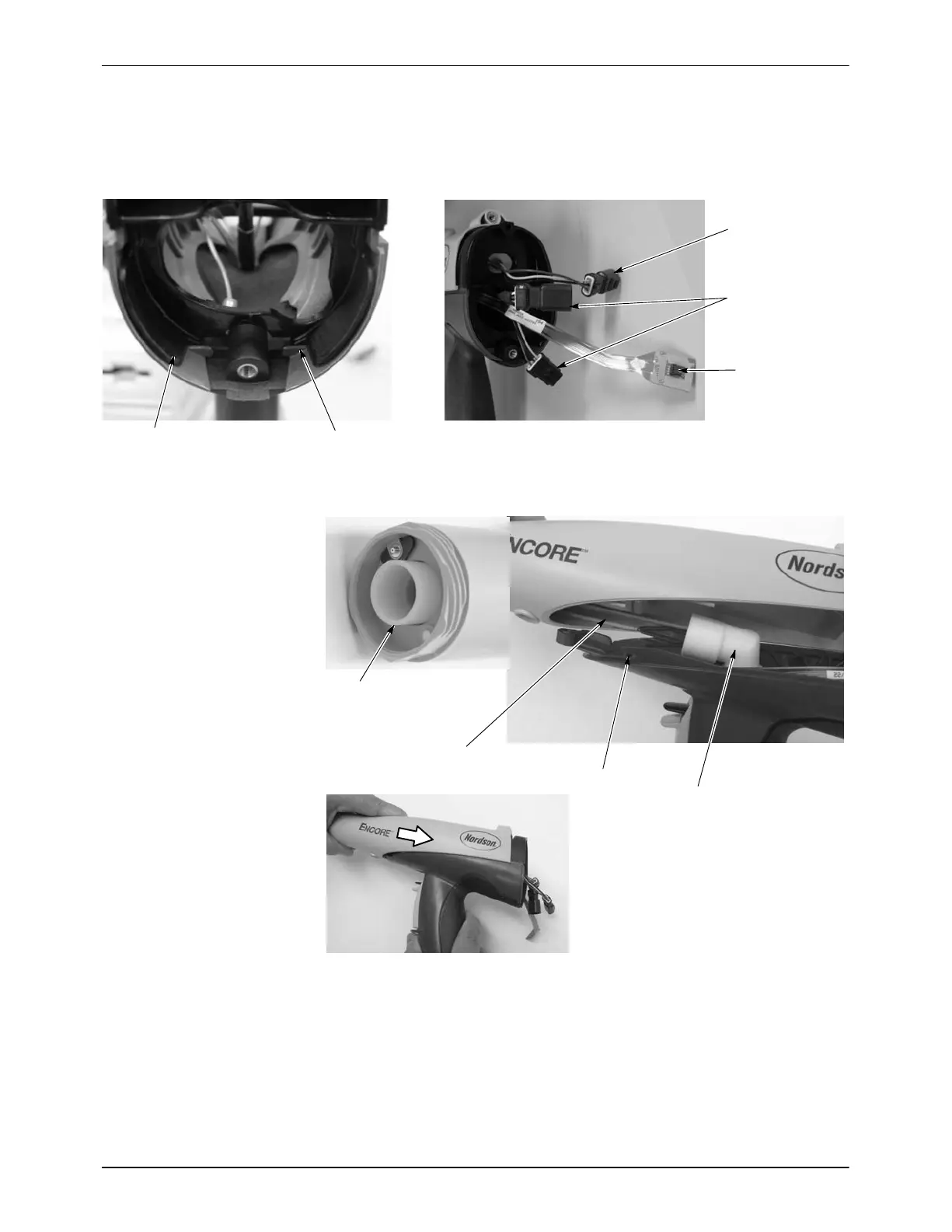

Figure 9 Installing the Bulkhead and Routing Cables and Trigger Switch Header
14
13
Internal Ribs
Handle Tabs
Figure 10 Outlet Tube, Elbow, and Gun Body Installation
17. See Figure 2. Install the M5 x 10 flat head nylon screw into the gun
body to secure it to the handle.
18. Connect together the J2 power supply and cable connectors and the J3
display module and cable connectors.
