Encore™ HD Mobile Powder Coating System
INSTALLATION PROCEDURES

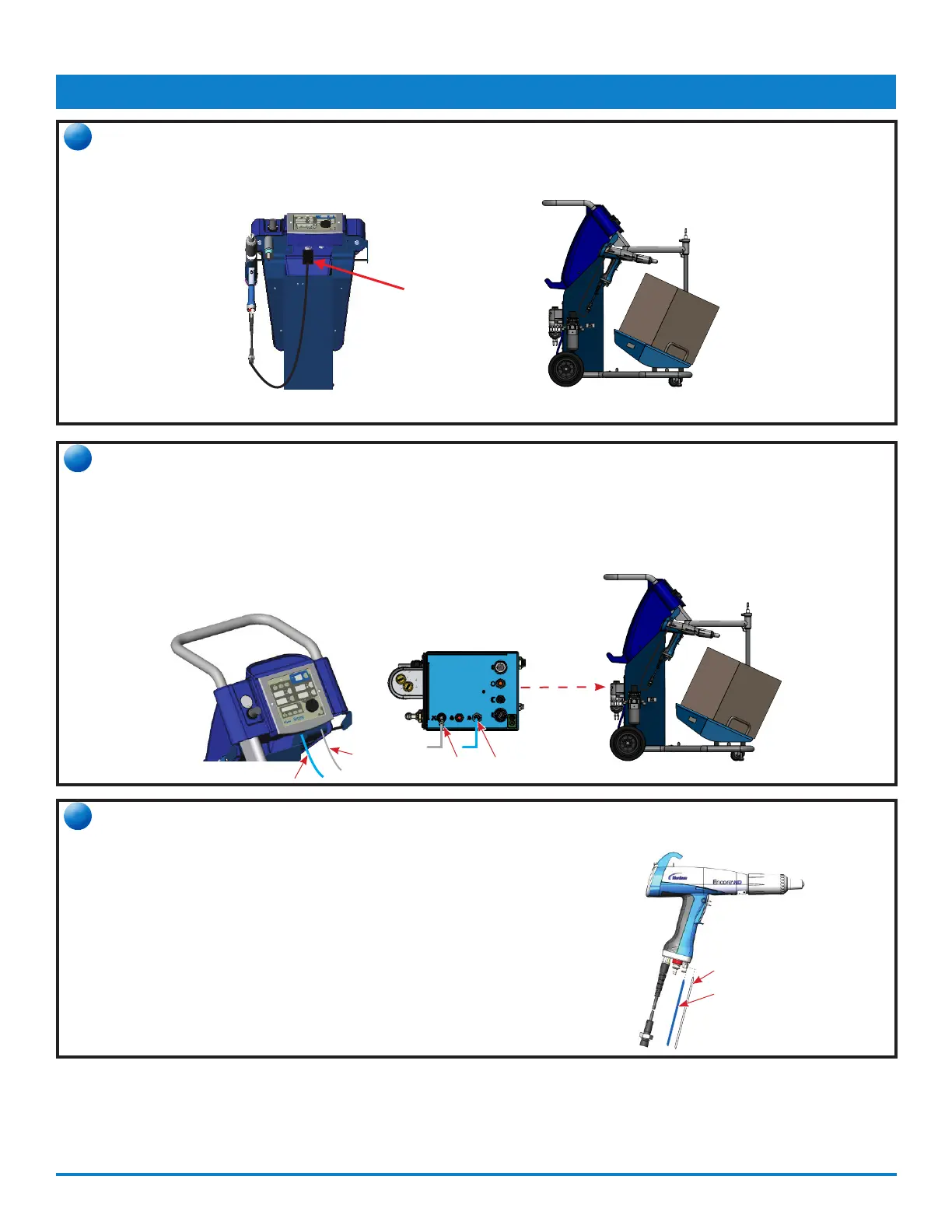

Install the spray gun cable on the manual system.
1. Connect the spray gun cable to the connector on the back of the controller.
View 1 View 2
Install the 4-mm clear and 6-mm blue tubing to the top of the pump control
unit.
1. Feed the tubing through the front opening at the top of the tower.
2. Connect the tubing to the appropriate tting on the top of the unit.
Install the tubing from the pump control unit to the spray gun.
Tool Required: tube cutters
1. Measure the tubing the same length as the spray gun cable (typically
6 m).
2. Cut all the tubing straight across to create a 90-degree angle.
3. Push the tubing into the connections located at the bottom of the
spray gun.
4-mm Clear Tubing
6-mm Blue Tubing
To Next Page
