Encore™ HD Mobile Powder Coating System

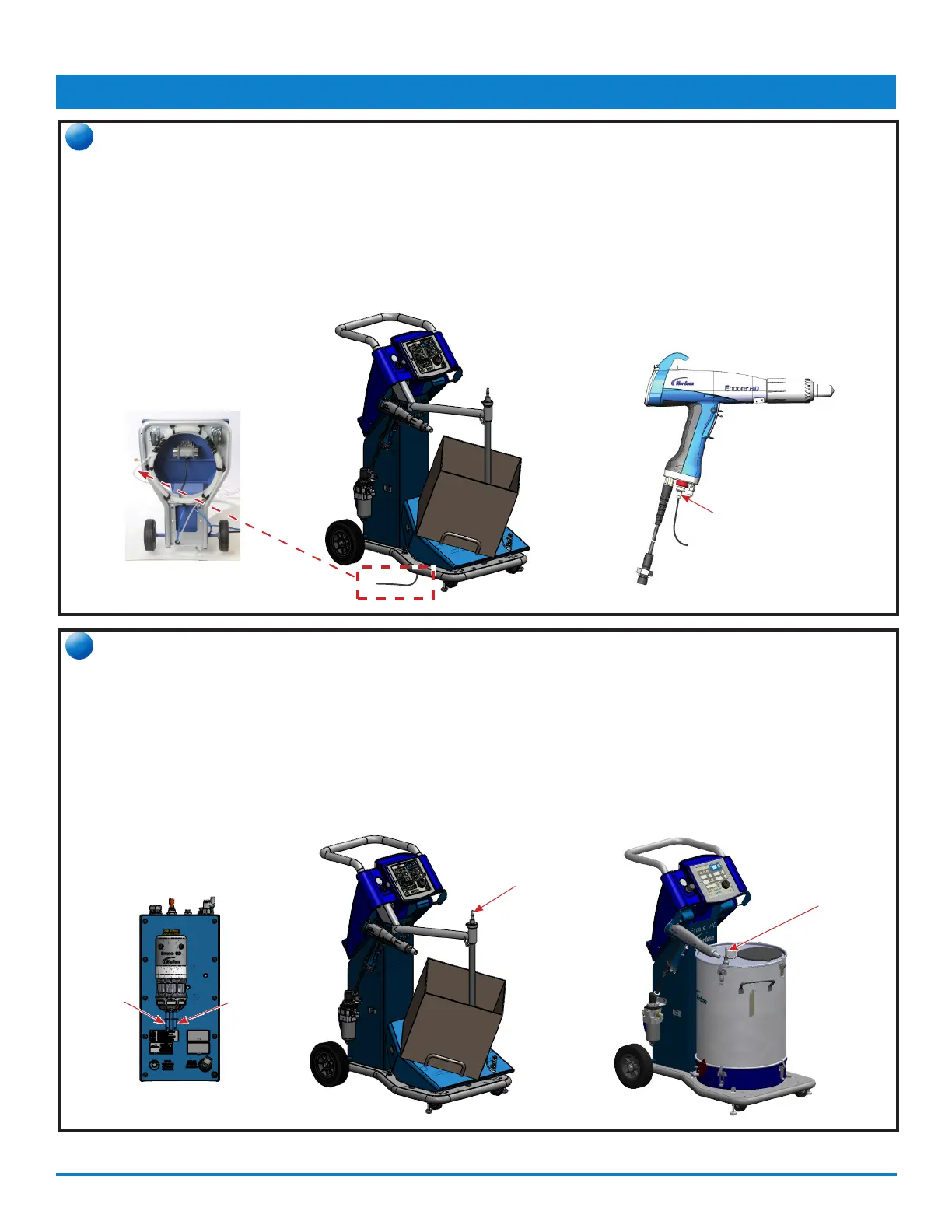

Install the powder tubing from the spray gun to the pump.
Tool Required: scissors
1. Connect the powder tubing from the pump to the spray gun adapter.
2. Dress out the air tubing, powder hose, and spray gun adapter using a cut piece of black spiral wrapping (step not
shown).
NOTE: Do not pinch powder tubing.
Tubing is Factory
Installed
Connect the powder tubing from the pump to the pickup tube.
Tool Required: scissors
1. Connect the end of the powder tubing to the front-right (suction side) barbed tting on the pump.
2. Route the tubing through the tower to the top of the pickup tube.
3. Connect the tubing to the barbed tting on the top of the pickup tube.
4. Dress out the pickup tubing using a cut piece of black spiral wrapping.
Suction
Side
Delivery
Side
Barbed
Fitting
Barbed
Fitting
INSTALLATION PROCEDURES CONT...
