Encore™ HD System
Controller and Spray
Gun Operation

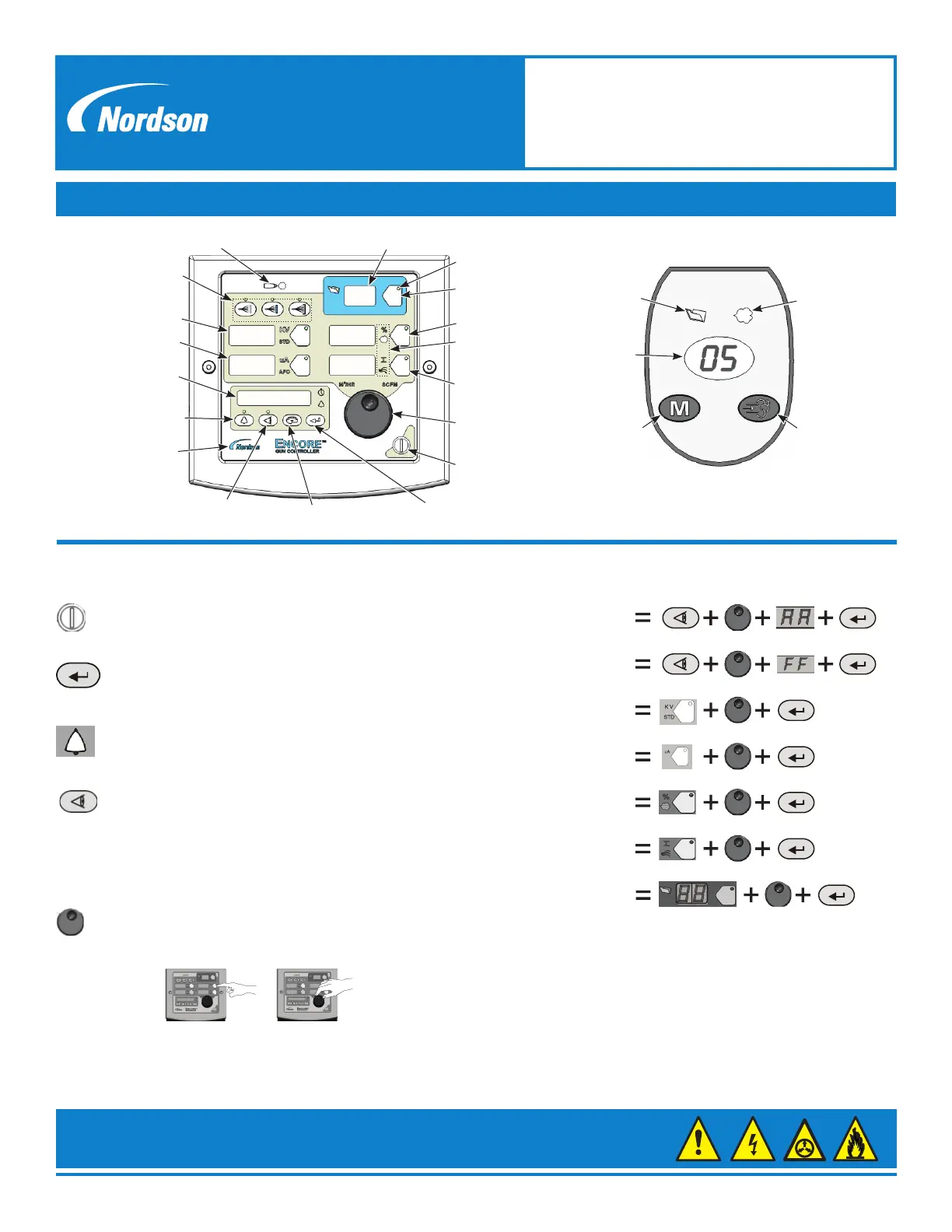

SYSTEM CONTROLLER AND SPRAY GUN DISPLAY
Preset Mode
Icon
Display
Mode
Button
Flow Mode
Icon
Purge
Button
Select Charge
Modes
kV Settings
µA Settings
Function/Help
Display
Help Button
Nordson Button
(Conguration)
View Button
Color Change Button
Enter Button
Rotary Knob
Pattern Air
Flow Setting
Standby
Button
Setting Icons
Powder Flow %
Preset Select
Setting Button LEDs
Current Preset Number
Gun Triggered On Indicator
Frequently Used Buttons
Standby: Shuts o controller interface and spray
gun during operation
Enter: Activates selected function or setting.
Help: Light will display if a problem occurs. Rotate
knob to scroll through the last ve codes. CLR +
Enter will clear the codes.
View: Displays assist air setting (AA), fast-ow
setting (FF), gun controller software (GC), gun
display module software (DD), ow module
software (FL)and hardware version for the main
control board (HD).
Rotary Knob: Adjusts displayed values up or down.
Selecting
Changing
Frequently Used Settings
Assist Air
Fast Flow
kV Voltage
µA Control
Powder
Flow %
Pattern Air
Flow
Presets
Follow the safety, operation, and maintenance instructions in the product manual.
Refer to the Encore HD manual 1605707 for additional information.
