Nordson EP 30 User Manual

Hot melt application head EP 30
3
P/N 397191B
E 2005 Nordson Corporation
EP 30
Description of Components / Functioning

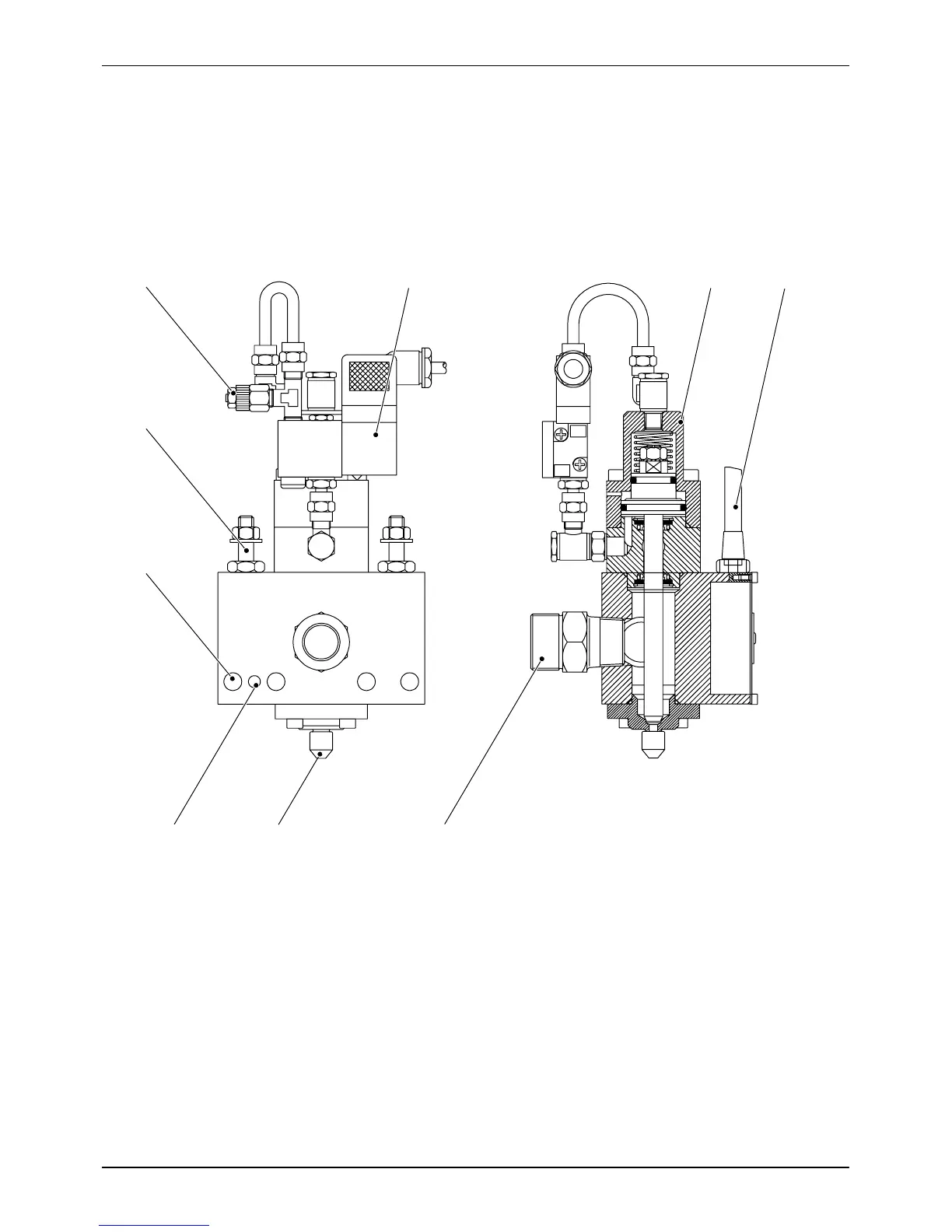

Front and Back View
5
1
3
4
2
6
7
9
8
Fig. 1
1 Compressed air connection
2 Solenoid valve
3 Control module
4 Electrical connecting line
5 Hose connection
6 Nozzle
7 Temperature sensor
8 Heater cartridge
9 Mounting bracket
Note: Depending on the model, the nozzle may be different lengths.
