8
Table 2. Optional Air Conditioning and
Heat Pump Equipment
Figure 3. Optional Rear Mounting Plate
(P/N 389080)
3"
(76 mm)
20-1/8"
(511 mm)
11/16"
(17 mm)
Notes:
1) For A/C and H/P use.
2) Includes coil fi lters.
3) For upfl ow or downfl ow installations.
4) For upfl ow A/C or H/P installations (includes one fi lter; use
fi lter from furnace to complete fi ltering system in this acces-
sory).
5) Standard in EB models.

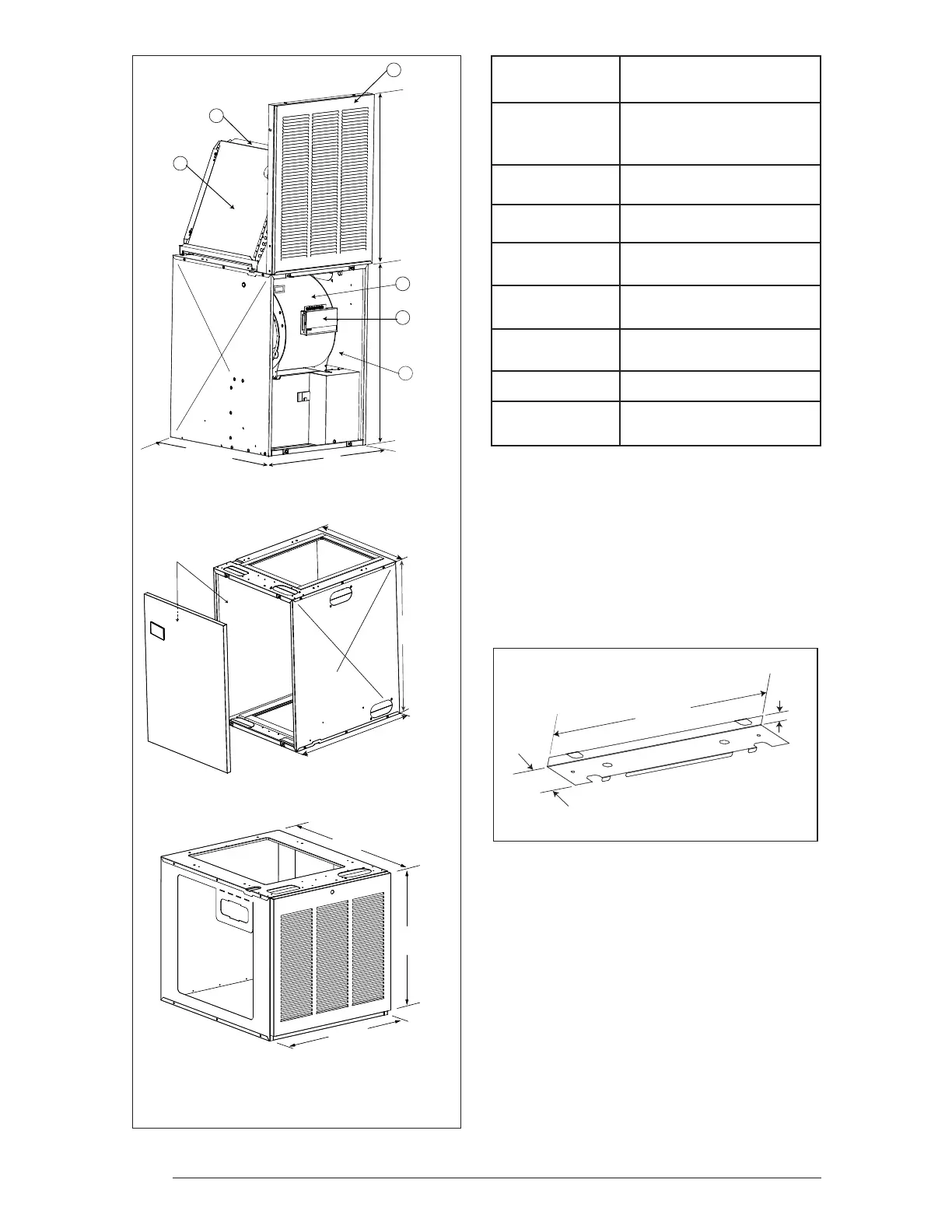

Figure 2. Optional Accessories
20" (508 mm)
Cabinet
Insulation
Upflow Coil Cabinet
23 3/4" (603 mm)
29"
(737 mm)
NOTE: See Table 2 for descriptions
and notes
1
2
3
4
7
8
27"
(686 mm)
29"
(737 mm)
20"
(508 mm)
23 3/4"
(603 mm)
24 3/4” (628 mm)
Upflow Stand
20”
(508 mm)
20” (508 mm)
Item Number
(See Figure)
Description
1
4-Speed Blower
4 Ton - See notes: 1 & 5
5 Ton - See Note: 1
2
A.C./H.P. Relay Control
See Note: 1
3
Cabinet insulation Kit
See Notes: 1 & 5
4
A-Coil Conversion Kit
See Note: 2
5
Coil Cabinet
See Note: 3
6
Upfl ow Stand
See Note: 4
7 A/C and H/P Indoor Coils
8
Return Air Grille and
Frame
