Nordyne JS6BD Series - TECHNICAL REFERENCE DATA; Unit Specifications and Dimensions

10
FIGURES & TABLES

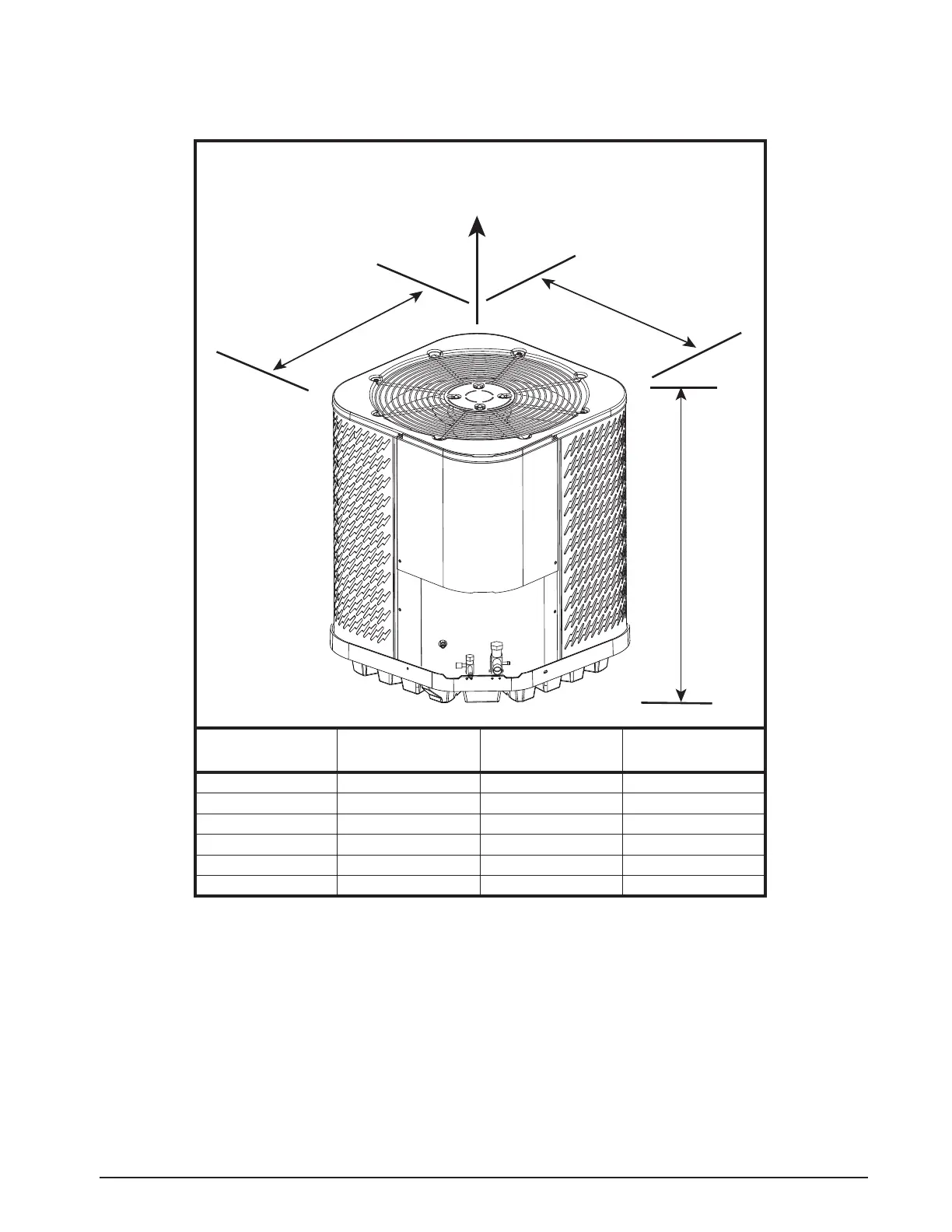

Table 3. Unit Dimensions
Model Number
JS6BD-
Height -H- Width -W- Depth -D-
024 27" 22 3/4" 22 3/4"
030 27" 22 3/4" 22 3/4"
036 35" 22 3/4" 22 3/4"
042 27" 30 3/4" 30 3/4"
048 27" 30 3/4" 30 3/4"
060 31" 30 3/4" 30 3/4"
D
W
H
DO NOT OBSTRUCT TOP OF UNIT
Allow adequate clearance for airflow
