42 Installing and connecting a Series 2332 Access Point
NN47250-302 (324136-A Version 01.03)
a Slide each half of the clamp onto the T-bar so that the clamp lip is fully on the T-bar.
b Slide the two halves of the clamp toward each other until the tabs are inserted completely into the
holes and the clamp fits snugly on the T-bar.

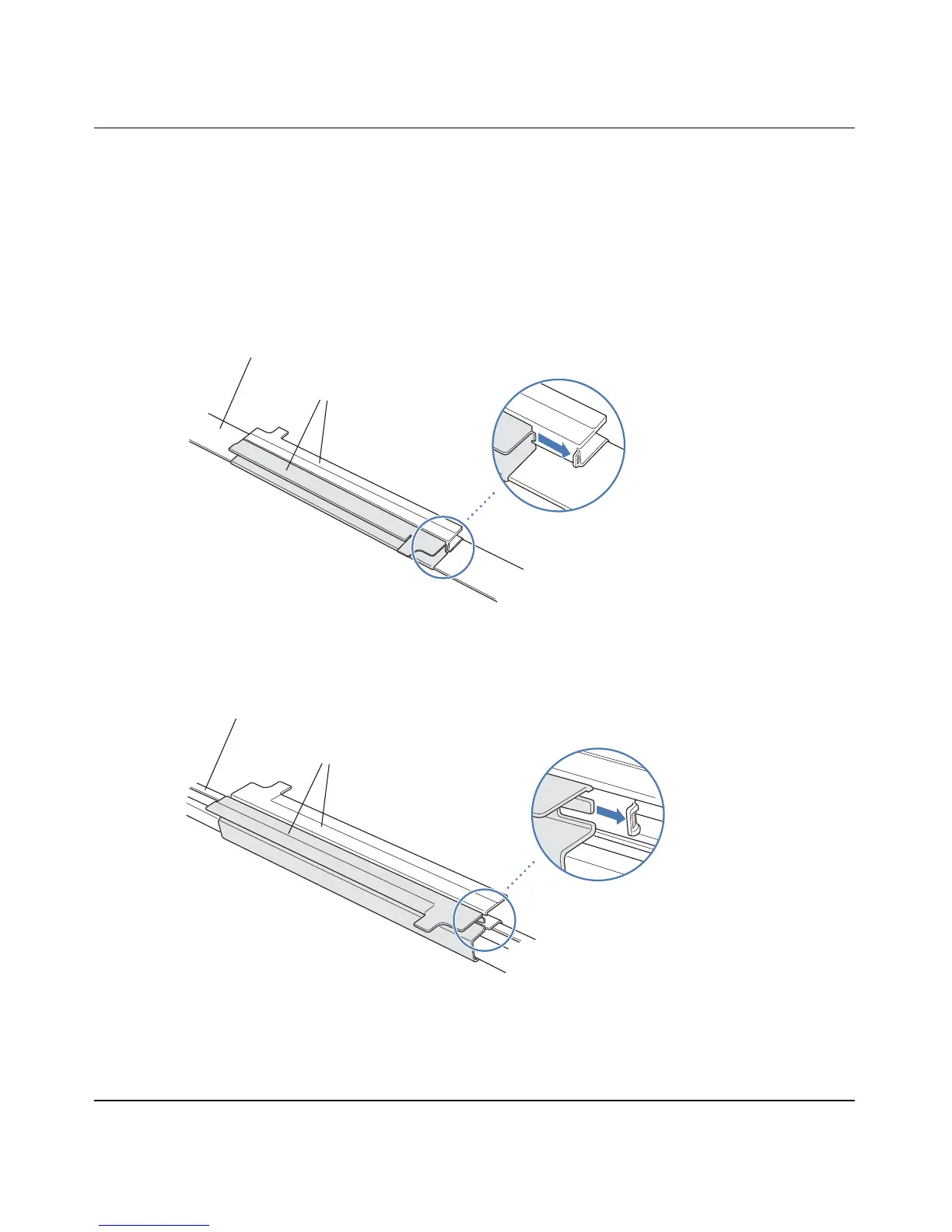

Figure 13 shows an example for a 23.9-mm (15/16-inch) T-bar. Figure 14 shows an example for a
15.9-mm (5/8-inch) T-bar.
Figure 13. Step 3—Installing the T-bar Clamp for a 23.9-mm (15/16-inch)
T-bar
Figure 14. Step 3—Installing the T-bar Clamp for a 15.9-mm (5/8-inch)
T-bar
T-bar
T-bar clamp halves
Slide together
840-9502-0003
T-bar
T-bar clamp halves
Slide together
840-9502-0066
