Nortel Passport 4400 Series User Manual

Ethernet Base ModulePassport 4400 Hardware Installation Manual
3-6
Ethernet Access Port
The Ethernet Access Port (10BASE-T), located on the back panel of the Ethernet
Base Module, connects the Passport 4400 to the Ethernet.

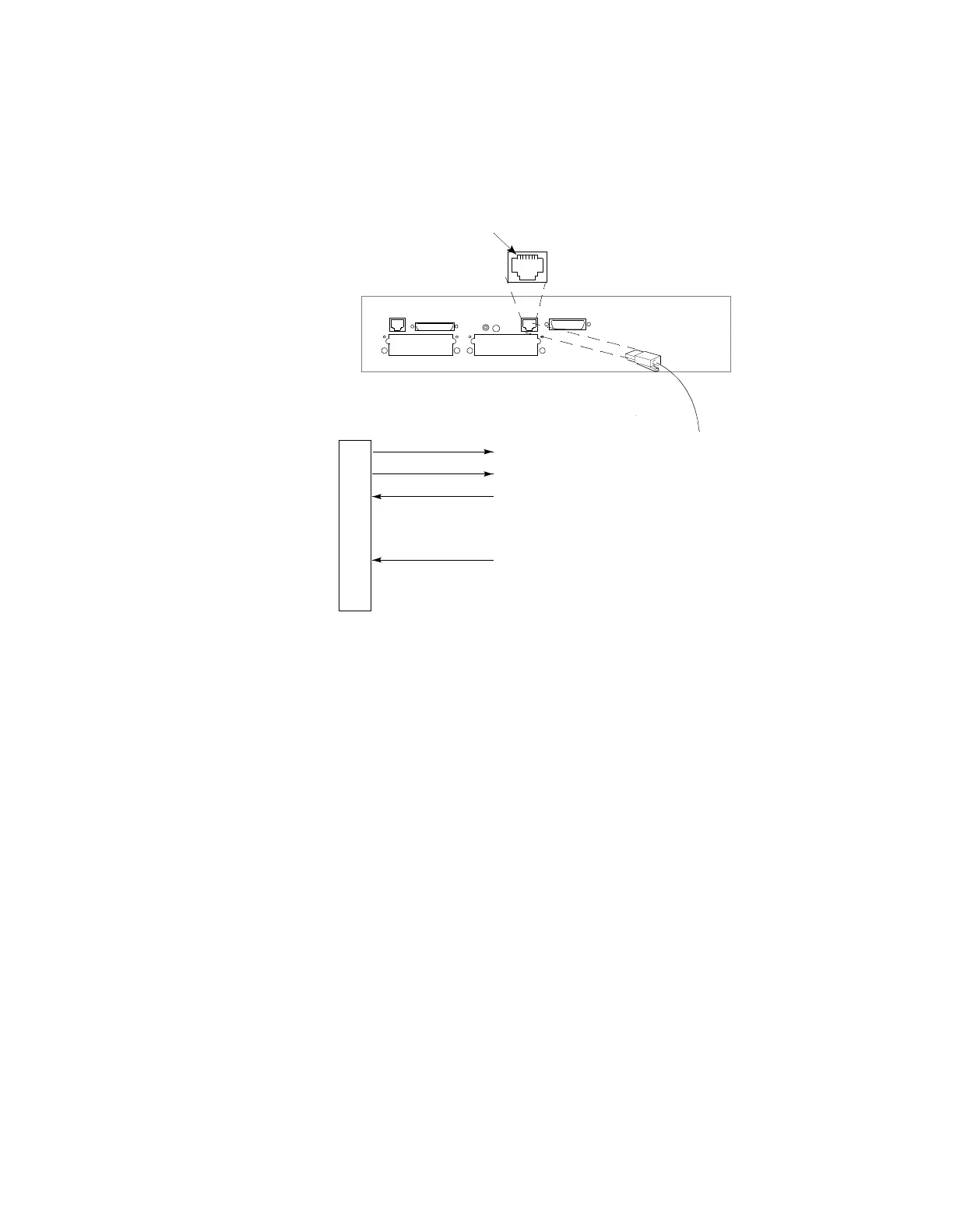

Figure 3-6. Ethernet 10BASE-T Connector and Pin Assignments
Refer to the following chapters for added information:
• Appendix B, Agency and Telephone Company Requirements.
• Appendix D, T1 Voice Module Cabling Requirements.
(Tx+) Transmit Data Positive
(Tx-) Transmit Data Negative
(Rx+) Receive Data Positive
(Rx-) Receive Data Negative
RJ-45 Pin Assignments
RJ-45
Pin 1
1
2
3
4
5
6
7
8
Pins 4, 5, 7, 8 Not Connected
To Ether n et
