Overview Section 4 Applications
NFS-3030 Installation PN 51330:C 10/28/2003 47
Section 4 Applications
4.1 Overview
A listing of chapters and topics covered in this section:
Note: NFS-3030 is not listed for Canadian security application.
Municipal Box (Auxiliary)
Municipal Box applications require a TM-4 Transmitter module. Refer to the Transmitter Module TM-4
installation document for installation details.
4.2 Devices Requiring External Power Supervision
With LCM-320 revision 2.0 and higher,
certain type codes have external power
supervision built into the software. An
external power-supervision relay is
required (see Figure 33) unless one of
the following typecodes is selected for
the device:
• Control
• Relay
•Strobe
• Horn
• (Blank)
• Release Ckt
• Rel Ckt Ulc
•Rel Form C
•Nonreset Ctl
• Alarms Pend
• Gen Alarm
• Gen Super
• Gen Trouble
• Gen Pend
• Trouble Pend
•Form C Reset
Chapter Covers the following topics
Section 4.3 “NFPA 72
Central or Remote Station
Fire Alarm System
(Protected Premises
Unit)”
How to install a UDACT with the CPU for use as a
NFPA Central or Remote Station Fire Alarm System
(Protected Premises Unit)
Section 4.4 “NFPA 72
Proprietary Fire Alarm
Systems”
How to set up a Protected Premises Unit to
communicate with a listed compatible Protected
Premises Receiving Unit.
Section 4.5 “Fire/Security
Applications”
How to use the CPU as a combination Fire/Security
system, including the following:
• Installing a Security Tamper Switch into the cabinet
• Circuit Wiring
Device to be
Supervised
Non-resettable 24
VDC Power from
a listed source
–
+
–
+
SLC from FACP
FCM-1
N.C. Supervision
Relay Contact
Part of A77-716B
(Only required when
type code does not
provide built-in
power supervision.)
Power Supervision
Relay (A77-716B)
(Only required when
type code does not
provide built-in power
supervision.)

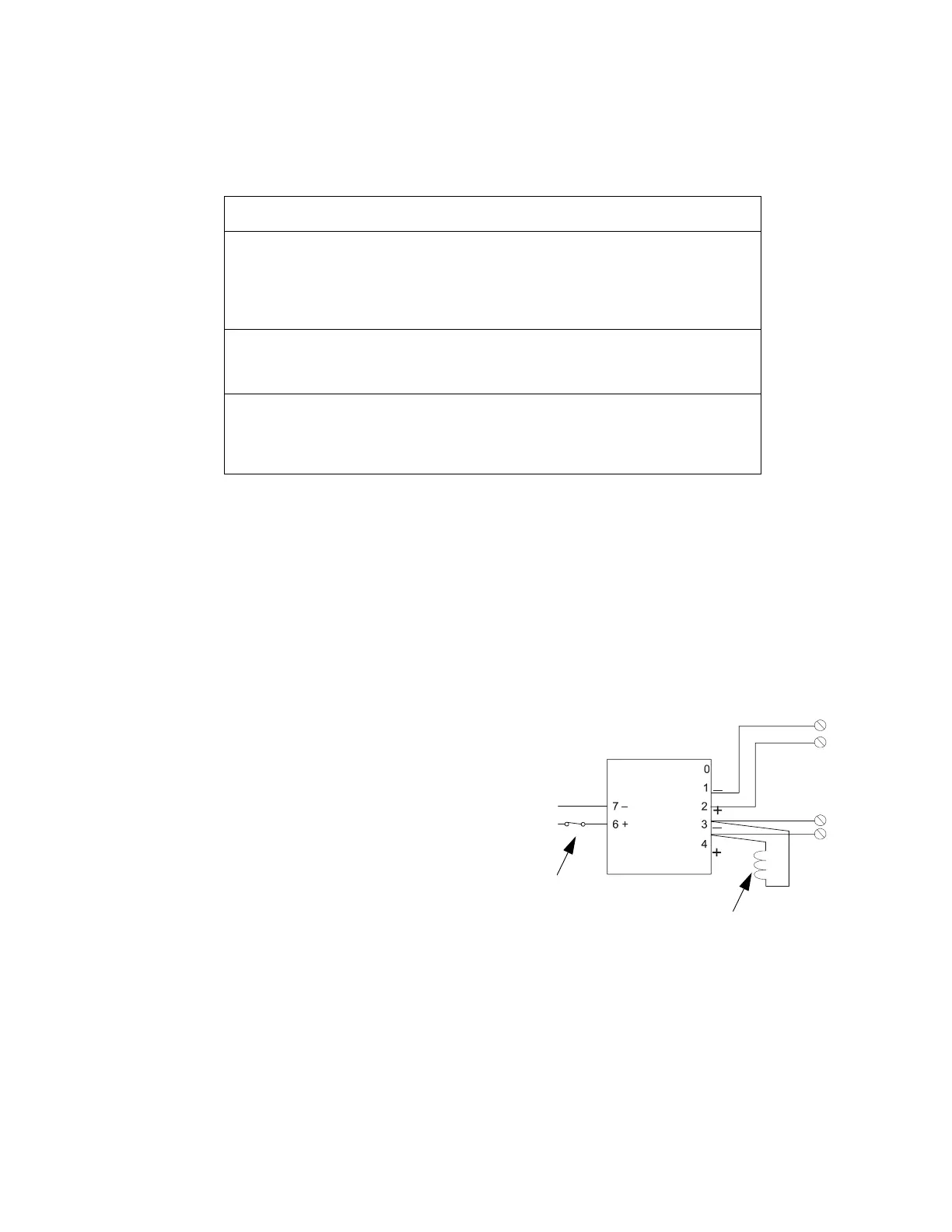

Figure 33 Enabling External Power Supervision
Using Relays
3030-external-power-sup.wmf
