Notifier NFS-3030/E

Fire/Security Applications Section 4 Applications
NFS-3030 Installation PN 51330:C 10/28/2003 53
4.5.7 Connecting an RKS-S Remote Key Switch
The RKS-S Remote Key Switch arms and disarms the system. It can be mounted in a UL listed single-
gang electrical box. Both the monitor module and RKS-S must be mounted within the protected area.
Figure 38 and Figure 39, respectively, depict the connection of the FMM-101 or FMM-1 module to the
RKS-S.

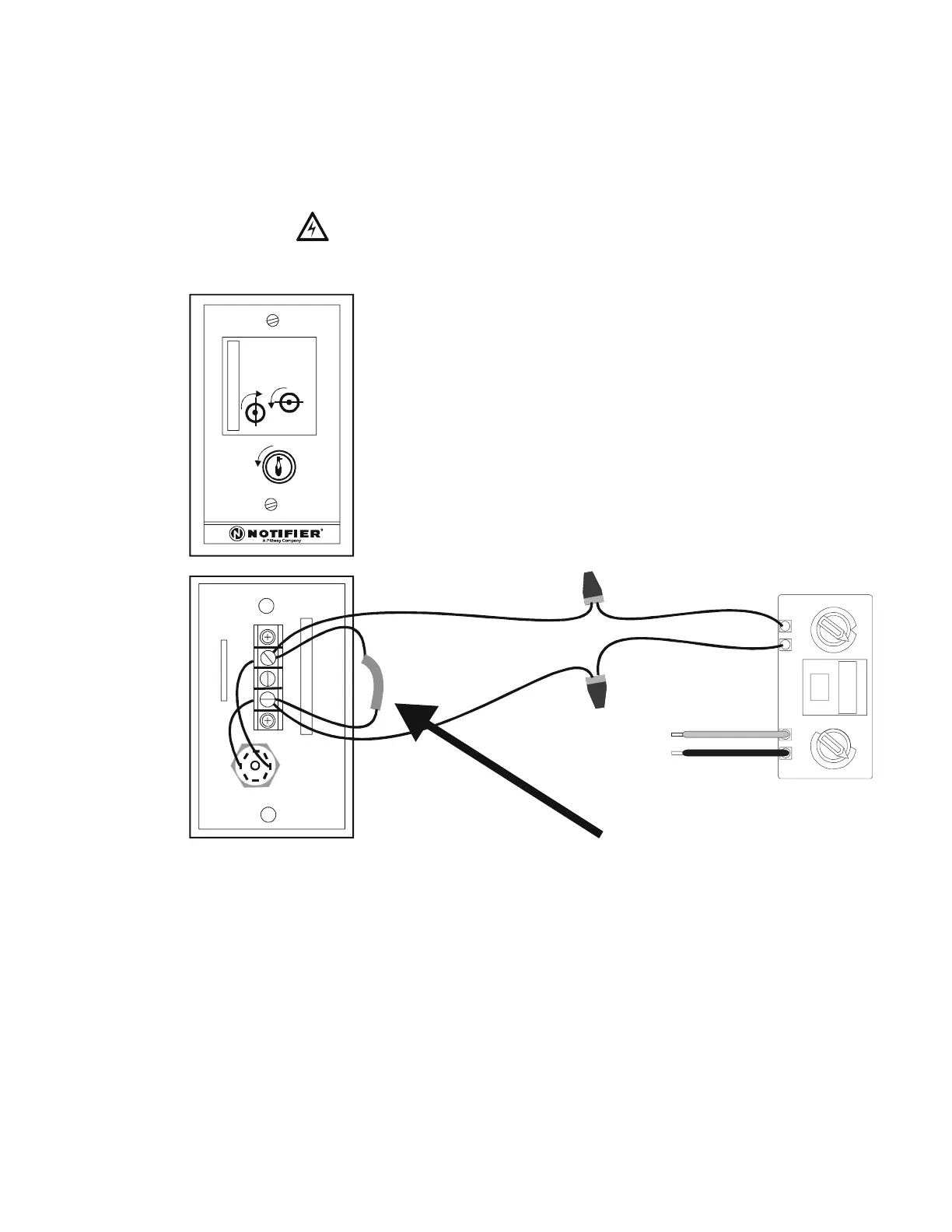

Figure 38 Connecting the FMM-101 Module to the RKS-S
!
WARNING: XP Transponder circuits (XPP-1, XPM-8, XPC-8, XPR-8, XPM-8L)
are not suitable for security applications.
0
10
11
12
13
14
15
ADDRESS
LOOP
1
2
3
4
TENS
ONES
6
7
8
9
5
0
1
2
3
4
6
7
8
9
5
SECURITY
SYSTEM
ARM
DISARM
FMM-101
Wire an R-47K End-of-Line
Resistor into the circuit
RKS-S front
yellow (–)
RKS-S
rear
purple (+)
Signaling
Line
Circuit
red (+)
black (–)
RKSFMM-a.cdr
