Nova Florida VELA COMPACT - Pic. 4 - CTFS Model Dimensions

12
M
C
G
F
R
0
1
3
6
5
42
bar
1
3
5
42
bar
Model CTFS

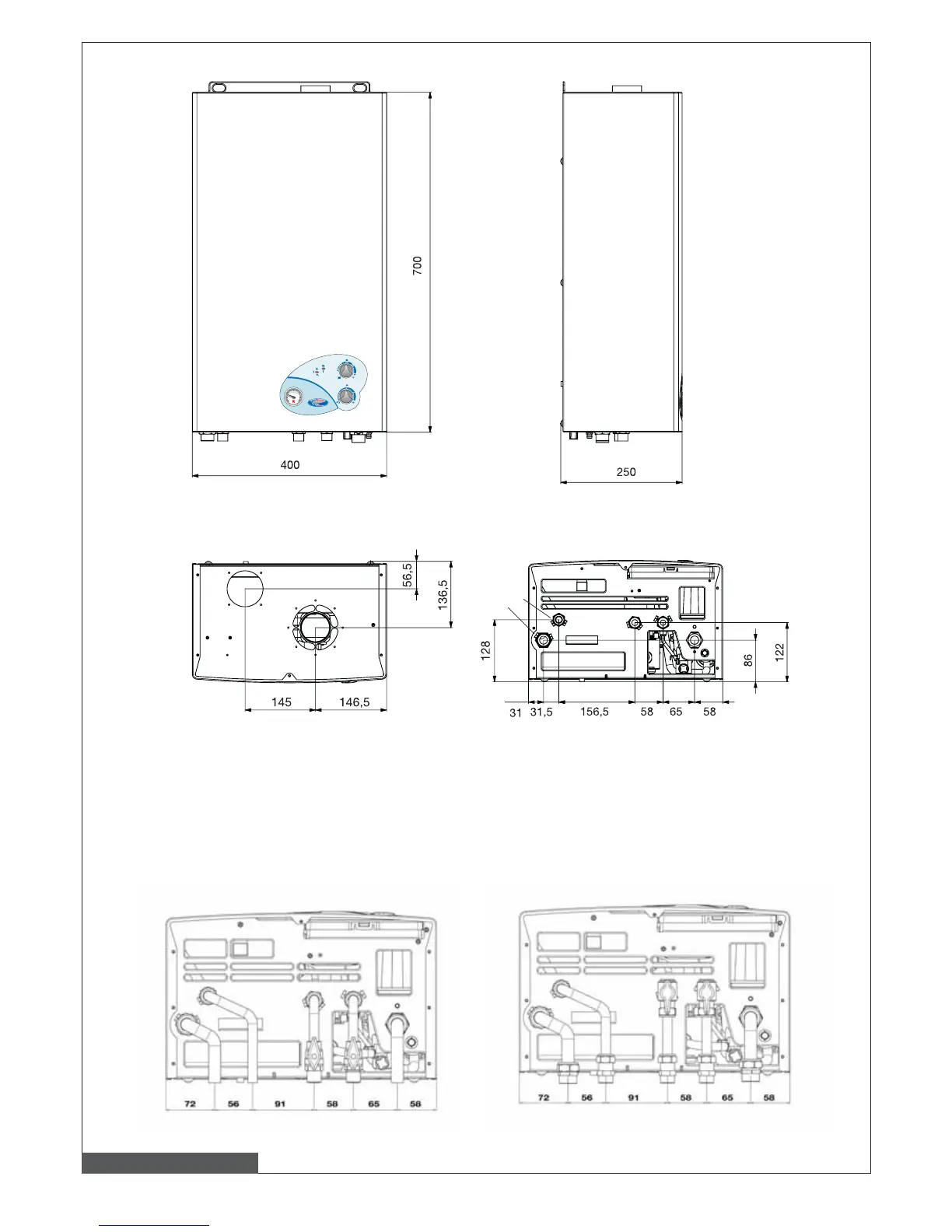

Pic. 4 – CTFS model dimensions
top view bottom view
G Gas inlet (1/2”)
M CH flow (3/4”)
C DHW flow (1/2”)
F Cold water inlet (1/2”)
R CH return (3/4”)
Dimensions for connection to base hydraulic kit (option)
Dimensions for connection to “plus” hydraulic kit (option)
