Controller MCTRL660 User's Manual
www.novastar.tech 14

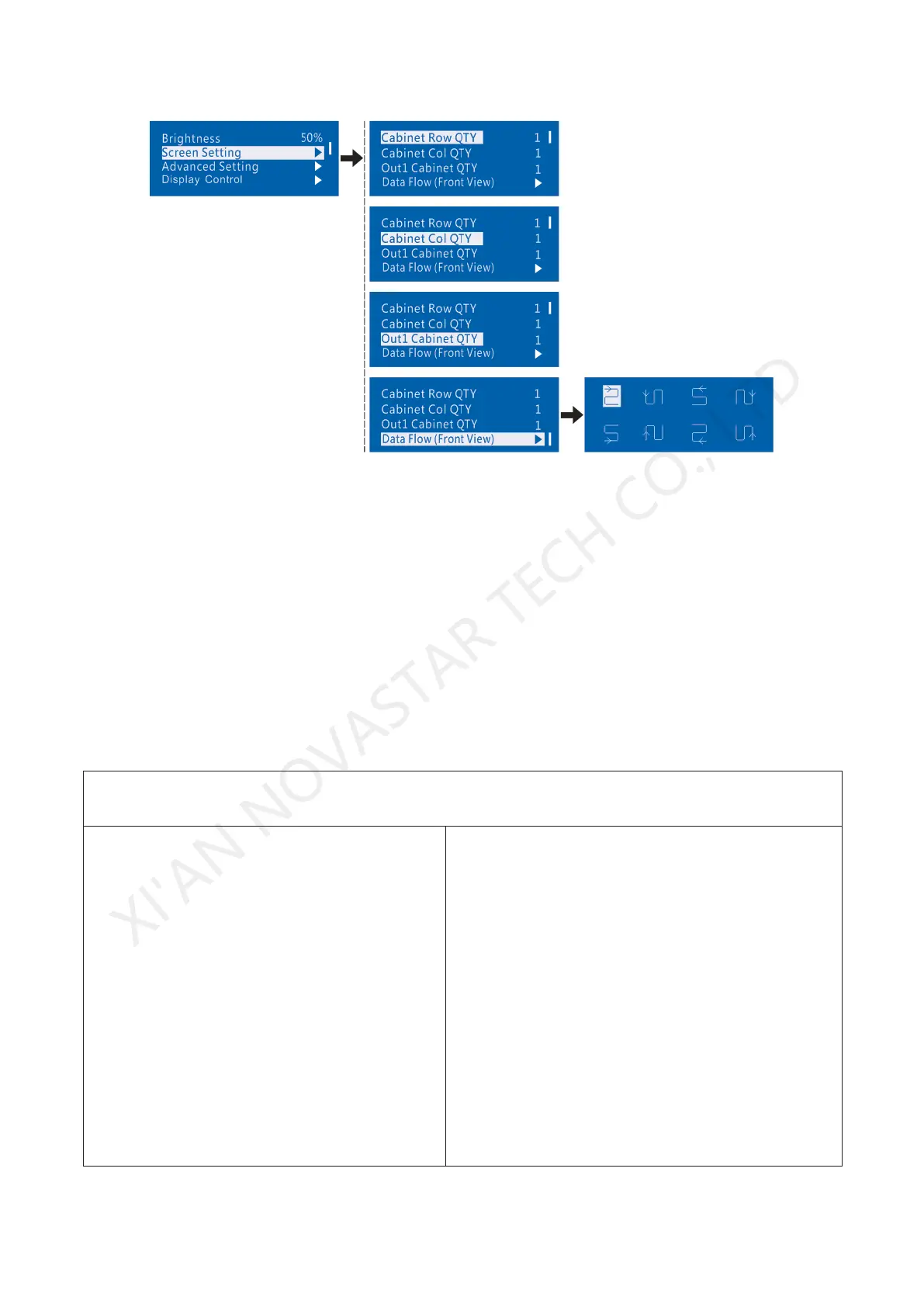

a) Set
Cabinet Row QTY and Cabinet Col QTY according to the actual situation of the screen;
b) Set
Cabinet Out1 Num. The device has some limitations on the cabinet quantity of network
interfaces. For details, see precautions for screen setting
i);
c) Set the alignment of the screen. Pay attention to precautions for screen setting iii), iv) and v)
below;
d) Set the EDID resolution of the video source.
Precautions for screen setting:
i. If the number of network interfaces with
loads is n (n≤4), the first n-
1 network
interfaces must have the same number of
cabinets, which must also be an integral
multiple of the number of cabinet rows or
columns and be greater than or equal to
the number o
f cabinets for the nth
Example:
For example, if network interface 1, network interface
2, network interface 3 have loads, network interface
1 and network interface 2 must have the same
number of cabinets, which must also be an integral
multiple of the number of cabinet rows or columns.
Therefore, you need only to set cabinet out1 QTY
