3 Hardware connection

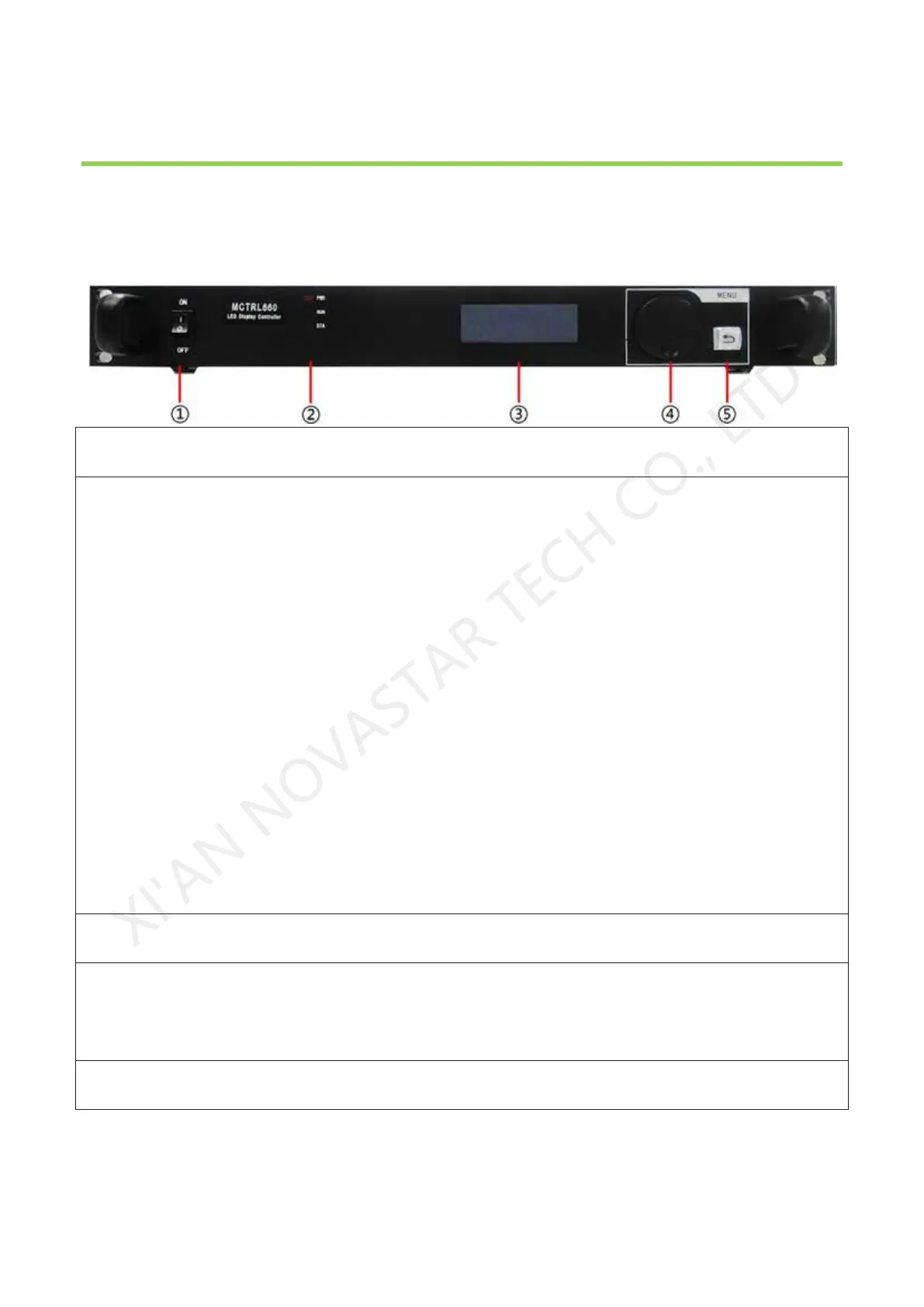

3.1 Front panel
① Power indicator；
② LED Indicator
PWR: Power indicator.
RUN: Equipment running indicator 1.
It blinks slowly when no video source is available. (The light keeps on for 2 seconds and
then off for 2 seconds.).
It blinks normally when the video source is available. (It blinks about twice per second.).
It blinks quickly when start-up screen is displayed.
When the redundancy works, the indicator blinks at a frequency of breathing.
STA: Equipment running indicator 2. It is steady on when the equipment runs normally.
③: Operation screen.
④: Knob: Press the knob to enter the option and rotate the knob
to conduct selection or
adjustment.
⑤: ESC: Exit from the current operation or option.
