NovaStar MCTRL660 - Rear Panel

Controller MCTRL660 User's Manual
www.novastar.tech 9

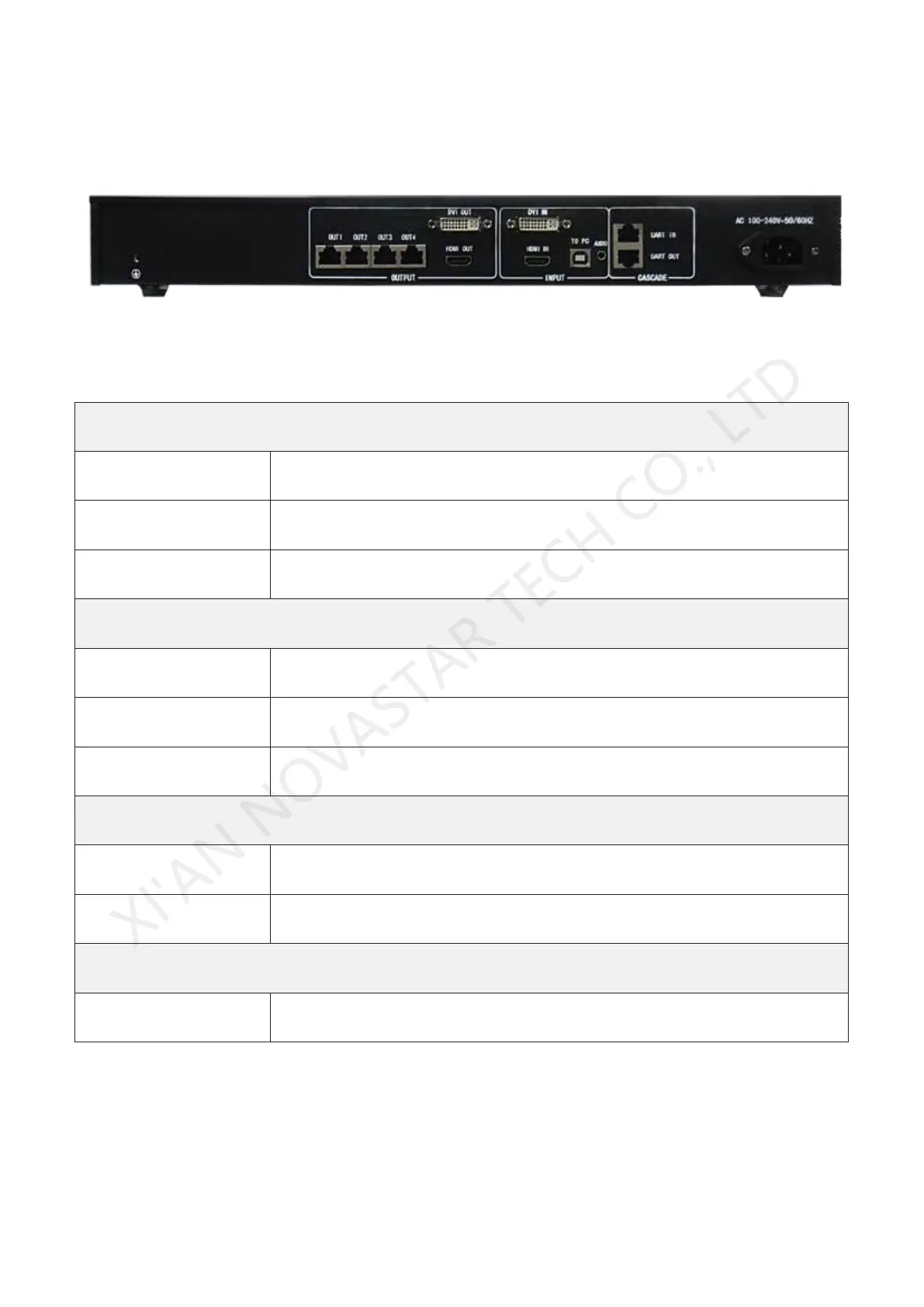

3.2 Rear panel
Notes: The arrangement of interfaces can be slightly adjusted to enhance user experience. Please in kind
prevail.
INPUTS
AUDIO Audio INPUT
HDMI IN HDMI INPUT
DVI IN DVI INPUT
OUTPUTS
DVI OUT DVI OUTPUT
HDMI OUT HDMI OUTPUT
OUT1~4 4 LED OUTPUTS
CONTROL
TO PC Connected to PC , USB Control interface
UART IN、OUT Cascaded INPUT 、OUTPUT
POWER
AC-100-240V-50/60HZ AC Power interface
