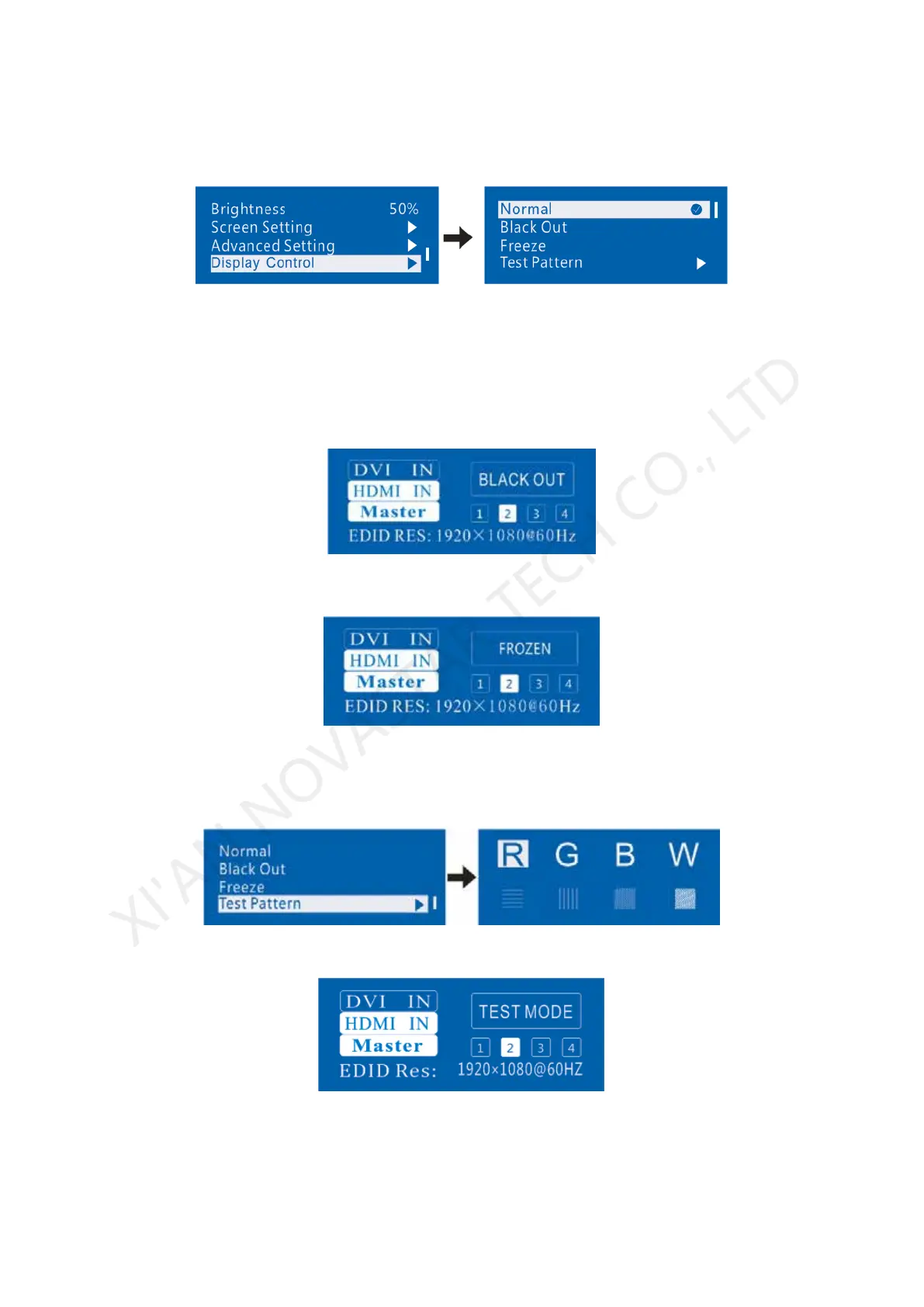

7.5 Display Control
1) Normal: The screen is restored to normal display.
2) Black Out: The screen is black out, then the home page display of MCTRL660 operation screen is as
follows:
3) Freeze: Screen freezes, then the home page display of MCTRL660 operation screen is as follows:
4) Test Pattern: The screen shall be tested through four colors (red, green, blue and white) and four
shapes.
Then the home page display of MCTRL660 operation screen is as follows:
XI'AN NOVASTAR TECH CO., LTD
