Novatech Bitronics 50 Series User Manual

ML0035 September 27, 2017 - 95 - Copyright 2017 Bitronics, LLC
APPENDIX
A1 CT/VT Connection Diagrams

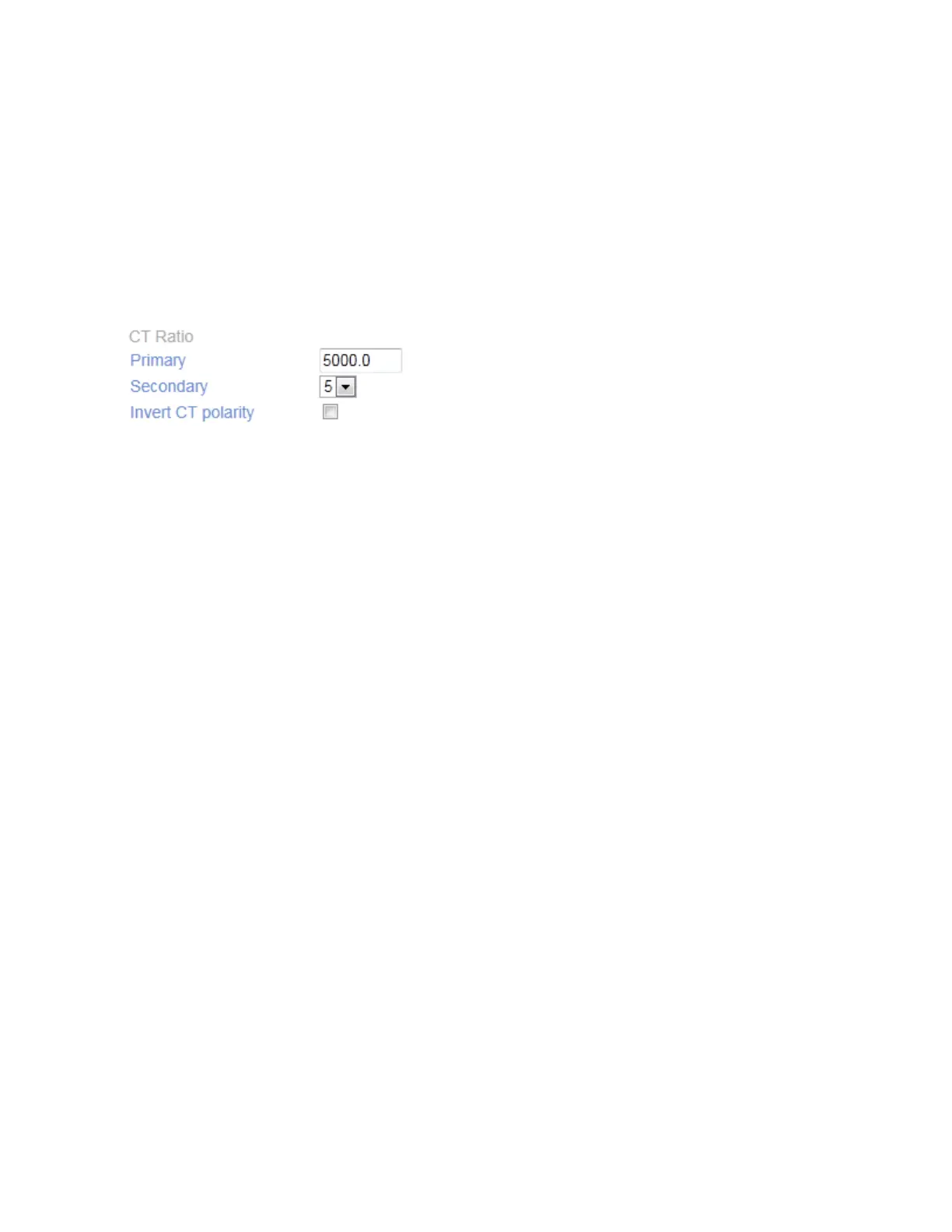

Please note that there is an option on the Settings/Input page to invert the CT Polarity
(see screen shot clip below). This option is the equivalent of swapping the connections
in the connection diagrams below at the HI and LO terminals for each CT input, that is,
swapping 7 and 10, 8 and 11, 9 and 12. The effect is a 180 degree phase shift in the
current signals.
