Novation Impulse User Manual

23
English

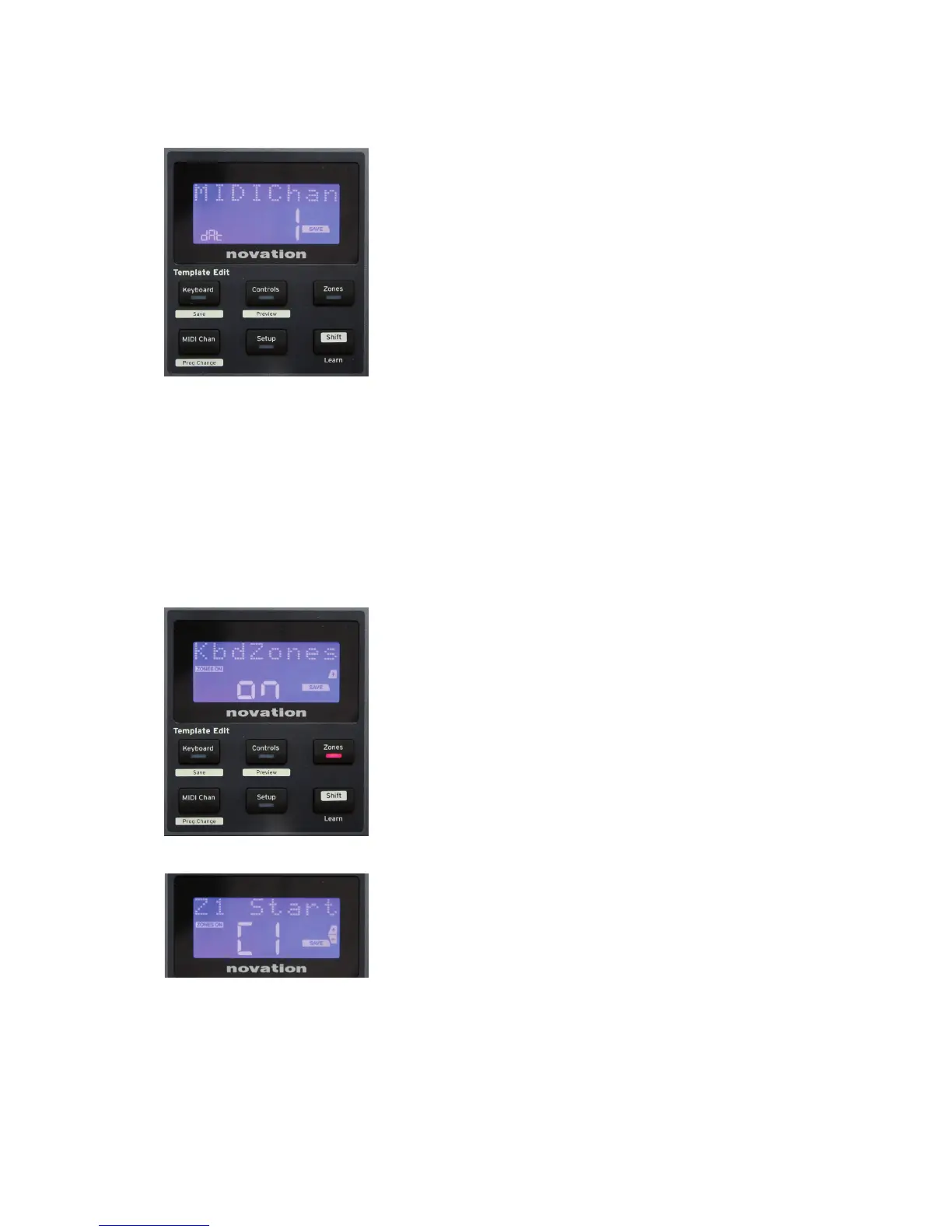

MIDI Channel
MIDI data can be sent on any one of 16 channels, and will
only be received and interpreted correctly if the receiving
device is set to the same channel. Press the MIDI Chan
button to set the channel number.
Use the Data knob to change the MIDI channel number from
the default of 1. Note that MIDI channel numbers are part of
the template, and therefore any changes must be saved to
the template as described above (see “Loading and Saving
a Template” on page 18).
Zones
Normally Impulse’s keyboard uses the same MIDI channel for all its notes. Using Zones, it can
be split into 2, 3 or even 4 separate or overlapping regions. Each Zone can have its own MIDI
channel, port, and keyboard range. This feature can be of tremendous benet when playing
live.
Press the Zones button to enable and congure keyboard zones; the LED in the button lights to
conrm the mode.
Page 1: Zones Enable (KbdZones)
Use the data entry knob to select On or Off (default). When
Zones are set On, a ZONES ON element lights in the
display to remind you that Zones are enabled.
Page 2: Zone 1 Start (Z1 Start)
There are two methods of selecting the lowest note in the
Zone: i) press the note on the keyboard, and its note name
will be displayed; ii) use the data knob to scroll through the
list of available notes.

Novation Impulse Specifications

General

Velocity Sensitive	Yes
Aftertouch	Yes
Faders	9
Knobs	8
Transport Controls	Yes
Arpeggiator	Yes
Keyboard Type	Semi-weighted
Aftertouch Type	Channel
Key Count	25, 49, 61
Pads	8
Display	LCD
MIDI I/O	MIDI In/Out
Power	USB powered
Type	MIDI Controller
Connections	USB, MIDI In/Out, Sustain Pedal
Software	Ableton Live Lite, Novation Bass Station
Pads Type	Velocity-sensitive backlit pads
Controls	Knobs, faders, buttons, pads
Display Type	LCD
Pedal Inputs	Sustain, Expression
Software Included	Ableton Live Lite, Novation Bass Station
Power Supply	USB
Dimensions (49-key)	864mm (W) x 332mm (D) x 100mm (H)
Weight (49-key)	5 kg
