Novation ZeRO SL MkII User Manual

12
AUtoMAP tEMPLAtE oVERVIEW

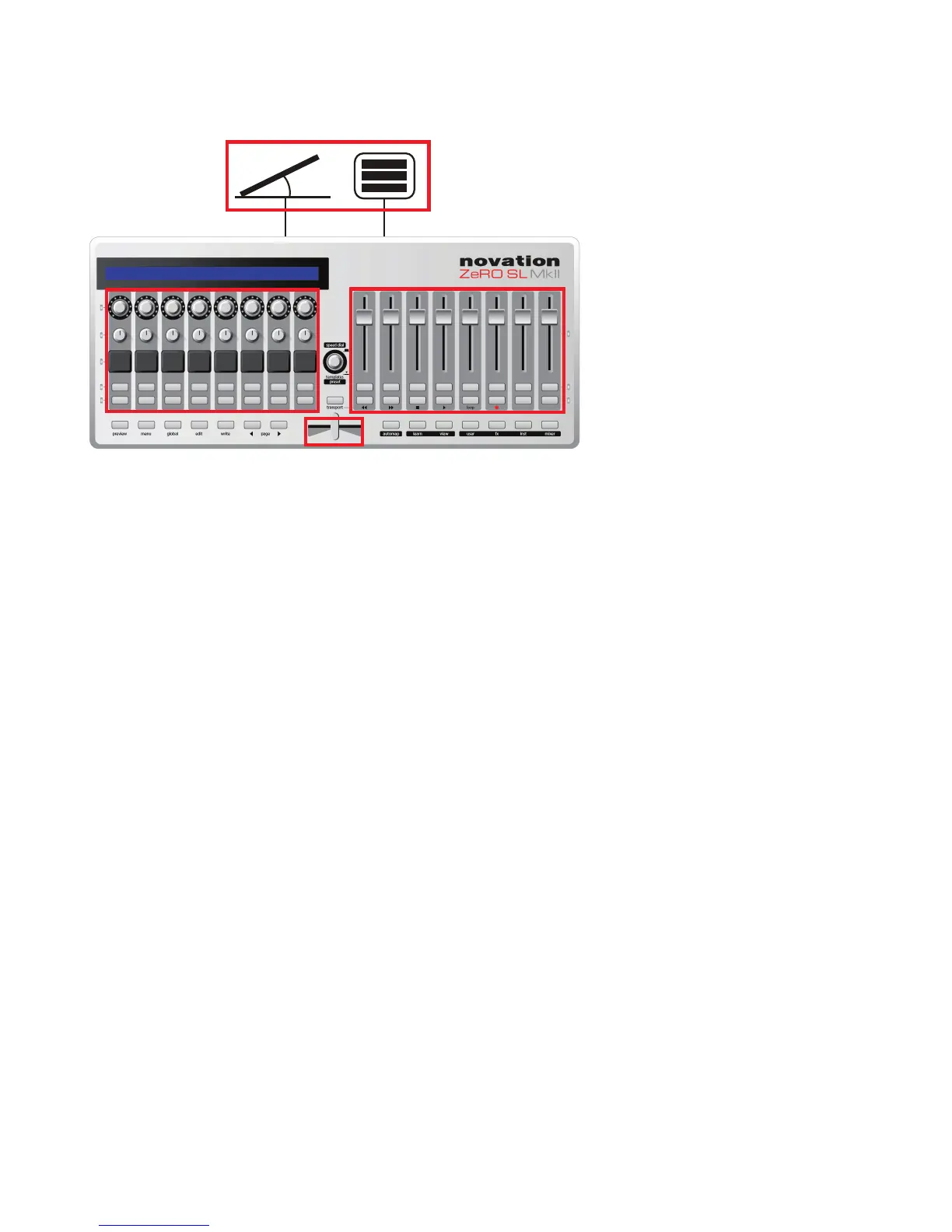

When in Automap Mode (Led On), a unique template is used. This template is separate from the built in 32 templates
in advanced mode. All highlighted hardware controls displayed in the image below are available for controlling software
parameters via Automap.
The following controls can be assigned to either the Automap Port or to the Control port.
Control pedal•
Expression pedal •
Drum pads•
When switched out, they are routed to USB Port 1 and send standard MIDI messages. When switched in, they are
routed to the Automap client and therefore are not sending standard MIDI messages.
Page Up / Down buttons - scroll through pages of an Automap mapping.
Hold Preview button and press Page Up / Down buttons - scroll through presets of an Automap plug-in. Preset
navigation will only work where a plug-in uses the host preset navigation system, rather than it’s own built-in one.
Hold Preview and touch or press any assignable control to display that row’s controls on the ZeRO SL MkII’s LCD screen.
For example, by holding the Preview button and touching the third vertical fader, the parameter names and values
assigned to all eight faders are displayed on the LCD.
SPEED DIAL
The speed dial knob has 2 functions in Automap Mode.
Speed Dial mode: The speed dial can be used to control any on-screen parameter that can be altered using the mouse.
Simply move the mouse cursor over the parameter you want to change then rotate the knob to control it.
This process can be used for e.g. altering parameters on a soft-synth, controlling mixer parameters in your sequencer,
selecting an option from a drop-down menu or resizing a window. The Automap Server software must be running for
this function to work.
Preset mode: Press and rotate the knob whilst held down to select different plug-in presets. Preset navigation will only
work where a plug-in uses the host preset navigation system, rather than it’s own built-in one.
Expression Control

Novation ZeRO SL MkII Specifications

General

Mixer section	Yes
Product color	Silver
Scratcher type	-
Display type	LCD
USB connector type	USB Type-B
Power supply type	USB
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 x64

Weight and Dimensions

Depth	200 mm
Width	445 mm
Height	68 mm
