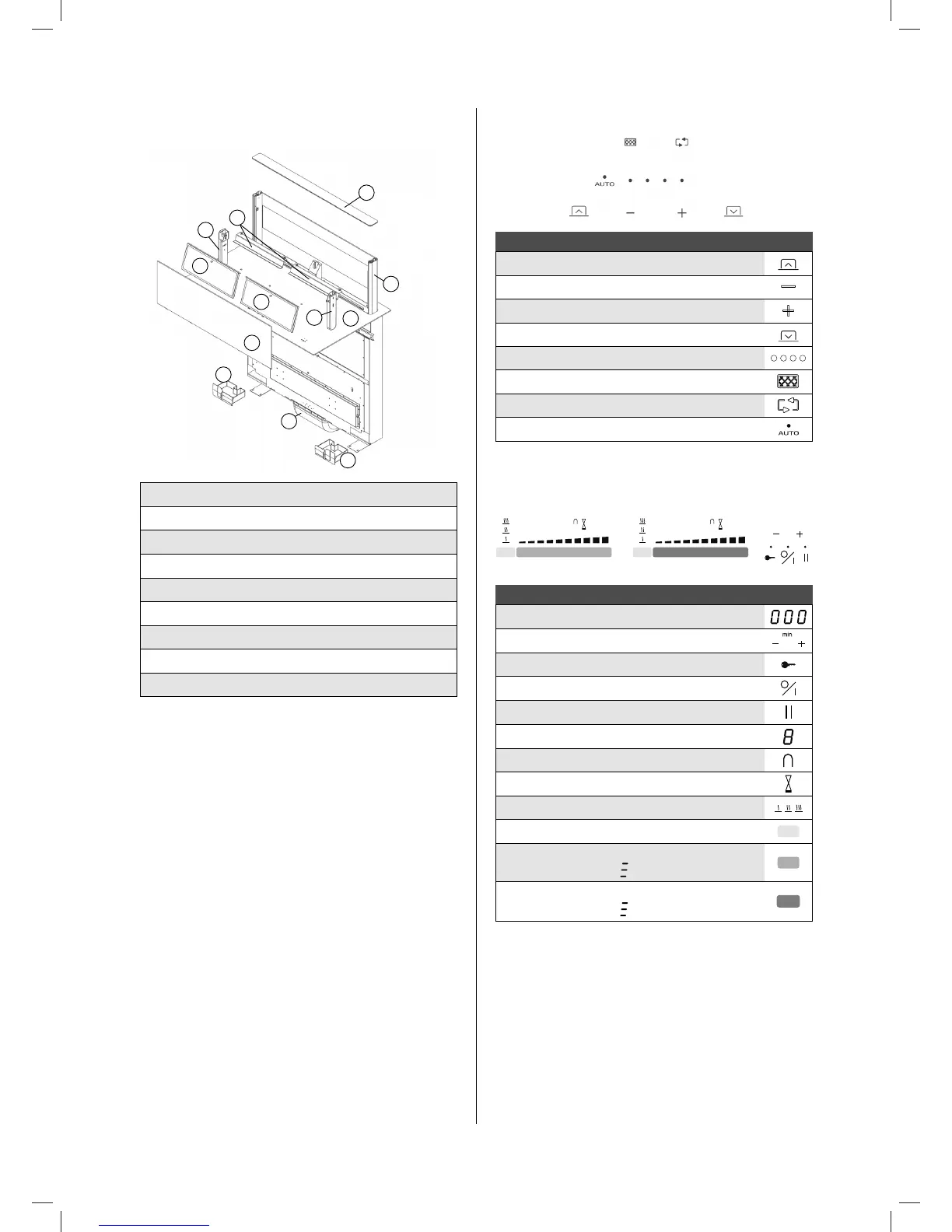

3.4 Global overview
1
2
3
3
4
4
5
6
7
8
8
9
1
Upper glass extraction tower
2
Collection safety
3
Upper collection container
4
Grease lter
5
Front glass extraction tower
6
Induction cooking
7
Extraction tower
8
Lower collection container
9
Connection elbow
3.4.1 Control Panel extraction hood
Extraction control
Switch on/lift extraction tower position
Decrease extraction speed
Increase extraction speed
Switch o/lower extraction tower position
Extraction speed indication
Cleaning indication for grease lter
Cleaning indication for recirculation lter (optional)
Preset extraction function
3.4.2 Hob control panel
8
000
min
8
Hob control
Indication of the timer time
Timer control keys
Locking control key
Switch hob on/o
Stop & Go control key
Power level indication
Bridge function lamp
Timer indication
Keep warm position indication
Keep warm zone control key
Zone for rear slider control
Zone for grill activation
Zone for front slider control
Zone for grill activation
