MOUNTING INSTALLATION

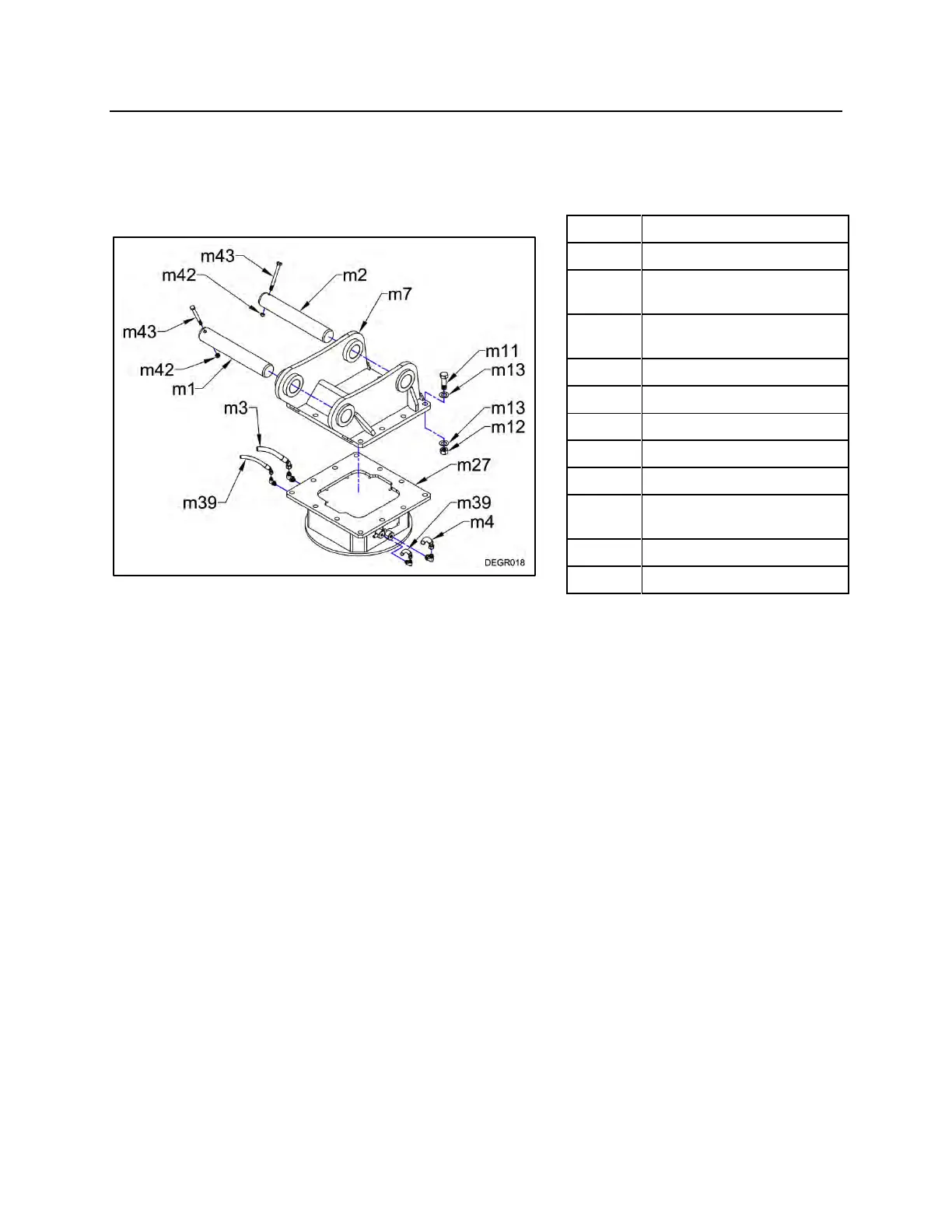

NPK Mounting Installation Kits include the parts required to adapt the NPK Demolition
Grab to the stick or arm of the excavator. The kits include all necessary stick and link
pins, bolts, etc.
m1
STICK PIN (optional)
m2
LINK PIN (optional)
m3
WHIP HOSE - CLOSE
(optional)
m4
WHIP HOSE - OPEN
(optional)
m7
TOP BRACKET
m11
BRACKET BOLT
m12
HEX NUT
m13
WASHER
m27
SWIVEL TOP
m39
ROTATION HOSE
(optional)
m42
HEX NUT
m43
PIN BOLT
