47

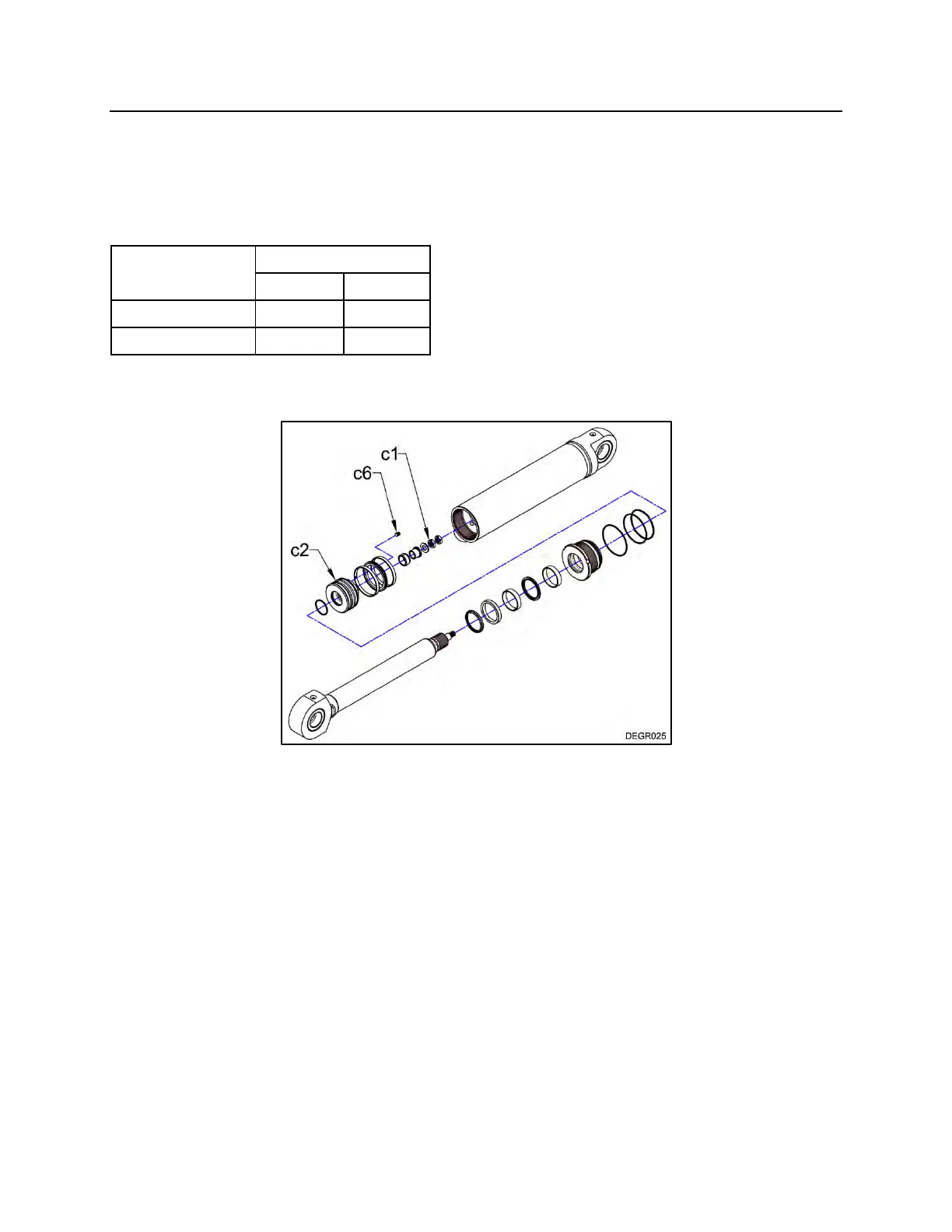

CYLINDER TORQUE SPECIFICATIONS
ROD NUT AND PISTON TORQUES
The torques listed below, are for the rod nut (c1) and piston (c2) used in the cylinder
assembly for the NPK Demolition Grab. When assembling during rebuild, it is also
recommended that thread adhesive is used to ensure complete clamping.
TORQUE
ft. lbs.
(Nm)
PISTON (c2)
1106
(1500)
ROD NUT (c1)
29.5
(40)
Apply a small amount of thread adhesive to the set screw (c6) before installing.
