NPK
- 13 -
MOUNTING INSTALLATION
NPK Mounting Installation Kits include the parts required to adapt the NPK HYDRAULIC
HAMMER to the carrier. NPK mounting kits include the top bracket (m7), flow control
valve (if required), and hoses to connect to the carrier hydraulic system.
Refer to HAMMER FASTENER TORQUE section for top bracket bolt torque.
Refer to NPK Installation Kit Manual for additional information.

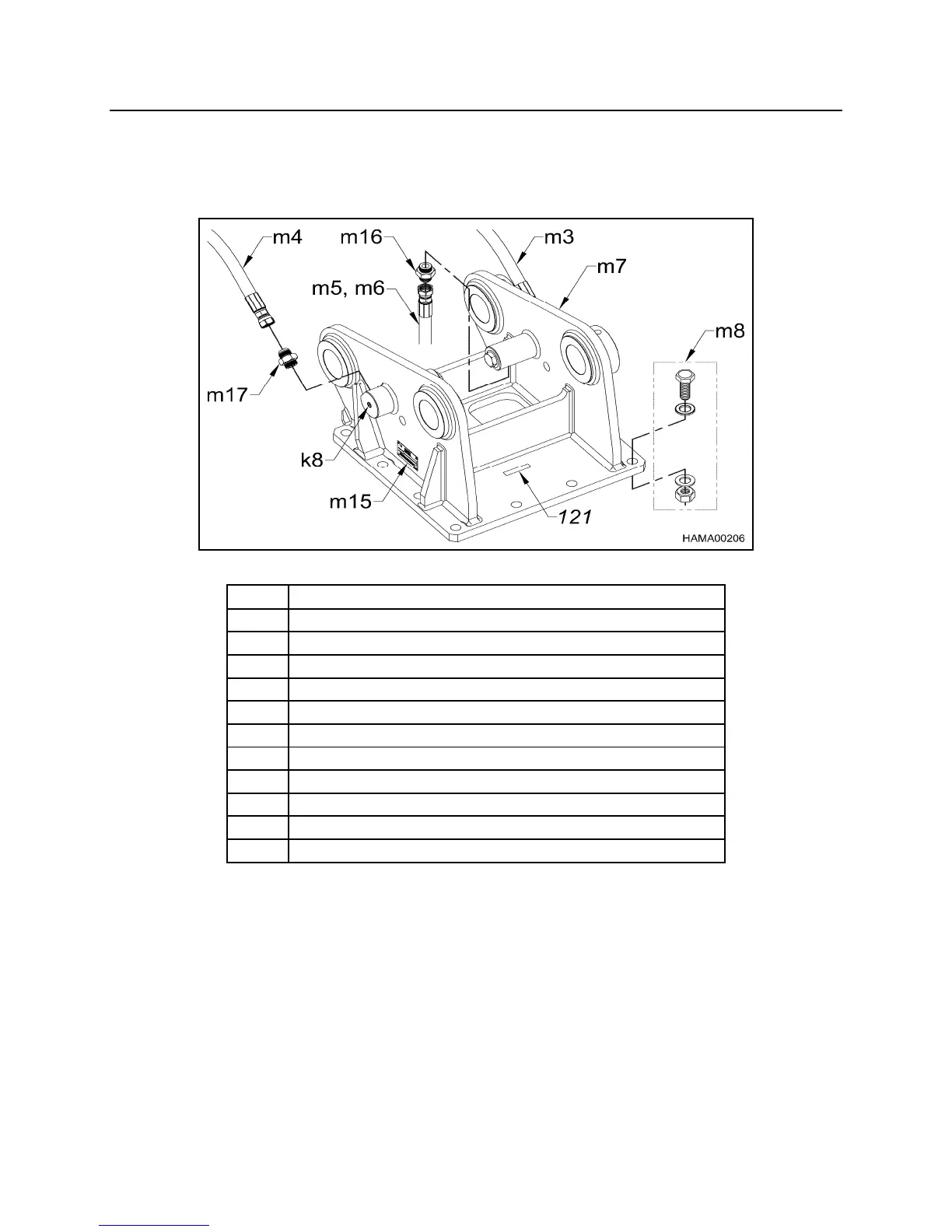

ITEM DESCRIPTION
k8 TEST PORT
m3 WHIP HOSE (PRESSURE)
m4 WHIP HOSE (RETURN)
m5 HAMMER HOSE (PRESSURE)
m6 HAMMER HOSE (RETURN)
m7 TOP BRACKET
m8 BOLT PACKAGE
m15 I.D. TAG
m16 INSIDE MALE ADAPTER FITTING
m17 OUTSIDE MALE ADAPTER FITTING
121 BRACKET PART NUMBER STAMP
