NPK
- 19 -
LUBRICATION
AUTOLUBE GREASE LINE PRE-FILLING
It is mandatory that the supply line from the Autolube main pump to the connection on
the hammer is primed with grease before it is used. Failure to do this will result in no
grease being administered to the hammer tool for two to three hours. This can and will
result in severe galling of the tool and tool bushing.

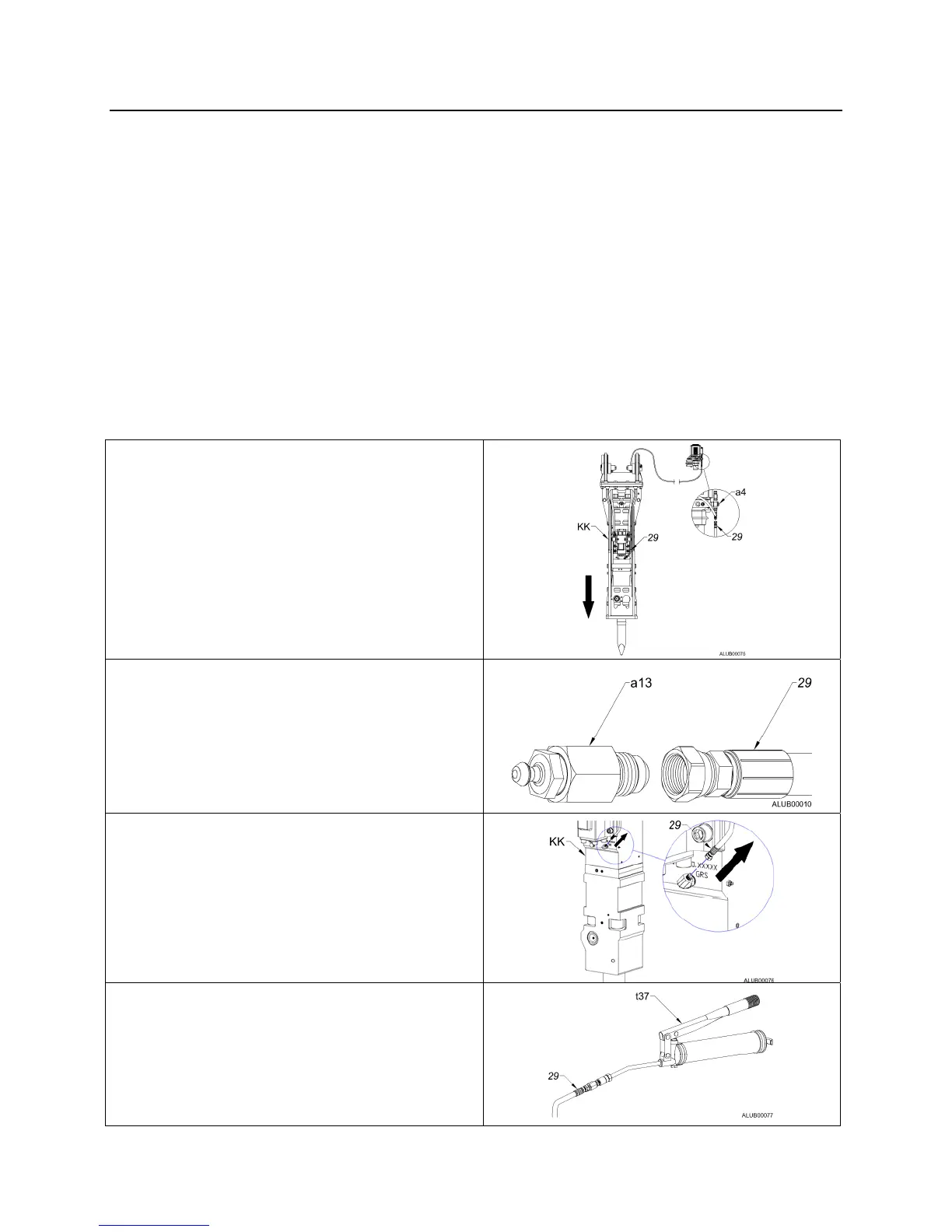

PRIMING THE GREASE LINE
1. Place the hammer (KK) in a vertical position, applying enough down force to push the
tool up into the hammer.
2. Turn the machine off.
3. Fill the NPK Autolube pump reservoir with a power greaser through the fill fitting on
the side of the pump, or from the top by removing the fill cover. Use a premium
quality grade EP-2, high temperature grease with wear inhibiting additive.
4. Disconnect the grease line (29) from the
Autolube main pump cartridge (a4).
5. Install part number G100-8050 hose fill
adapter (a13) onto the #6 JIC end of the
grease line (29) previously removed.
6. Remove the grease line (29) at the
hammer (KK).
7. Attach a grease gun (t37) or power
greaser to the grease line (29) leading to
the hammer.
