- 49 -

TOOLS

TOOL IDENTIFICATION

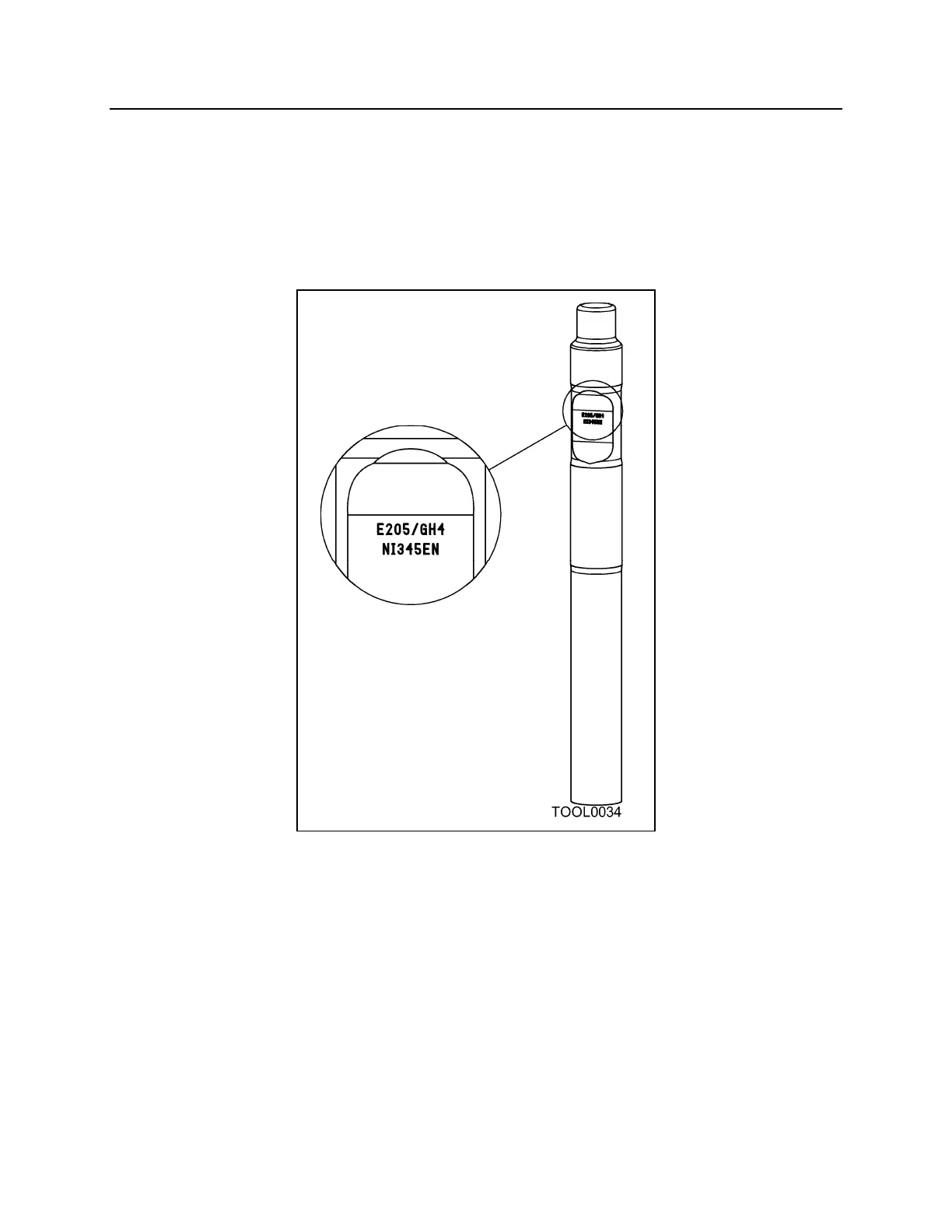

NPK demolition tools can be identified by the numbers found stamped in the retaining

pin slot area. These numbers must be included in all warranty correspondences

regarding a broken tool. Photos must also be included.
