- 57 -

TOOLS

TOOL RETAINING PIN INSPECTION

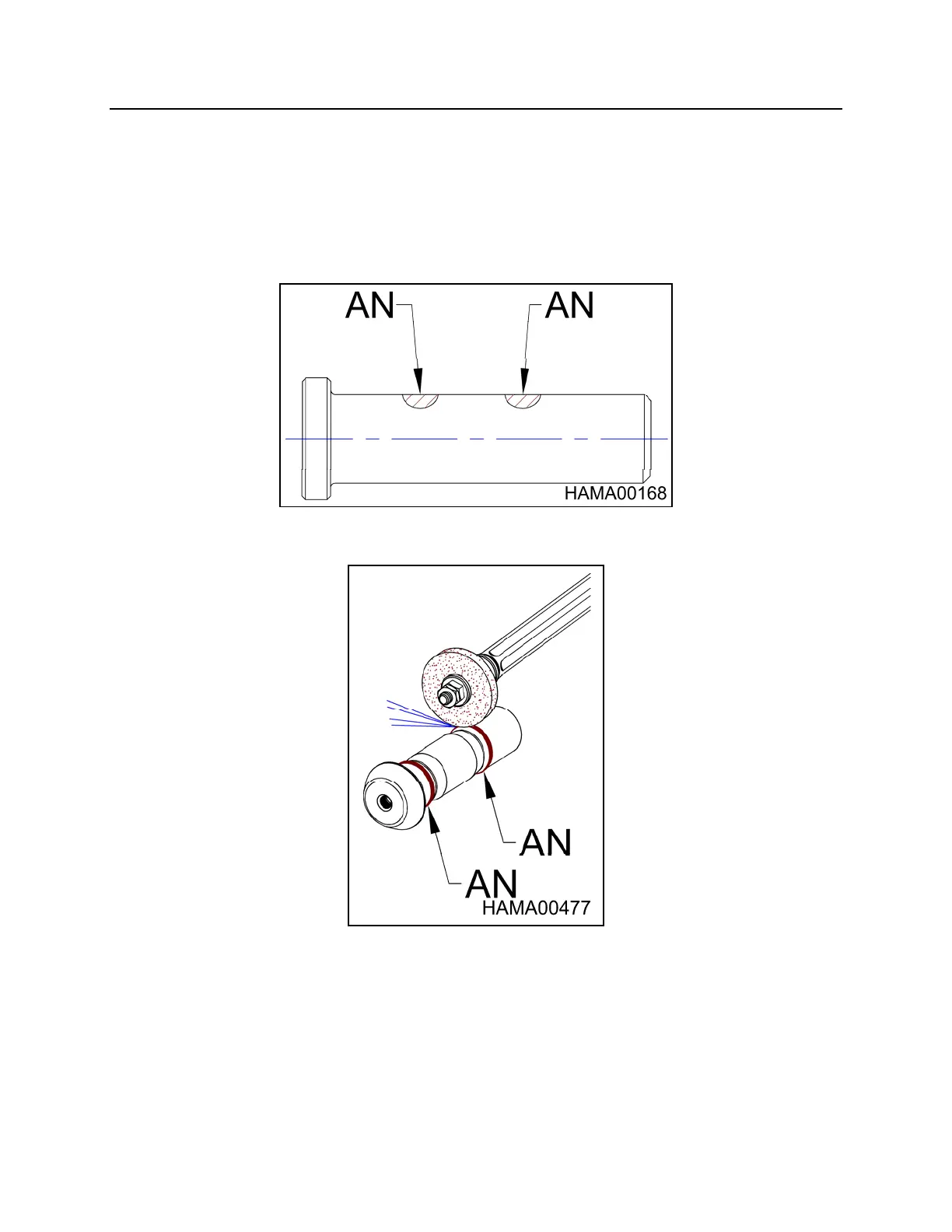

Deformation may occur on the retaining pin in the tool contact area (AN). If this area is

mushroomed, the retaining pin may become difficult to remove. Dress areas shown

(AN) with a grinder.
