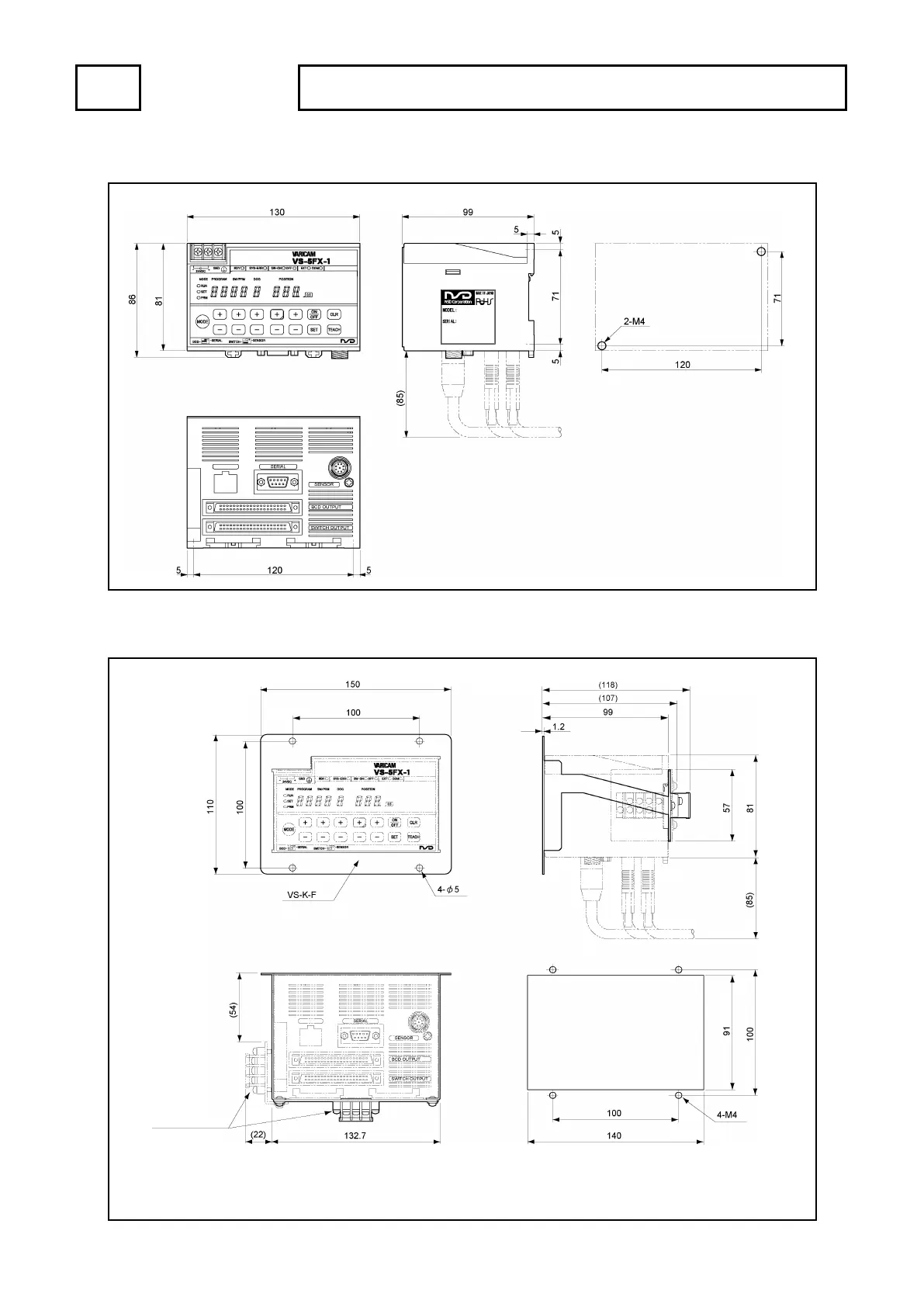

SPECIFICATION 4. OUTER DIMENSIONS
●VS-5FX-1
(VS-5FX is same size as VS-5FX-1.) Units: mm
●VS-K-F (Panel-mounting fixture)
VS-K-F can be used with all VS-5F series.
Mounting hole
Blank
Panel cut dimensions
mounting position
The terminal block for relay of the power supply is able to mount on the back or side.
*1: Depth when installing the terminal block on the back.
*2: Depth when installing the terminal block on the side.
*2
To Next Page
