INTRODUCTORY 5. INSTALLATION
5. INSTALLATION
The handling procedures from the point of delivery to system installation are described in this chapter.

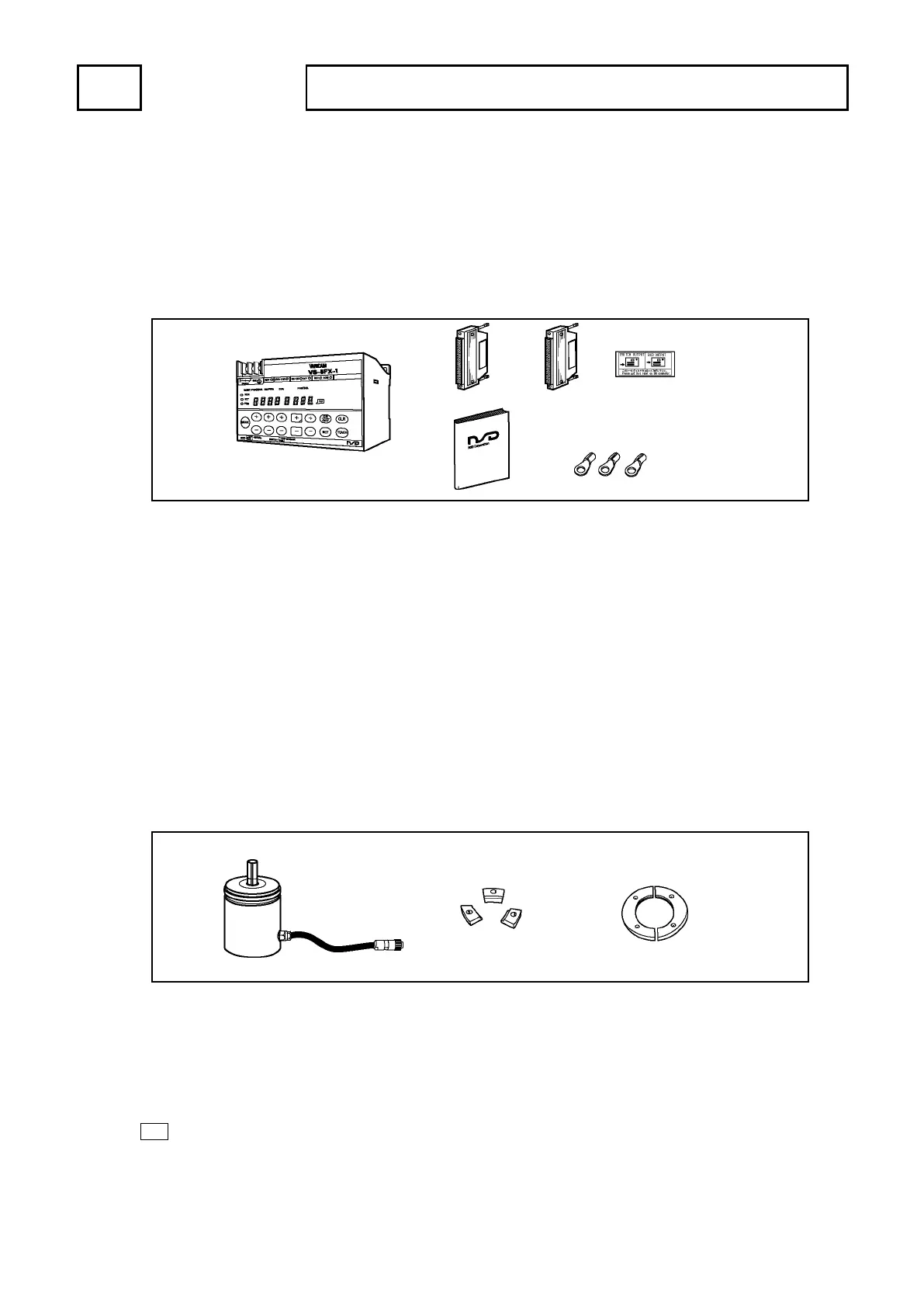

5-1. Checking the Contents of the Shipping Case
Open the packing case, and verify that all items are present.
(1) VARICAM
① VARICAM unit 1 unit
② Switch output connector 1 piece Connector: FCN-361J040-AU Cover: FCN-360C040-E
Manufacturer: FUJITSU COMPONENT LIMITED
③ BCD connector 1 piece Connector: FCN-361J040-AU Cover: FCN-360C040-E
(Accessory for VS-5FD(-1) and VS-5FX(-1).) Manufacturer: FUJITSU COMPONENT LIMITED
④ Connector identifying seal 1 sheet
It is a seal for identifying a switch output connector and a BCD connector
(Accessory for VS-5FD(-1) and VS-5FX(-1).)
of VS-5FD(-1) and VS-5FX(-1). Puts a seal on the connector.
⑤ Instruction manual 1 piece
⑥ Crimping terminal 1.25-3 3 pieces Manufacturer: NICHIFU Co.Ltd.
(Accessory for VS-5F, VS-5FD, and VS-5FX.)
(2) ABSOCODER
① ABSOCODER 1 unit
② Servo-mount fixture 1 set (Accessory)
(Accessory for Servo-mount type)
③ Reinforced servo-mounting fixture 1 set (Sells separately)
Note
When an extension sensor cable and panel-mount fixture (VS-K-F) are ordered, they are packed separately.
The flange-mount type of ABSOCODER does not attach the servo-mounting fixture.
① ② ③ ④
⑤ ⑥
① ② ③
(3 pieces / 1set) (2 pieces / 1set)
