OPERATION 8. HOW TO USE APPLIED FUNCTIONS (PARAMETER)
8-3. Protected Switch Function
This function is applicable with all VS-5F Series.
Switch No. 1 to 10 is able to use as the protected switch by setting the parameter No.96.
After the parameter No. 95 (protected switch cancel) is set, changes the setting value of the switch output which is
set as a protected switch.
● Parameter list
No. Name Description Setting range
Initial
value
Reference for
setting procedure
(Chapter No.)
96
Protected switch
Selects whether or not the protected switch
function is to be used.
The switch Nos. 1 to 10 is set as the protected
switch when selecting “1:VALID”.
0: INVALID
1: VALID
0
8-1-1
8-3-1
95
Protected switch
cancel
The protected switch setting value can be
changed by selecting “1:cancel”.
After selecting “1: Cancel”, change the
setting value by selecting the switch
setting (SET) mode.
If the operation (RUN) mode is selected,
canceling will be disabled.
0: Do not cancel
1: Cancel
0
8-1-1
8-1-2
8-3-1. Protected Switch Setting Procedure
The protected switch is set in the parameter setting (PRM) mode.
For mode selection methods, refer to the “8-1-1. Selects the Parameter Setting (PRM) Mode”.

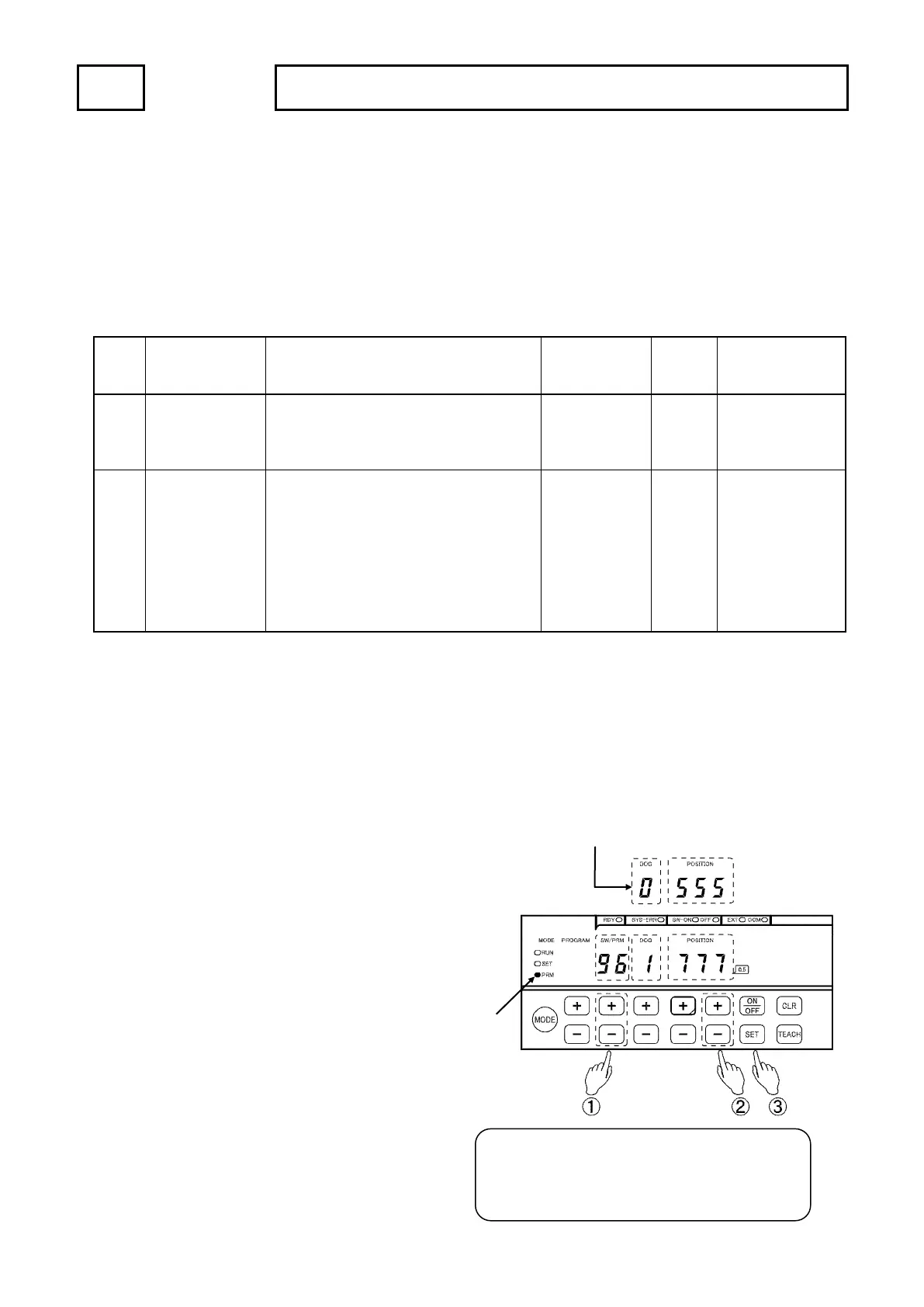

①
Select the parameter No. 96.
Selects “96” by pressing [+] or [-] key
of SW / PRM.
②
Inputs the pass word.
Inputs the password by pressing [+] or [-] key
of POSITION, and then POSITION display
area will be blinking.
Password
777: Use the protected switch
555: Not use the protected switch
③
Enters the protected switch.
Presses [SET] key, and then POSITION
display area turns ON.
The protected switch setting is completed.
POINT
The password of protected switch is different from
the password of "MODE" change.
Input the password of protected switch.
Displays the setting value
when inputting the password.
PRM LED
is ON
