OPERATION 8. HOW TO USE APPLIED FUNCTIONS (PARAMETER)

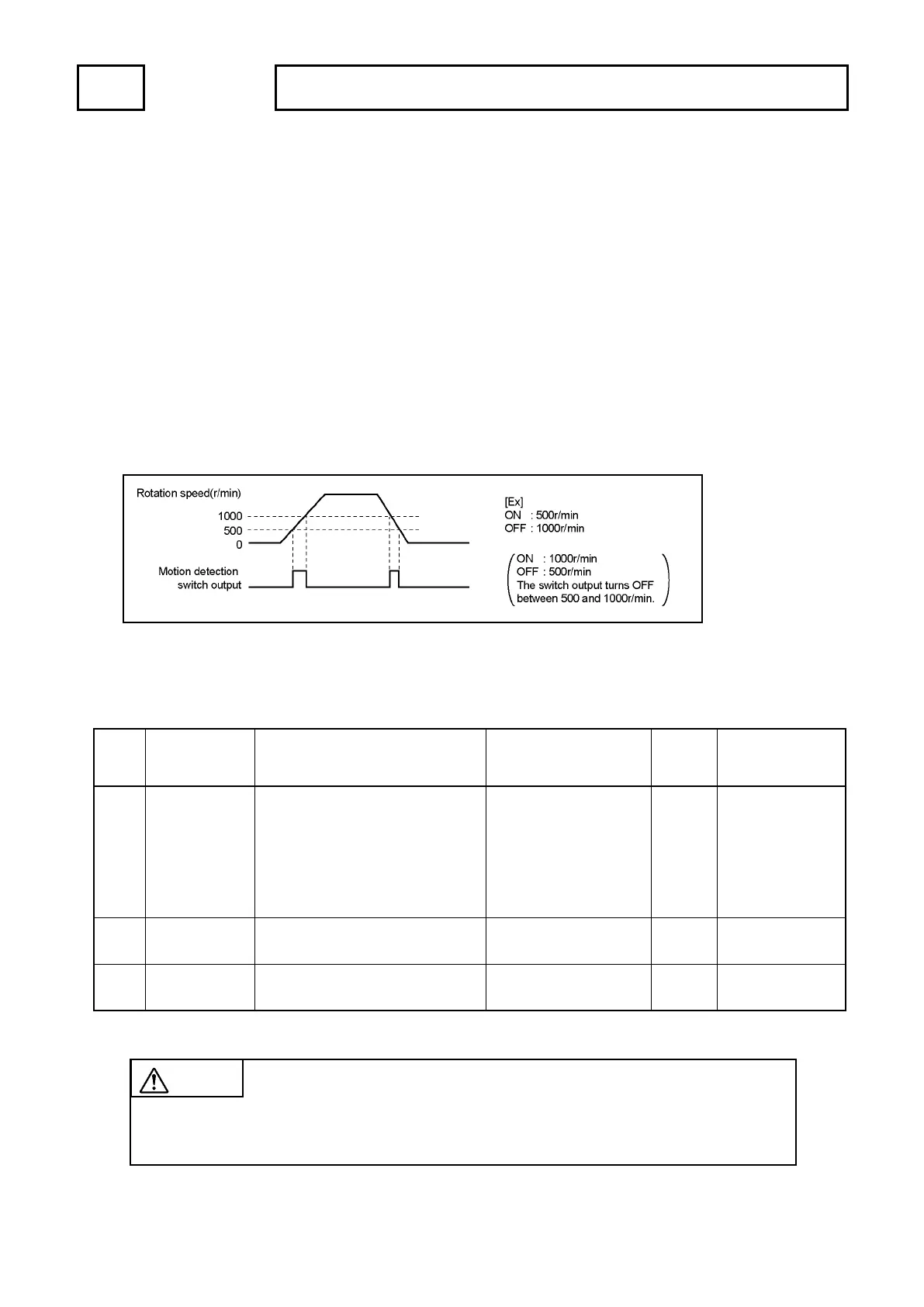

8-5. Motion Detection Switch Function
This function is applicable with all VS-5F Series.
This switch output turns ON or OFF when rotation speed of the machine (ABSOCODER) achieves the setting speed.
According to the setting value of the rotation speed, this function outputs the ON/OFF signals to following connectors.
VS-5F(-1) : A5 pin of the switch output connector
VS-5FD(-1) : A5 pin of the switch output connector, B11 pin of the BCD output connector
VS-5FX(-1) : B11 pin of the BCD output connector
This function is that selects”3: Motion detection switch” by the parameter No. 93 (Timing pulse).
The setting range of the rotation speed is 0 to 6000r/min, and it is set by the following parameters.
ON setting: Parameter No. 74 (Motion detection switch ON)
OFF setting: Parameter No. 75 (Motion detection switch OFF)
● Parameter list
No. Name Description Setting range
Initial
value
Reference for
setting procedure
(Chapter No.)
93
Timing pulse
Changes the timing pulse and motion
detection switch function.
Timing pulse function is selecting
number of output pulses per revolution.
0: 360 pulses
Display: 360
1: 180 pulses
Display: 180
2: 60 pulses
Display: 60
3: Motion detection switch
Display: Spd
0
8-1-1
8-1-2
75
Motion detection
switch OFF
Designates a value that the motion
detection switch output turns OFF.
0 to 6000 r/min 0
8-1-1
8-1-3
74
Motion detection
switch ON
Designates a value that the motion
detection switch output turns ON.
0 to 6000 r/min 0
8-1-1
8-1-3
CAUTION
If “motion detection switch” is selected by the parameter No. 93 (Timing pulse), “timing pulse”
function cannot be used.
