NSD VARICAM VS-5F Series User Manual

113

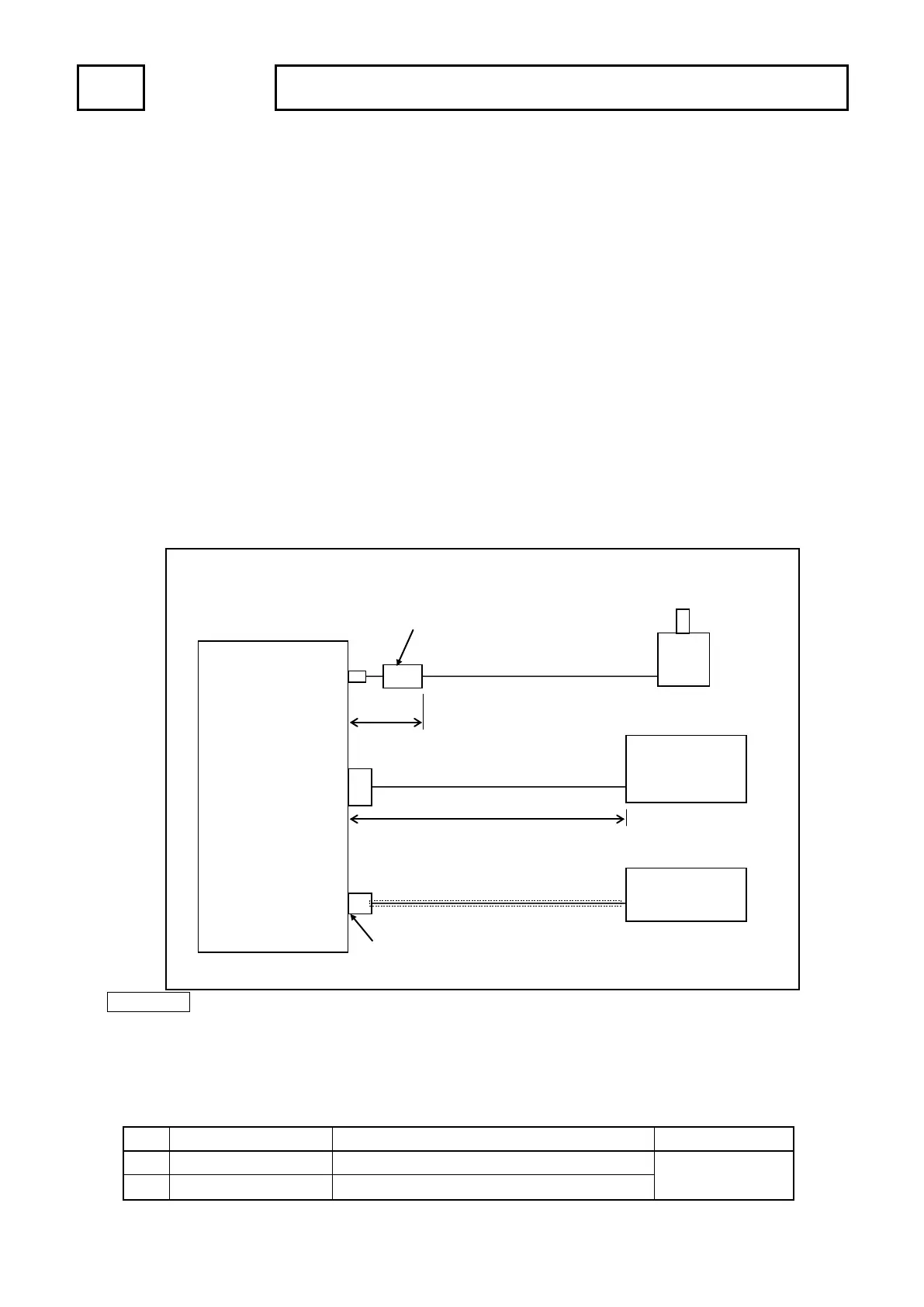

APPENDIX APPENDIX 2. CE MARKING
APPENDIX 2-4. Measures for EMC Compliance and Restriction
Describes measures for EMC compliance and restriction when testing the compatibility verification.
(1) Sensor cable
Mounts the clamp filter on the sensor cable.
Mounts the clamp filter within 200mm from VARICAM. ( ① in the figure )
(2) I/O cable
I / O cable which connects to the switch output connector and BCD output connector is under 30m.
( ② in the figure )
(3) Communication cable
A cable which connects to the communication connector must use with a shield, and the shield is connected to
mounting screw.
The cable is used metallic shell connectors when NSD tested, and the cable shield is connected to the screw part
of the connector. ( ③ in the figure )
Reference
It may be improved when clamp filter is added to the power supply cable, and I/O cable.
- In the case of it operates faultily by the influence from the peripheral device
- In the case of it is effect to reduce the conduction and radiation noise
Recommendation Clamp Filter
Mounting location Clamp Filter model Manufacturer
1
I / O cable
ZCAT3035-1330 (Inner dimensions:
φ
13)
TDK
2 Power supply cable ZCAT2032-0930 (Inner dimensions: φ9)
The cable shield is connected to the
screw part of the connector.
Within
200mm
VARICAM
VS-5F-1
VS-5FD-1
VS-5FX-1
ABSOCODER
Sensor cable
①
Clamp filter (Option)
ZCAT2032-0930 (Inner dimensions: φ9)
Host controller
30m or less
②
I/O cable
with shield
③
Communication cable
Host communication device
