OPERATION 8. HOW TO USE APPLIED FUNCTIONS (PARAMETER)

8-7. Hysteresis Function

This function is applicable with all VS-5F Series.

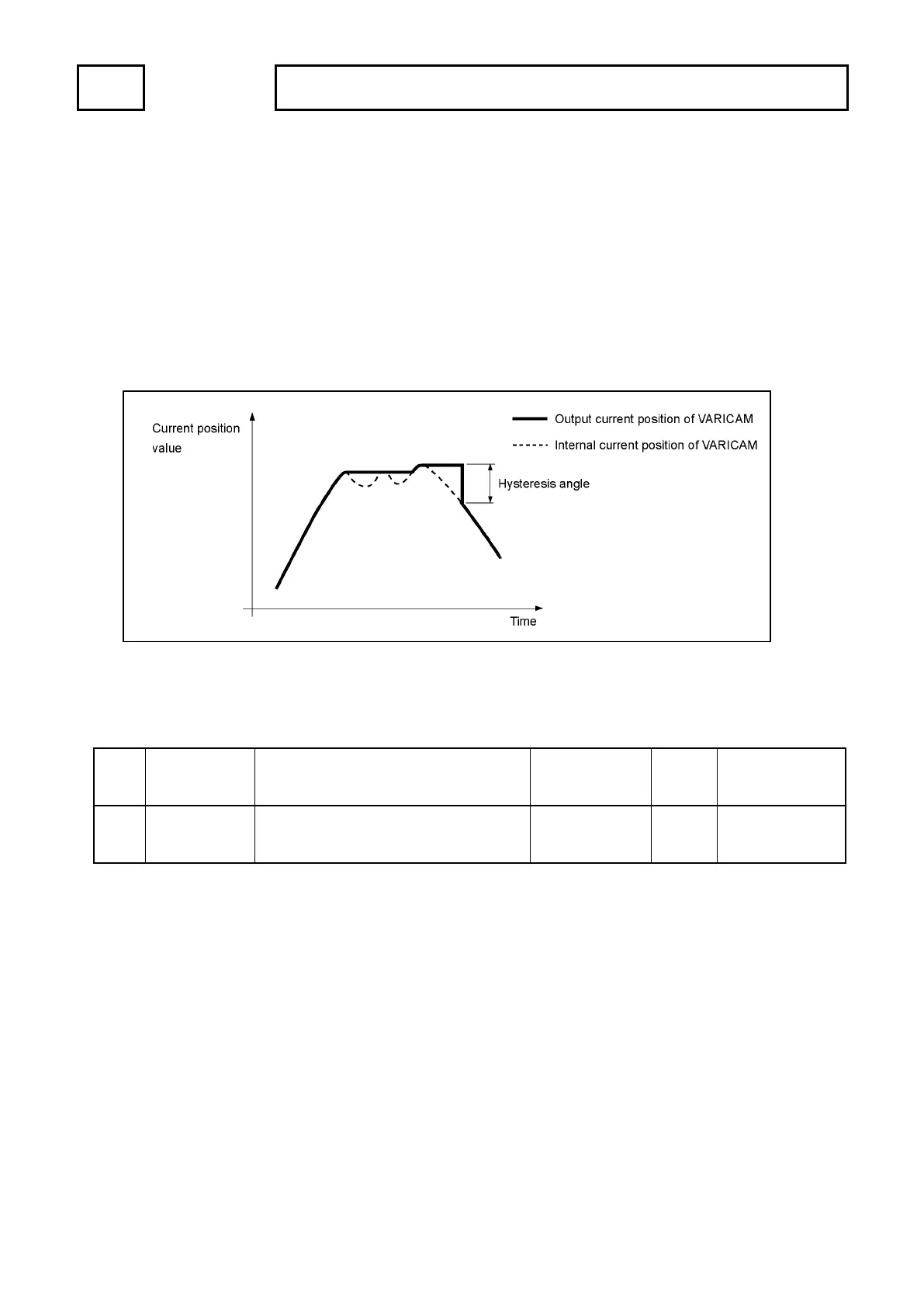

When the rotation direction of ABSOCODER’s shaft reverses, this function keeps the current position value before

reversing until the value exceeds the setting value.

This function is used when flicking the current position value even though machine is stopped.

If the switch output repeatedly turns ON or OFF, this function can stabilize the switch output.

This function sets by the parameter No. 40 (Hysteresis angle).

● Parameter list

No. Name Description Setting range

Initial

value

Reference for

setting procedure

(Chapter No.)

Hysteresis

angle

Designates a hysteresis angle when controlling

flickers of the current position value.

Setting unit is 0.5

0.0 to 10.0° 0

8-1-1

8-1-3
