OPERATION 8. HOW TO USE APPLIED FUNCTIONS (PARAMETER)
8-8. Switch Output Enabling Function
This function is applicable with all VS-5F Series.
This is a function that controls whether permit switch output or not by inputting the signals to B4 pin of the switch
output connector. This function is very convenient to turn off the switch output when there is no workpiece.
The numbers of switch output which is controlled at this function sets by the parameter No. 90 (Switch output
enabling range).

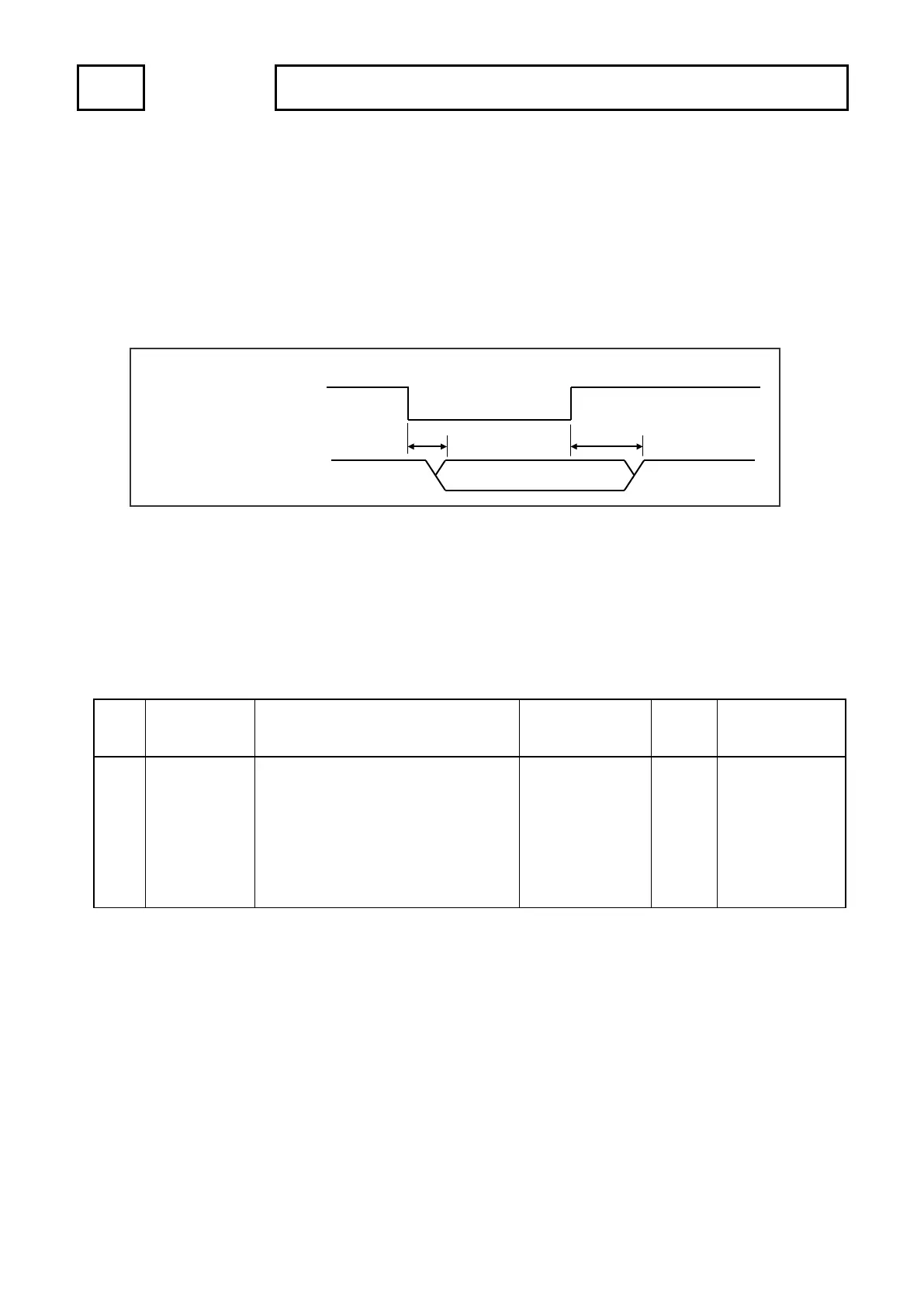

T1: Time from turning ON the “switch output enabling input” to enabling the switch output
T1≦3ms
T2: Time from turning OFF the “switch output enabling input” to disabling the switch output
T2≦3ms
● Parameter list
No. Name Description Setting range
Initial
value
Reference for
setting procedure
(Chapter No.)
90
Switch output
enabling range
Designates controlling numbers of switch
output by the switch output enabling signal.
The number of switch is enabling from 1 to
the setting value.
If 0 is set, this function would be disabled, and
the "switch output" would be output according
to the setting value.
VS-5F(-1):
0 to 24
VS-5FD(-1):
0 to 24
VS-5FX(-1):
0 to 40
0
8-1-1
8-1-3
“Switch output enable” input
Switch output
T2
T1
OFF (H)
ON (L)
Switch output: enable
All OFF (H) All OFF (H)
