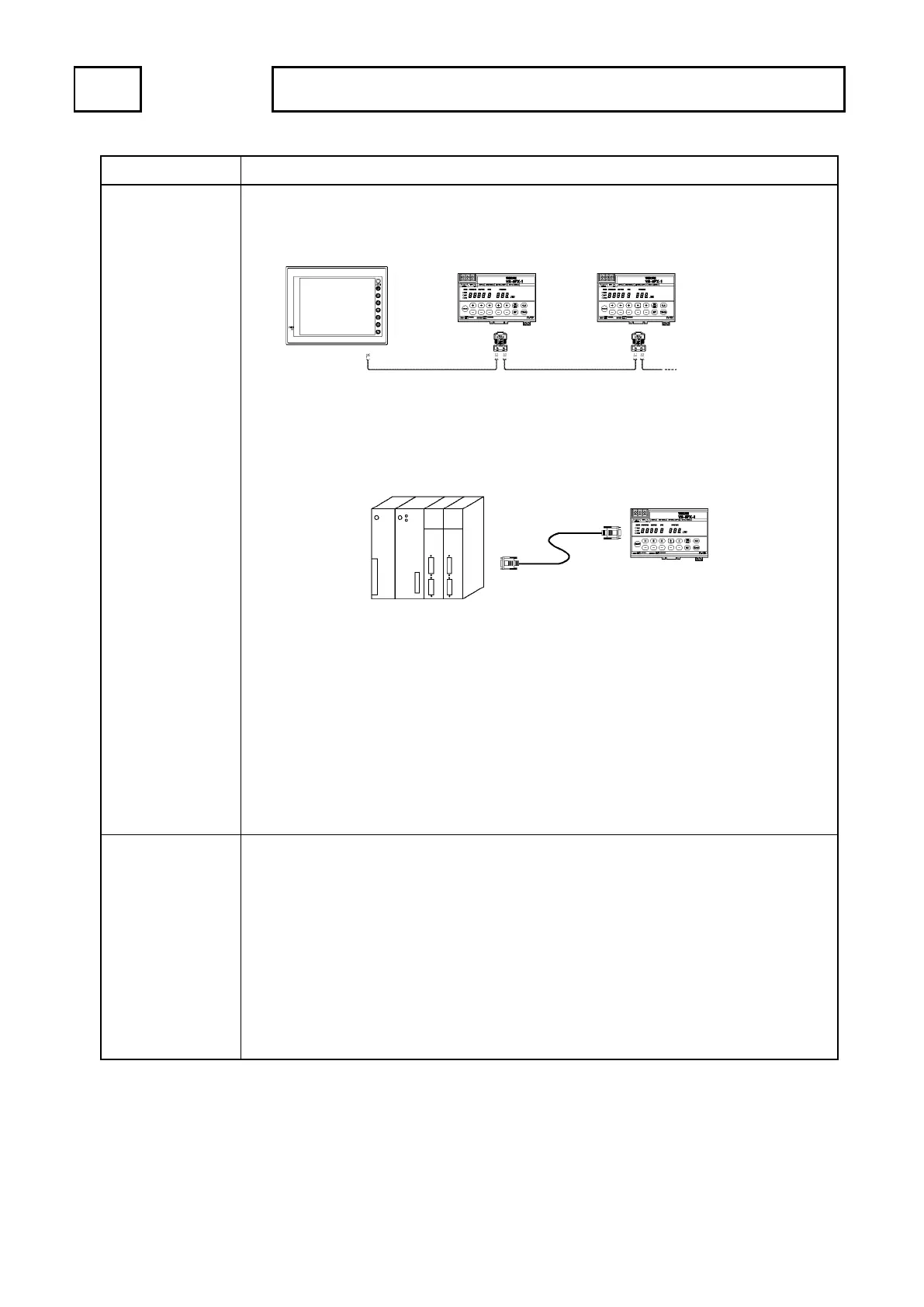

SUMMARY 1. SUMMARY
Function Description
Serial
communication
(3) Connectable with Touch Panel (VARIMONI)
VARICAM setting data is able to read, edit, write, and print by using the TouchPanel.
Touch Panel can control centrally maximum 16 units of VARICAM.
(4) Connectable with programmable controllers (PLC) which are made by Mitsubishi Electric
Co. or OMRON Corporation.
(5) RS-232C communication
Connecting with a personal computer or programmable controller (PLC), data is able to read,
edit, write, and print by a communication program that is made by the customer.
VS-5F Series supports existing communication protocol of VS-5E Series.
For more details regarding the serial communication, please contact your NSD representative.
Password
This function is applied to all models that are written "SP1" in the lower right portion of the front
panel.
This is the function to ask inputting the password when the mode of VARICAM changes form
the operation (RUN) mode.
Customers can pick and set the password which consists of 3 digits of numeric values.
The mode cannot be changed without the password after setting numbers; therefore, the value
of “switch setting” and “parameter setting” can be protected. It can also be protected from
changing the program No. from panel side.
If the password is not set, the mode could be changed by conventional operation.
Refer to “APPENDIX-1. PASSWORD FUNCTION” for the setting.
PLC
VARICAM
RS-232C, RS-422
Cable
Communication cable Communication cable
Distribution
adapter
Connectable max. 16 units by
multi-drop connection
Touch Panel VARICAM
