INTRODUCTORY 6. WIRING and CONNECTION
6-2. Connection between VARICAM and ABSOCODER
Describes about the connection of VARICAM and ABSOCODER.

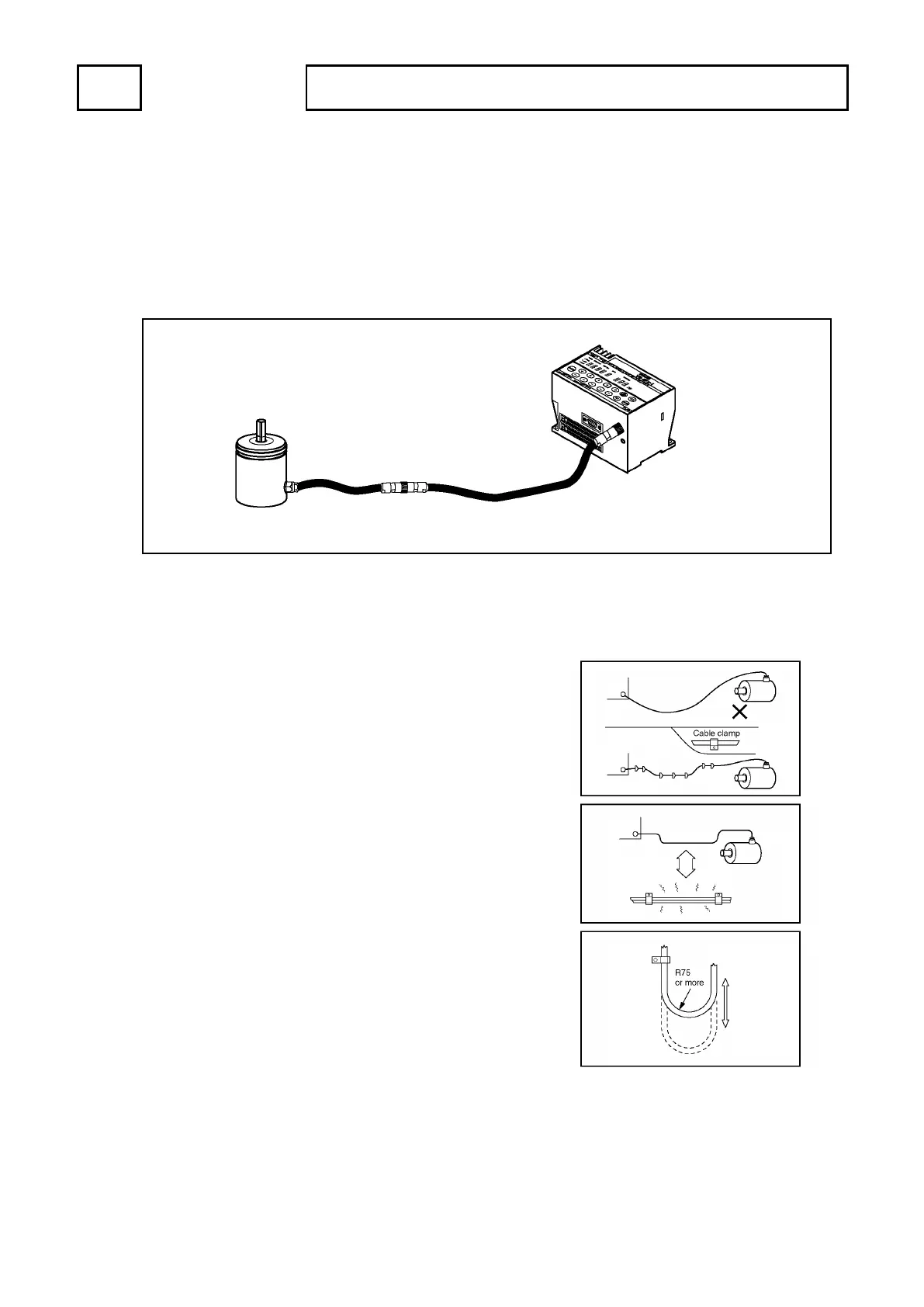

●Cable connection
ABSOCODER is equipped with a 2-meter cable. If a length is required, the dedicated extension sensor cable
of special must be used. The maximum extensible length is 100m.
●Wiring precautions
(1) The sensor cable should be clamped as shown
in the right figure to prevent excessive tension from
being applied to the cable connectors.
(2) The sensor cable should be located at least 300mm
away from power lines and other lines which generate
a high level of electrical noise.
(3) If the cable is moved under the state of bending
like a horseshoe, a robotic cable should be used.
The bend radius should never be less than 75 mm.
ABSOCODER VARICAM
2m Extension sensor cable
or more
To Next Page
