OPERATION 7. HOW TO USE BASIC FUNCTION
POINT
The value can fast-forward when [+] or [-] key of POSITION is kept pressing.
7-5-5. Sets the Current Position Value
If the machine cannot move to origin point position, this setting will be used.
The machine position value should be input by the key. Match the current position value on VARICAM’s display
and the machine position.
Minimum setting unit is 0.5°.
Sets the current position value according to the following procedures.
[ 1 ] Checks VARICAM and ABSOCODER are connected.
If VARICAM and ABSOCODER are not connected, VARICAM will detect the sensor error (u08). Therefore,
the origin point is impossible to set.
[ 2 ] Sets the parameter by the following procedures.
Selects the parameter No. 98.
Selects “98” by pressing [+] or [-] key of SW / PRM.
Inputs the machine’s current position value.
Inputs the value by pressing [+] or [-] key of POSITION.
Inputting value blinks on the POSITION display area.
Setting range: 0 to 359.5°
If [CLR] key is pressed in this timing, the inputting value
will be canceled.
Enters the current position value.
Presses [SET] key, and then POSITION display area
turns ON.
The current position value setting is completed.
Setting example

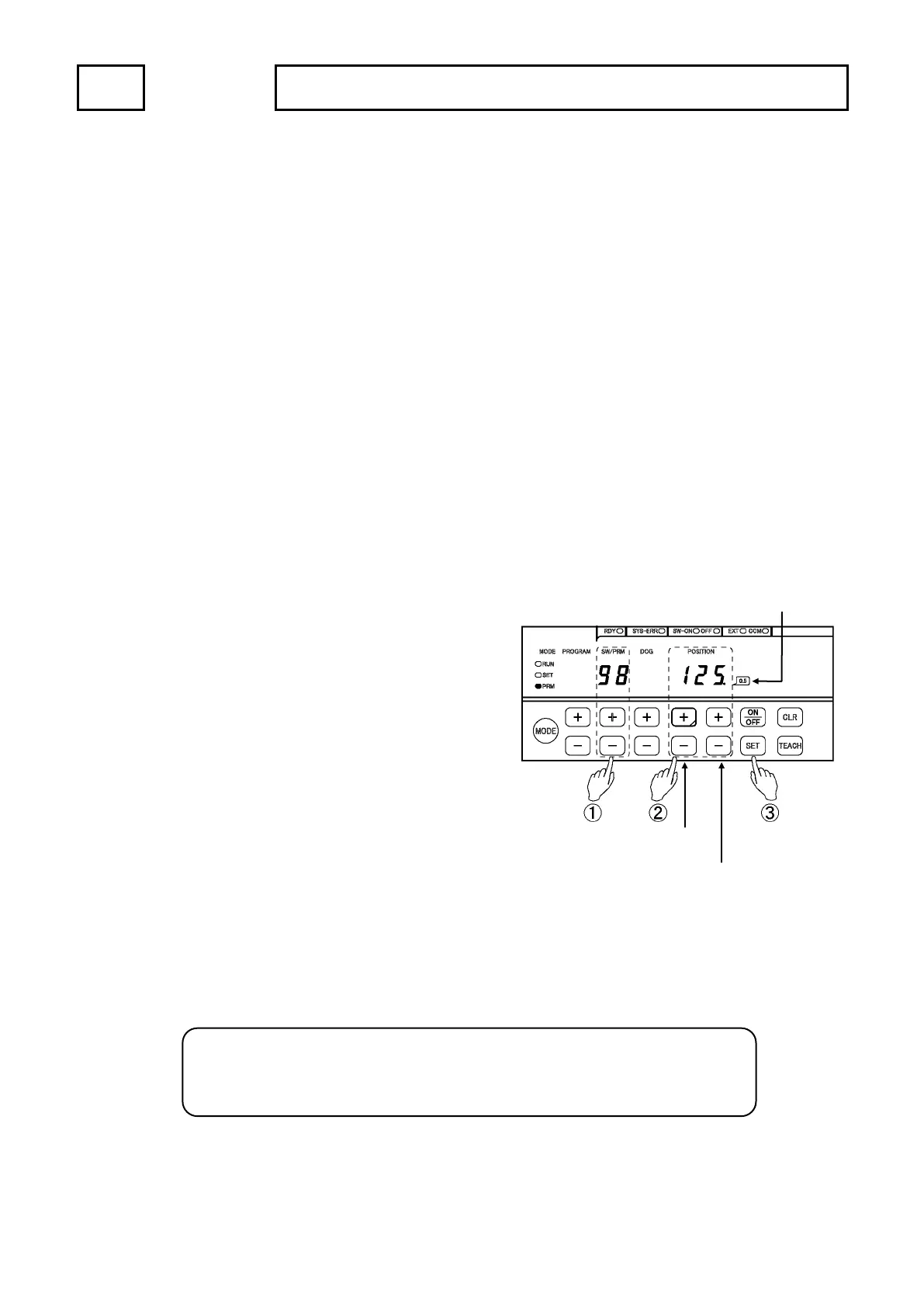

Below figure is an case that is input “125.5°”
by 10°
units
by 0.5°
°
Decimal point is ON : 0.5°
Decimal point is OFF : 0.0°
