OPERATION 8. HOW TO USE APPLIED FUNCTIONS (PARAMETER)

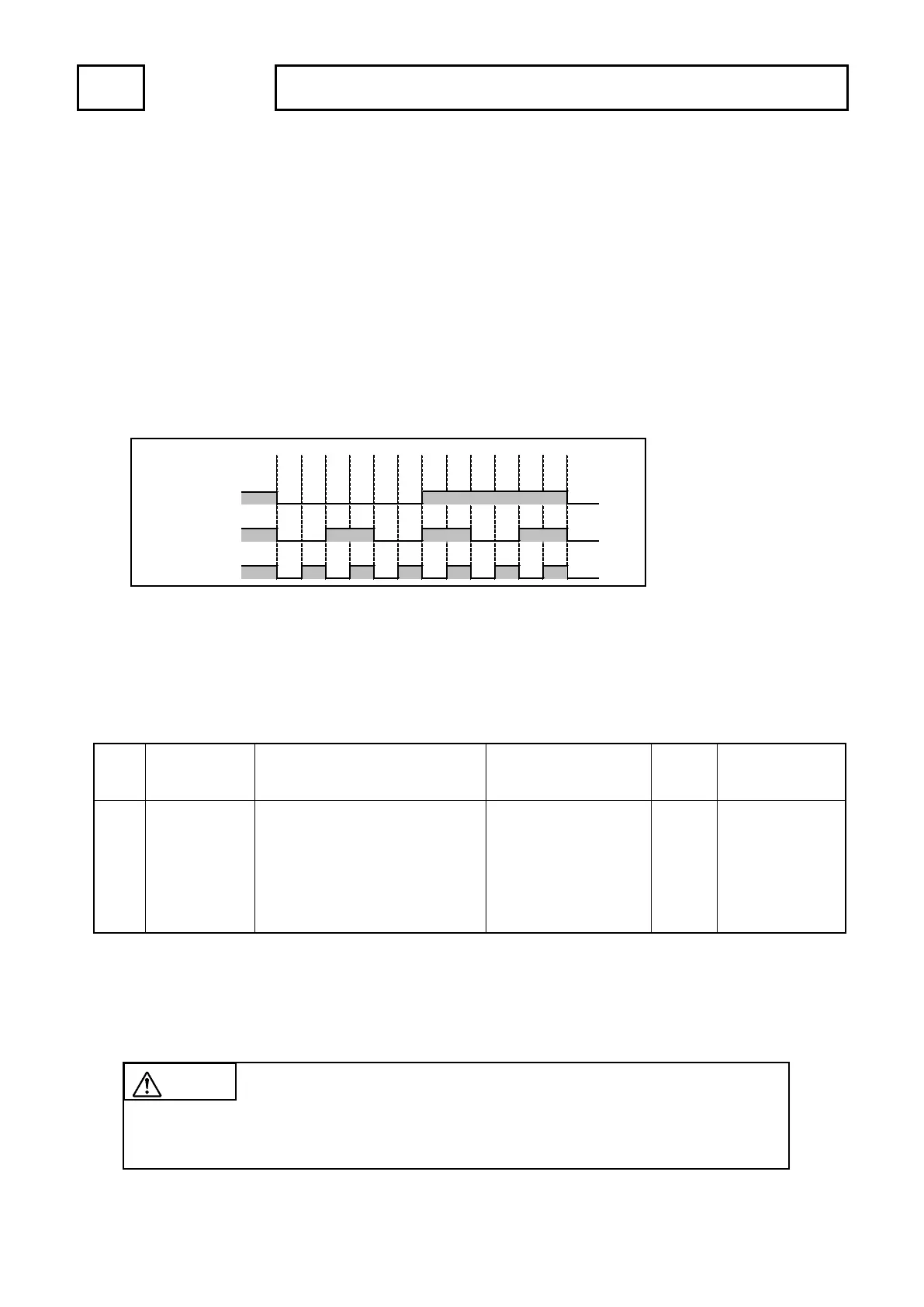

8-4. Timing Pulse Function
This function is applicable with all VS-5F Series.
The timing pulse function is used for detecting the rotation speed. Outputs a pulse which is equally divided single
rotation of the machine (ABSOCODER).
ON / OFF signal that is equally divided single rotation outputs to connector below.
VS-5F(-1) : A5 pin of the switch output connector
VS-5FD(-1) : A5 pin of the switch output connector, B11 pin of the BCD output connector
VS-5FX(-1) : B11 pin of the BCD output connector
The pulse number can be selected from 60, 180, and 360 per revolution by the parameter 93 (Timing pulse).
Current position value 359.5 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5
Timing pulse output ON
（60 pulse） OFF
Timing pulse output ON
（180 pulse） OFF
Timing pulse output ON
（360 pulse） OFF
● Parameter list
No. Name Description Setting range
Initial
value
Reference for
setting procedure
(Chapter No.)
93
Timing pulse
Changes the timing pulse and motion
detection switch function.
Timing pulse function is selecting
number of output pulses per revolution.
0: 360 pulses
Display: 360
1: 180 pulses
Display: 180
2: 60 pulses
Display: 60
3: Motion detection switch
Display: Spd
0
8-1-1
8-1-2
CAUTION
If “timing pulse” is selected by the parameter No. 93 (Timing pulse), “motion detection switch”
function cannot be used.
