NTI TRX199C - Page 41

41
Part 1 - General Safety Information Part 5 - Venting
NOTE: These drawings are meant to demonstrate system venting only. The installer is responsible for all equipment and detailing required by local
codes.

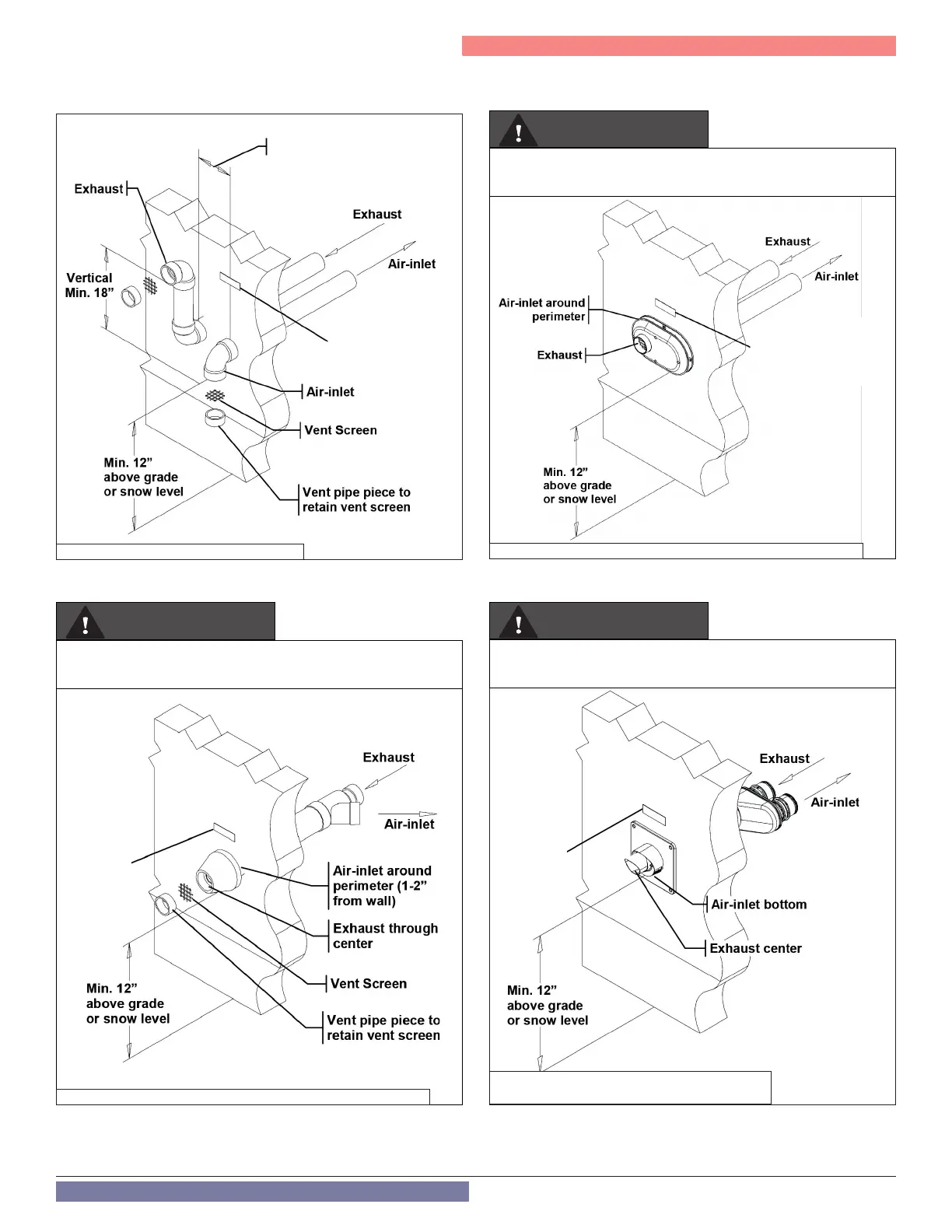

Sidewall Venting Options - Direct Vent Installation
Two Pipe Termination
Low Prole Termination
Concentric Termination
Gas Vent Directly
Below Keep Free of
Obstructions
Gas Vent
Directly
Below Keep
Free of
Obstructions
Gas Vent
Directly
Below Keep
Free of
Obstructions
Gas Vent
Directly
Below Keep
Free of
Obstructions
4 in min.
Refer to documentation included with termination kit for complete
installation instructions.
Refer to documentation included with termination kit for complete
installation instructions.
Refer to documentation included with termination kit for complete
installation instructions.
WARNING
WARNING
WARNING
Figure 26 - Two Pipe Sidewall Venting Detail
Figure 28 - Sidewall Concentric Termination (with Optional IPEX kit)
Figure 27 - Low Prole Sidewall Termination (with Optional IPEX Kit)
Figure 29 - Sidewall Concentric Termination
(with Optional Duravent / InnoFlue Kit)
