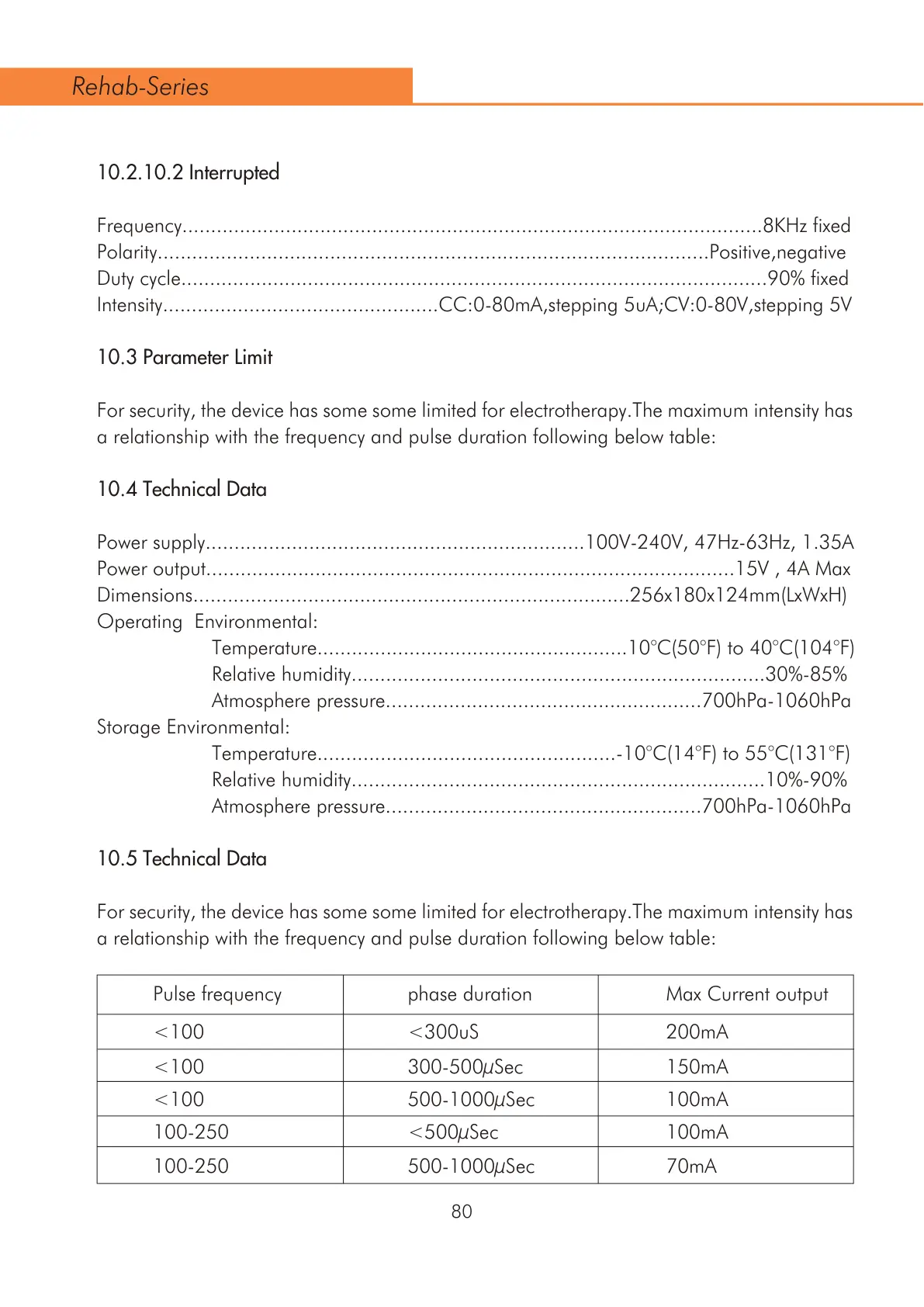

10.2.10.2 Interrupted
Frequency.....................................................................................................8KHz fixed
Polarity................................................................................................Positive,negative
Duty cycle......................................................................................................90% fixed
Intensity................................................CC:0-80mA,stepping 5uA;CV:0-80V,stepping 5V
10.3 Parameter Limit
For security, the device has some some limited for electrotherapy.The maximum intensity has
a relationship with the frequency and pulse duration following below table:
10.4 Technical Data
Power supply..................................................................100V-240V, 47Hz-63Hz, 1.35A
Power output............................................................................................15V , 4A Max
Dimensions............................................................................256x180x124mm(LxWxH)
Operating Environmental:
Temperature......................................................10°C(50°F) to 40°C(104°F)
Relative humidity........................................................................30%-85%
Atmosphere pressure.......................................................700hPa-1060hPa
Storage Environmental:
Temperature....................................................-10°C(14°F) to 55°C(131°F)
Relative humidity........................................................................10%-90%
Atmosphere pressure.......................................................700hPa-1060hPa
10.5 Technical Data
For security, the device has some some limited for electrotherapy.The maximum intensity has
a relationship with the frequency and pulse duration following below table:
80
Rehab-Series
Pulse frequency phase duration Max Current output
<100 <300uS 200mA
<100 300-500µSec 150mA
<100 500-1000µSec 100mA
100-250 <500µSec 100mA
100-250 500-1000µSec 70mA
