Nuga N6 - Product Components and Functions; Key Components: Lock, Heater, Pad, Power; Functional Units: Projectors, Controller, Legs

10
N6
11
Names and Functions of Product
Press the button to release the folder lock in order to fold or open the device.
You can set the lock to operate automatically to prevent damage to the device during transport.
The heating effect was enhanced by incorporating Tourmanium with the heating element for the arms and
lower legs, which applies a certain amount of heat on the body for alleviation of muscle pain.
② Auxiliary heating part
④ Power supply and
connector
This connects the external projector and low-frequency pad with the main body.
⑤ External projector
(or Abdomen heating pad)
and basket
③ Low frequency pad
The internal projectors are designed to move to the cervical, thoracic and lumbar vertebrae for uniform
distribution of acupressure on the entire body. A separate element has been installed for continuous application
of acupressure on the cervical vertebral region. In addition, the specially designed guard rail, which can be
used semi-permanently by minimizing the driving load, minimizes friction between the internal projector and rail.
Therefore, there are only few noises.
⑧ Internal projector
The external heating element and abdominal heating pad were designed to fit one hand and they are easy to
use. When not in use, they can be stored in a basket.
⑥ Controller and
flexible arm
Easy-to-use UI is applied to the controller with a sophisticated design. An all-in-one flexible arm, can be
adjusted to the desired angle. When not in use, rotate it 90° on the rack to prevent damage to the controller.
The heat-treated, high-strength frame is highly durable, and when not in use, the legs can be folded for storage
in confined spaces.
⑦ Foldable legs

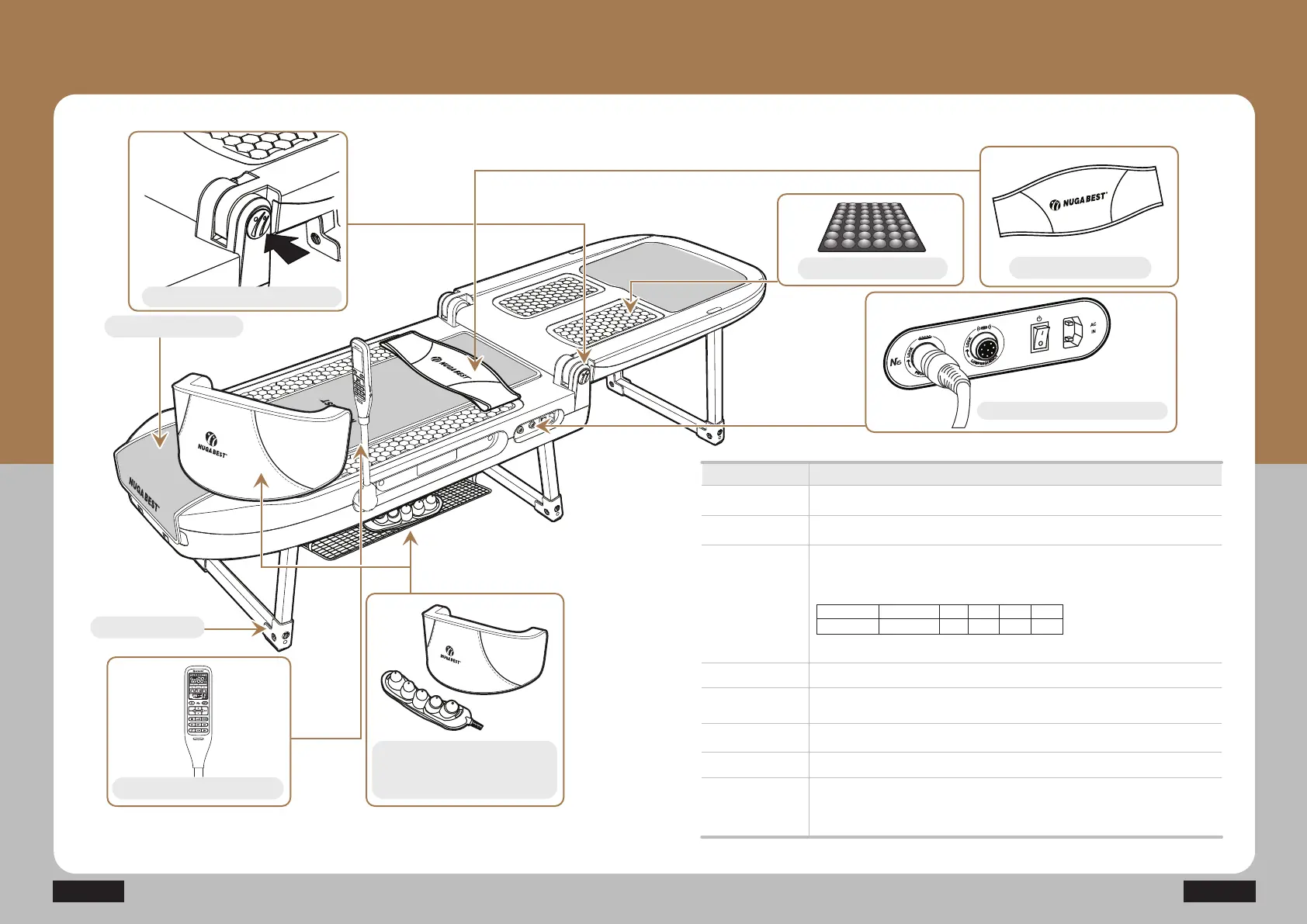

Name Function
① Folder lock release
button
⑧ Internal projector
⑦ Foldable legs
⑤ External projector
(or Abdomen heating pad)
and basket
② Auxiliary heating part
④ Power supply and connector
③ Low frequency pad
⑥ Controller and flexible arm
① Folder lock release button
Product Introduction
Low frequency pad has various functions including the relief from pain, etc.
- maximum output voltage : 55Vp-p
- Pulse width : 120㎲,340㎲
- operating time : 40min
- output voltage
- maximum current : less 12㎃ and less
- output frequency : 2Hz, 4Hz, 8Hz, 10Hz, 20Hz, 40Hz, 80Hz ± 10%
output strength
output voltage
0 step
5 step 10 step 15 step 20 step
1Vp-p and less 16Vp-p 28Vp-p 40Vp-p 52Vp-p
